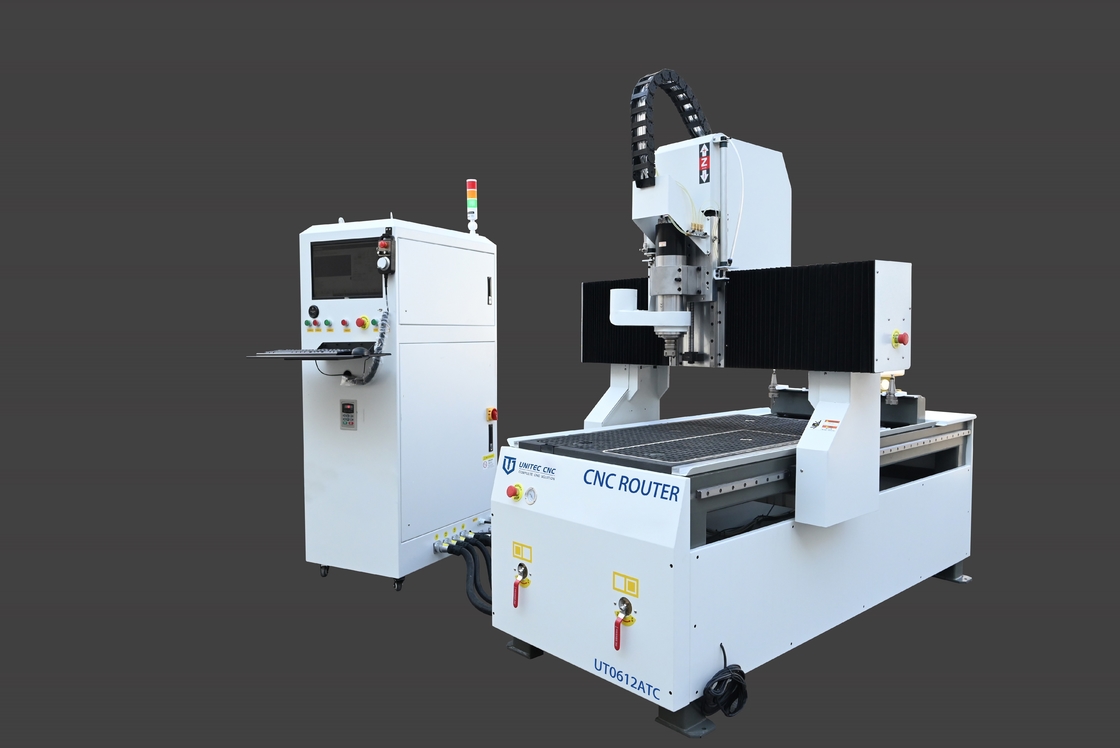

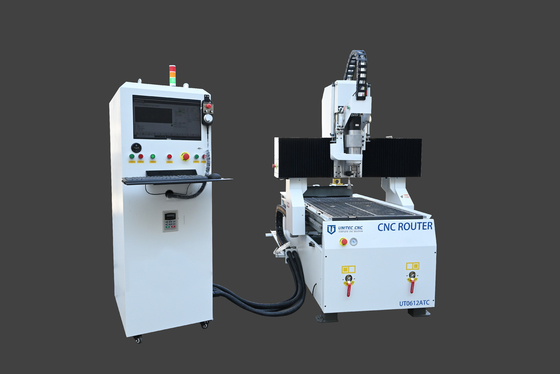

Taiwan TBI Ball Screw Mini CNC Router Machine Linear Guide With Linear ATC

Taiwan TBI Ball Screw Mini CNC Router Machine Linear Guide With Linear ATC
Taiwan TBI Ball Screw Mini CNC Router Machine Linear Guide With Linear ATC Taiwan TBI Ball Screw Mini CNC Router Machine Linear Guide With Linear ATC

Large Image :  Taiwan TBI Ball Screw Mini CNC Router Machine Linear Guide With Linear ATC

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT0612ATC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Plywood+steel pipe
Supply Ability: 100 units per month
Detailed Product Description
Working Size: 600mm X 1200mm Spindle: 5.5kw China Air Cool ATC Spindle
Table: Vacuum Table Tool Changer: Linear ATC
Motor: Japan Yaskawa Servo Controller: Ncstudio
High Light:

Mini CNC Router With Linear ATC

,

Linear Guide Mini CNC Router Machine

,

Taiwan TBI ball screw CNC Router

Description

This is a mini cnc machine with cnc tool changer function. CNC atc tool changer adopting the linear tool changer with fast speed tool change, and the tool change can be realized in a few seconds, which greatly improves the production efficiency.



Features

1. Materials that can be processed include acrylic, two-color board, PVC, ABS board, stone and other materials.

2. With a small footprint, it makes the machine more convenient to use and is especially suitable for the processing of small workpieces. 3. This cnc router tool changer adopting the linear tool changer with fast speed cnc tool change, which greatly improves the production efficiency.

4. Mini cnc machine the first choice for processing all kinds of signage fonts, various types of logos and trademarks.




XYZ Travel Size 680 X 1350 X 220mm
Max Working Size 600X1200X220mm
Table Size 680 X 1350 X 220mm
Transmission Type Taiwan TBI ball screw for XYZ
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 5.5KW China ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm
Max Travel Speed 10000mm/min
Max Work Speed 6000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio or Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 900KG
