Acrylic Wood MDF Plywood 150W CO2 Laser Cutting Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

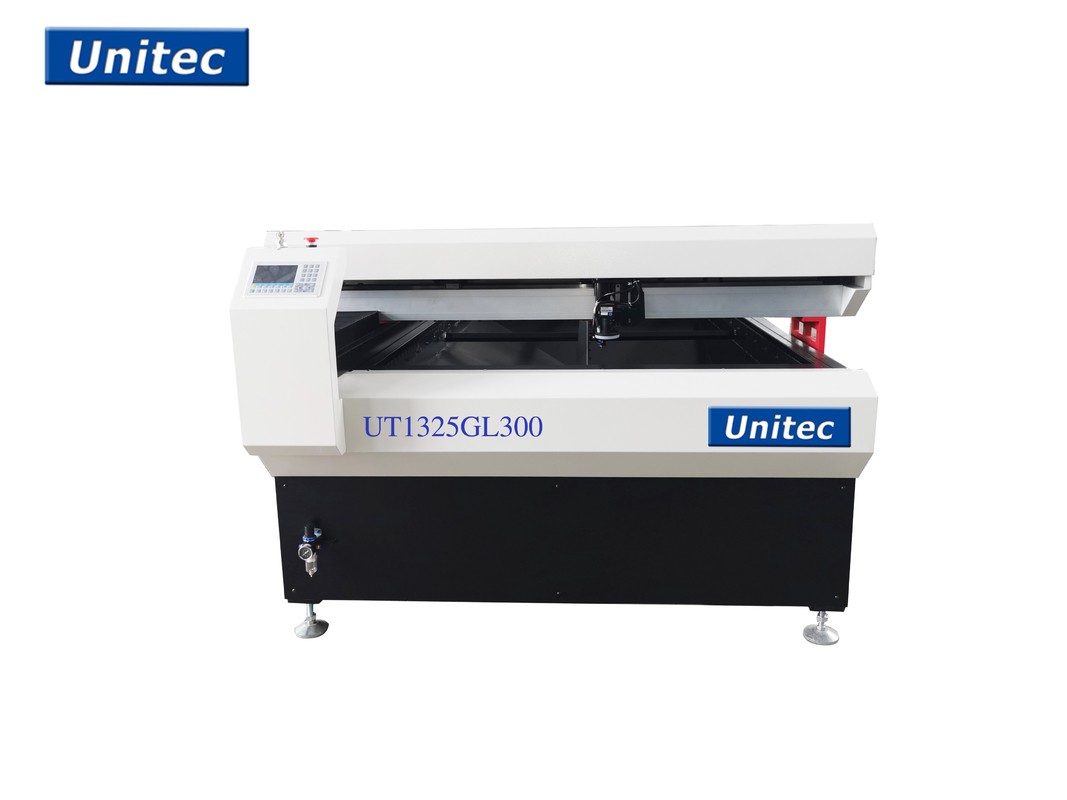

Acrylic Wood MDF Plywood 150W CO2 Laser Cutting Machine

Acrylic Wood MDF Plywood 150W CO2 Laser Cutting Machine
Acrylic Wood MDF Plywood 150W CO2 Laser Cutting Machine

Large Image :  Acrylic Wood MDF Plywood 150W CO2 Laser Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Max Table Loading Weight (kg): 200 Max Acrylic Cut Thickness(mm): 40
X\Y Repeat Location Accuracy(mm): ±0.005 Voltage (50/60Hz): 220V Single Phase
Max Location Speed (m/min): 20 X\Y Location Accuracy(mm/m): ±0.025
Total Power Consumption: 2KW Assistant Cutting Air Pressure (MPa): 0.6
High Light:

Unitec CO2 Laser Cutting Machine

,

UT1325CL150 CO2 Laser Cutting Machine

,

150W Plywood Laser Cutting Machine



Acrylic Wood MDF Plywood 150W CO2 Laser Cutting Machine 0



UT1325CL150 Acrylic/Wood/MDF/Plywood/PVC Cutting 1325 Laser Cutting Machine 150W



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



Item Description Marks
Working Size X:1200mmY:900mm Machine body produced by high accuracy machine center
Laser Cutting Head High Accuracy Head with quick loading function With Double Focus system



Mechanical Driving System

X/Y Ball Screw Taiwan TBI
X/Y/Z Linear Guide Taiwan TBI
Special Cool System

Compressor Overloading Alarm

Temperature Overheat Alarm

Temerature Control Accuracy ±0.5℃



Guangzhou Teyu

Motion Control System Off line Control Ruida
X ,Y Servo Driver MR-JE-40A Japan Mitsubishi
Z driver DMD-402A LEETRO
Main Contactor LS Imported from Korea
Origin Switch PANASONIC Japan Panasonic





Laser Tube Power (W) 150W
Laser Beam Quality M2≤1.1
Working Size(mm) 1200×900mm
Max Table Loading Weight (kg) 200
Max Acrylic Cut Thickness(mm) 40
Max Location Speed (m/min) 20
XY Location Accuracy(mm/m) ±0.025
XY Repeat Location Accuracy(mm) ±0.005



Travel Size



X-(mm) 1200
Y-(mm) 900
Z-(mm) 40
Voltage (50/60Hz) 220V single phase
Total Power Consumption 2KW
Assistant Cutting Air Pressure (MPa) 0.6



Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.






Acrylic Wood MDF Plywood 150W CO2 Laser Cutting Machine 1Acrylic Wood MDF Plywood 150W CO2 Laser Cutting Machine 2Acrylic Wood MDF Plywood 150W CO2 Laser Cutting Machine 3Acrylic Wood MDF Plywood 150W CO2 Laser Cutting Machine 4
