18000rpm 1600X3000mm UT1530P EPS Mold Styrofoam CNC Router

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

18000rpm 1600X3000mm UT1530P EPS Mold Styrofoam CNC Router

18000rpm 1600X3000mm UT1530P EPS Mold Styrofoam CNC Router
18000rpm 1600X3000mm UT1530P EPS Mold Styrofoam CNC Router

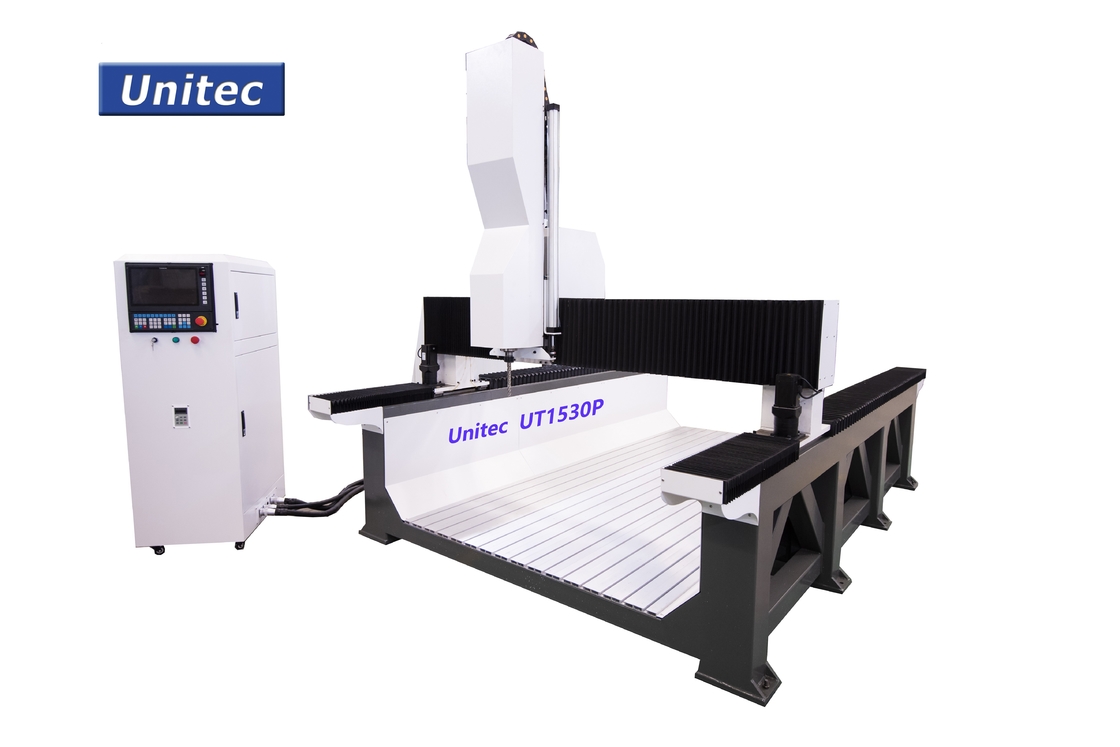

Large Image :  18000rpm 1600X3000mm UT1530P EPS Mold Styrofoam CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1530P

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
XYZ Travel Size: 1550X3050X850mm Max Working Size: 1500X3000X800mm
Table Size: 1600X3000mm Transmission Type: XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: T-Slot
Spindle Power: China Air Cool Spindle Or 5.6KW Italy Air Cool Spindle Pindle Speed: 18000rpm
High Light:

UT1530P Styrofoam CNC Router

,

1600X3000mm Styrofoam CNC Router

,

UT1530P CNC Foam Milling Machine

Ut1530p Excellent Quality 1530 Eps Mold Styrofoam Engraving Cnc Foam Milling Machine



Applications and Materials

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.



3. Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials


Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.



XYZ Travel Size 1550X3050X850mm
Max Working Size 1500X3000X800mm
Table Size 1600X3000mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T-Slot
Spindle Power China air cool spindle or 5.6KW Italy Air cool spindle
pindle Speed 18000rpm
Max Travel Speed 30000mm/min
Max Work Speed 20000mm/min
Motor servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio/ShanL
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 2000KG
Overall Dimension 2200X3500X2400mm
