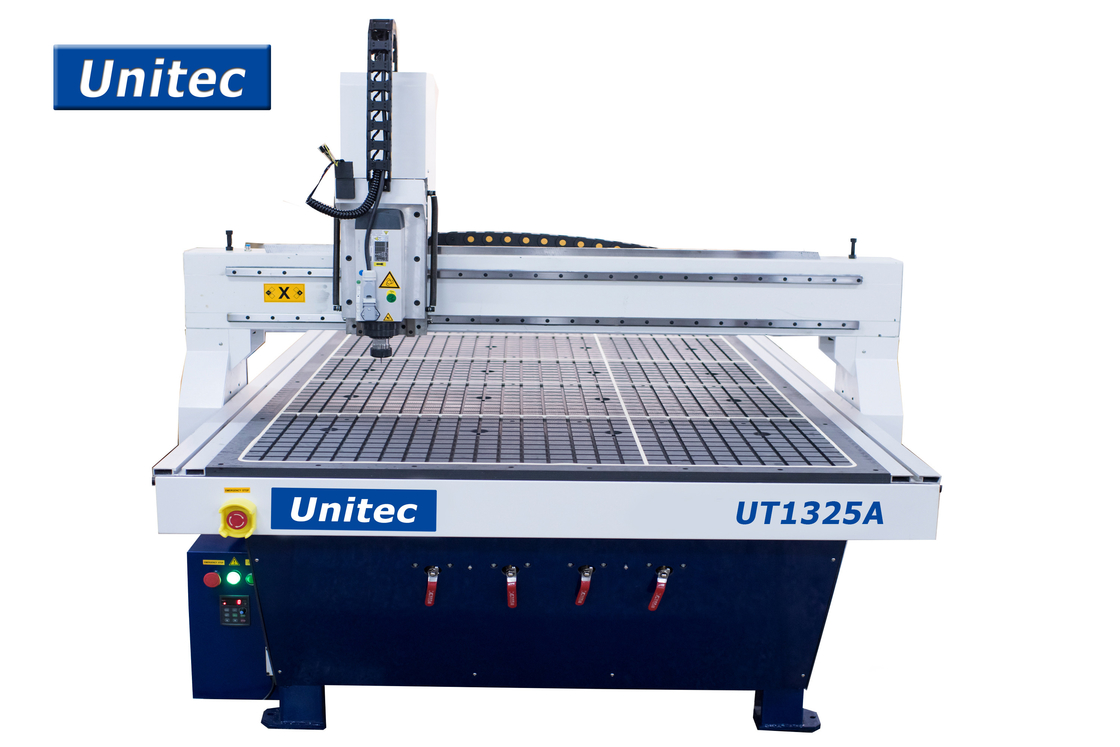

Linear Guide 20000mm/Min 1300KG Woodworking CNC Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

Linear Guide 20000mm/Min 1300KG Woodworking CNC Router Machine

Linear Guide 20000mm/Min 1300KG Woodworking CNC Router Machine
Linear Guide 20000mm/Min 1300KG Woodworking CNC Router Machine

Large Image :  Linear Guide 20000mm/Min 1300KG Woodworking CNC Router Machine

Product Details:

Place of Origin: Unitec
Brand Name: Unitec
Certification: ce
Model Number: UT1325A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case for outer packing
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
XYZ Travel Size: 1320X2520X150mm Max Working Size: 1300X2500X120mm
Table Size: 1400X2500mm Transmission Type: XY/Z XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Style: Vacuum Table
Spindle Speed: 18000rpm/24000rpm Max Travel Speed: 20000mm/min
High Light:

1300KG Woodworking CNC Router Machine

,

20000mm/Min Woodworking CNC Router Machine

,

20000mm/Min cnc woodworking machine

UT1325A CNC Router for Selling CNC Wood Router Machine Furniture Machine



♦ It can be used for 2D&3D engraving and cutting hard wood, rosewood, insulation, plastic and chemical, PCB,PP, PE, PVC, MDF, acrylic, aluminium, brass and so on.

♦ It is qualified for mass-producing funiture with the vacuum holding table and dust collector.



Applications and Materials

  1. Furniture Industry: wood door cabinet classic furniture panel furniture etc
  2. Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice Furniture Closet,etc
  3. PVC Crafts Industry: solid wood artificial stone marble sandstone aluminum composite panel bamboo soft metal PVC acrylic double color board, etc

Technical parameters

XYZ Travel Size 1320X2520X150mm
Max Working Size 1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Style Vacuum Table
Vacuum Pump

7.5KW/4.8KW

7.5KW water recycle pump/ 4.8kw air cool pump

Spindle Power 4.5KW/5.6EL; 4.5kw China Air Cool Spindle/ 5.6KW Italy Air Cool Spindle
Spindle Speed 18000rpm/24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 15000mm/min
Motor /; China Easy Servo/ Stepper motor
Work Voltage AC380V 50HZ
Control System /DSP ; Ncstudio/ DSP
Processing Accuracy 0.05mm
Repeat Positioning Accuracy 0.01mm
File Format G/PLT; G code or PLT
Overall Weight 1300KG
Overall Dimension 1950X3000X1600mm



  • Integral welded Frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
  • Various of table styles makes convenient clamping materials and improves overall production efficiency
  • Smooth bottom surface, clear edge contour and fine processing quality.
  • Main configurations adopts imported accessories which will ensure the overall running performance
  • CE Strict compliance with CE electrical standards for circuit design and production, and all
  • Parts have safe and reliable protection device.



Certificate

  • CE certificated for European countries

  • CCVO SONCAP certificated for Nigeria customers

  • FTA certificate for Pakistan customers

  • SASO certificate for Saudi Arabic customers

  • Form E certificate for Indonesia and Vietname customers

Packaging & Delivery



Packaging Details:

  • Outside package: Standard marine export plywood case.
  • Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.



Delivery Detail: Shipped in 25-30 working days after payment
