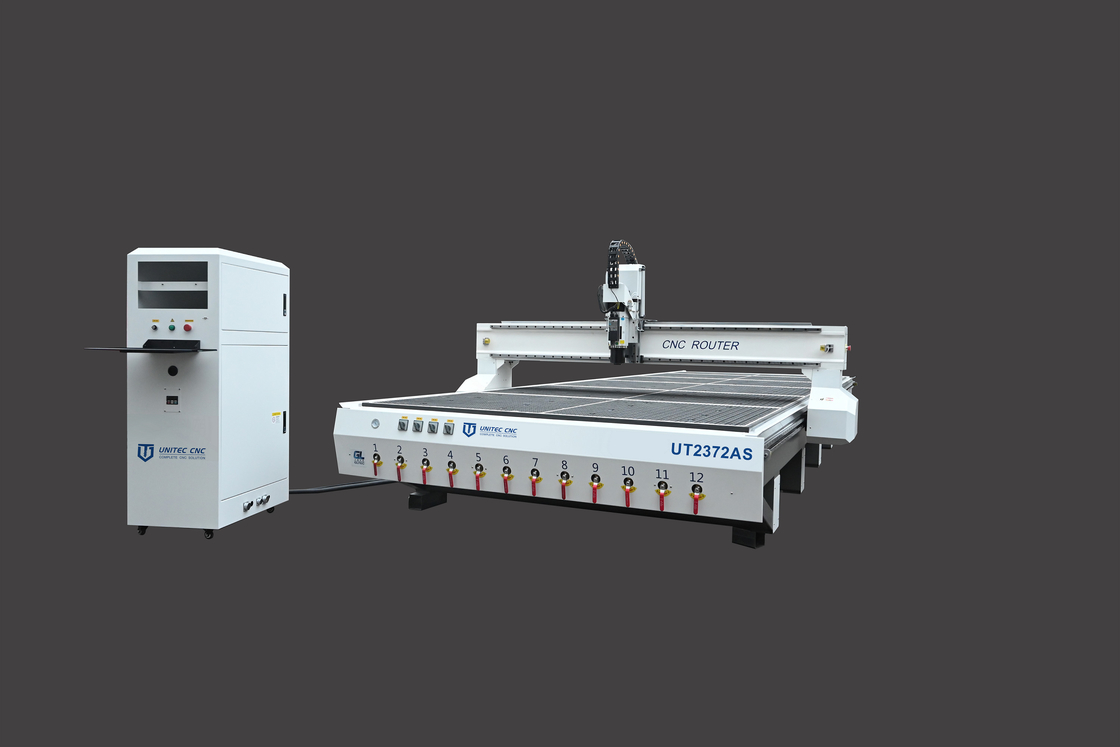

Large Format Woodworking CNC Router For Furniture 380V 3 Phases
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT2372A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Plywood + steel pipe |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Working Size: | 2320mm X 7200mm | Spindle: | 5.6kw Italy Elte |
|---|---|---|---|
| Table: | T Slots With Thick Aluminum Profile | Motor: | Hybrid Motor |
| Guide Rail: | Taiwan CSK | Controller: | Ncstudio |
| Cnc Or Not: | Yes | Voltage: | 380V 3 Phases |
| Power(w): | According To Your Order,12KW | Warranty: | 2 Years,24 Months |
| Control System: | DSP/NC Studio | Inverter: | Fuling Inverter,Delta Inverter |
| Software: | Ucancam / ArtCam / TYPE3 | ||
| High Light: | Woodworking CNC Router for Furniture,Large Format Woodworking CNC Router,3 phases Woodworking CNC Router |
||
Product Description
With the UT2372A CNC router, you get a number of features standard with the machine that you normally only get when you buy much more expensive CNC routers. It’s all because of Unitec unique manufacturing processes that keep high quality affordable.
The UT2372A features a heavy, all-steel tube frame that ensures durability. It also makes your CNC machine more rigid, which reduces vibration and improves routing quality. A three-axis motion control system gives you tight control over routing quality for precision and quality cutting your customers will love.
With our UT2372A you can cut a variety of materials, including plastic, wood, foam, and composite materials. While it can work for a wide variety of applications, the most common are for sign making, woodworking, and marine part fabrication.
| XYZ Travel Size | 2300X7200X220mm | |
| Max Working Size | 2300X7200X220mm | |
| Table Size | 2300X7200mm | |
| Transmission Type | XY rack/Z ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | Vacuum table | |
| Vacuum Pump | 7.5KW blower pump or 4.8KW air pump | |
| Spindle Power | 9KW China Air cool spindle / 5.6kw Italy Elte spindle | |
| Spindle Speed | 18000rpm | |
| Max Travel Speed | 30000mm/min | |
| Max Work Speed | 20000mm/min | |
| Motor | AC servo motor | |
| Work Voltage | AC380V 50HZ | |
| Controller System | Ncstudio or DSP | |
| Processing Accuracy | ±0.05mm | |
| Repeat Positioning Accuracy | ±0.01mm | |
| File Format | G code or PLT | |
| Overall Weight | 2200KG | |
| Overall Dimension | 2500X7500X1900mm | |
