24000rpm 4.5KW 1700X3000mm Woodworking CNC Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

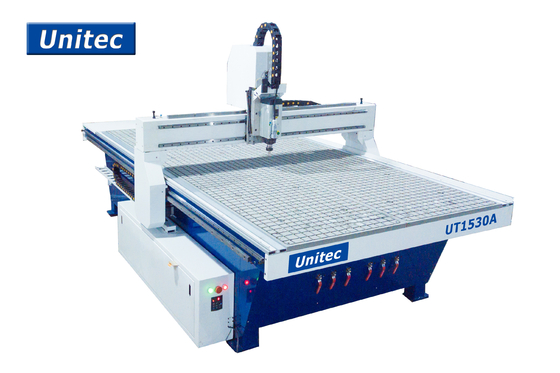

24000rpm 4.5KW 1700X3000mm Woodworking CNC Router Machine

24000rpm 4.5KW 1700X3000mm Woodworking CNC Router Machine
24000rpm 4.5KW 1700X3000mm Woodworking CNC Router Machine

Large Image :  24000rpm 4.5KW 1700X3000mm Woodworking CNC Router Machine

Product Details:

Place of Origin: Unitec
Brand Name: Unitec
Certification: ce
Model Number: UT1530A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case for outer packing
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
XYZ Travel Size: 1520X3020X150mm Spindle Power: 4.5KW/5.6EL 4.5KW China Air Cool Spindle Or 5.6kw Italy ELTE Air Cool Spindle
Guide Rail: Linear Guide Table Style: Vacuum Table
Max Working Size: 1500X3000X120mm Table Size: 1700X3000mm
Transmission Type: XY/Z XY Rack/Z Ball Screw Vacuum Pump: 7.5KW/4.8KW; 7.5KW Water Recycle Pump Or 4.8kw Air Cool Pump
High Light:

24000rpm Woodworking CNC Router Machine

,

4.5KW Woodworking CNC Router Machine

,

1700X3000mm wood router machine

UT1530A Woodworking Cnc Router Machine Cnc Woodworking Machine Woodworking Cnc Router Machine Furniture Industry





Product Uses
1. Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
2. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
3. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
4. Architectural models: engraving fine window, fencing and wall patterns, etc.
5. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
6. Label: engraving character, number, and other pattern on label for products and on product directly.
7. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.



Applications and Materials



  • Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
  • Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
  • PVC Crafts Industry: solid woodartificial stonemarblesandstonealuminum composite panelbamboosoft metalPVCacrylicdouble color board, etc



Technical parameters

XYZ Travel Size 1520X3020X150mm
Max Working Size 1500X3000X120mm
Table Size 1700X3000mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type Vacuum
Vacuum Pump 7.5KW/4.8KW; 7.5KW Water Recycle Pump or 4.8kw air cool pump
Spindle Power 4.5KW/5.6EL 4.5KW China Air Cool Spindle or 5.6kw Italy ELTE air cool spindle
Spindle Speed 18000rpm/24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 15000mm/min
Motor / China Easy Servo Motor or Stepper motor
Work Voltage AC380V 50HZ
Controller System /DSP Ncstudio or DSP
Processing Accuracy 0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 1600KG
Overall Dimension 2150X3500X1600mm



  • Integral welded Frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
  • Various of table styles makes convenient clamping materials and improves overall production efficiency
  • Smooth bottom surface, clear edge contour and fine processing quality.
  • Main configurations adopts imported accessories which will ensure the overall running performance
  • CE Strict compliance with CE electrical standards for circuit design and production, and all
  • Parts have safe and reliable protection device.



Certificate

  • CE certificated for European countries

  • CCVO SONCAP certificated for Nigeria customers

  • FTA certificate for Pakistan customers

  • SASO certificate for Saudi Arabic customers

  • Form E certificate for Indonesia and Vietname customers

Packaging & Delivery



Packaging Details:

  • Outside package: Standard marine export plywood case.
  • Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.



Delivery Detail: Shipped in 25-30 working days after payment
