2030 18000rpm 30000mm/Min 4 Axis CNC Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

2030 18000rpm 30000mm/Min 4 Axis CNC Router Machine

2030 18000rpm 30000mm/Min 4 Axis CNC Router Machine
2030 18000rpm 30000mm/Min 4 Axis CNC Router Machine

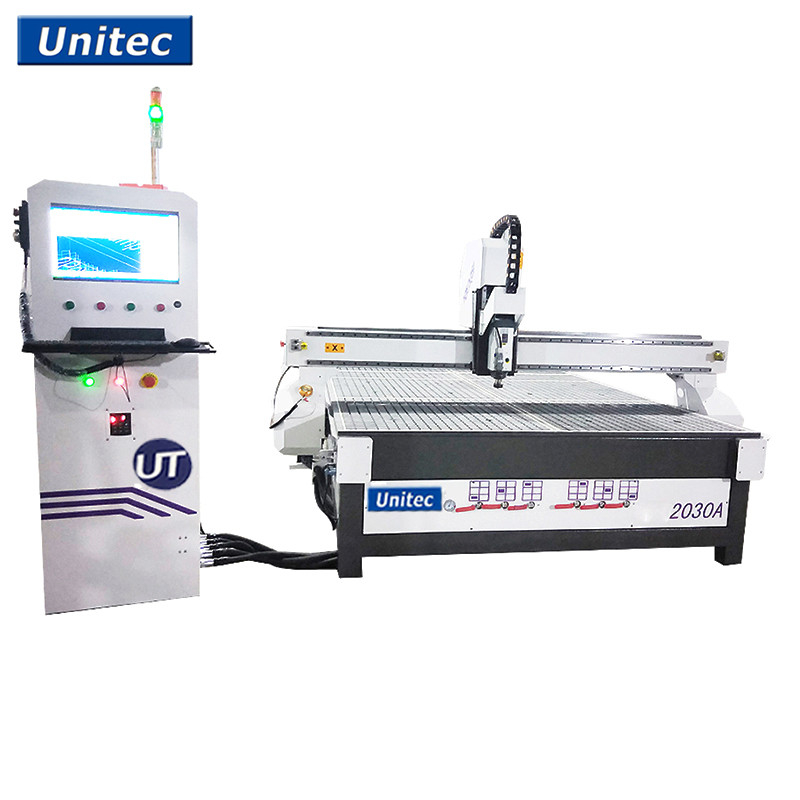

Large Image :  2030 18000rpm 30000mm/Min 4 Axis CNC Router Machine

Product Details:

Place of Origin: Unitec
Brand Name: Unitec
Certification: ce
Model Number: UT2030A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case for outer packing
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Max Work Speed: 20000mm/min Spindle Speed: 18000rpm
XYZ Travel Size: 2050X3050X200mm Table Size: 2050X3000mm
Max Travel Speed: 30000mm/min Transmission Type: XY/Z XY Rack/Z Ball Screw
Guide Rail: Linear Guide Spindle Power: 6KW/5.6EL China Air Cool Spindle Or 5.6KW Italy Air Cool Spindle
High Light:

30000mm/min 4 axis cnc router machine

,

18000rpm 4 axis cnc router machine

,

2030 4 axis cnc router machine

SIGN CNC 2030 Model 4 Axis CNC Router Machine With Rotating Spindle



Application and samples

  • Furniture industry: Solid wood furniture, solid wood door, wooden cabinet door, Paint-free door, composite gate cabinet, Board type furniture, office furniture, table and chair, door and window and Screen engraving.
  • Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
  • Wooden products processing: Wooden Speakers, wooden Clock, computer desk, wardrobe, Sports Equipment.
  • Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic
  • sheeting,PVCpipe, wooden planks and other non-metallic mold.
  • Musical instrument: 3D surface engraving and shape cutting for violin
  • Artwork line: Photo frame, jewelry box.
  • Electrical industry: PVB circuit board, insulation material, LED display screen.
  • Relief Sculpture and 3D Engraving & Cylindrical object.
  • Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
  • Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
  • PVC Crafts Industry: solid woodartificial stonemarblesandstonealuminum composite panelbamboosoft metalPVCacrylicdouble color board, etc

Technical parameters





XYZ Travel Size

2050X3050X200mm



Max Working Size

2000X3000X150mm
Table Size 2050X3000mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 6KW/5.6EL China air cool spindle or 5.6KW Italy Air cool spindle
Spindle Speed 18000rpm



Max Travel Speed

30000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System /DSP Ncstudio or DSP



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 2200KG
Overall Dimension 2500X3700X1900mm
  • Integral welded Frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
  • Various of table styles makes convenient clamping materials and improves overall production efficiency
  • Smooth bottom surface, clear edge contour and fine processing quality.
  • Main configurations adopts imported accessories which will ensure the overall running performance
  • CE Strict compliance with CE electrical standards for circuit design and production, and all
  • Parts have safe and reliable protection device.

Certificate

  • CE certificated for European countries

  • CCVO SONCAP certificated for Nigeria customers

  • FTA certificate for Pakistan customers

  • SASO certificate for Saudi Arabic customers

  • Form E certificate for Indonesia and Vietname customers

Packaging & Delivery



Packaging Details:

  • Outside package: Standard marine export plywood case.
  • Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.



Delivery Detail: Shipped in 25-30 working days after payment
