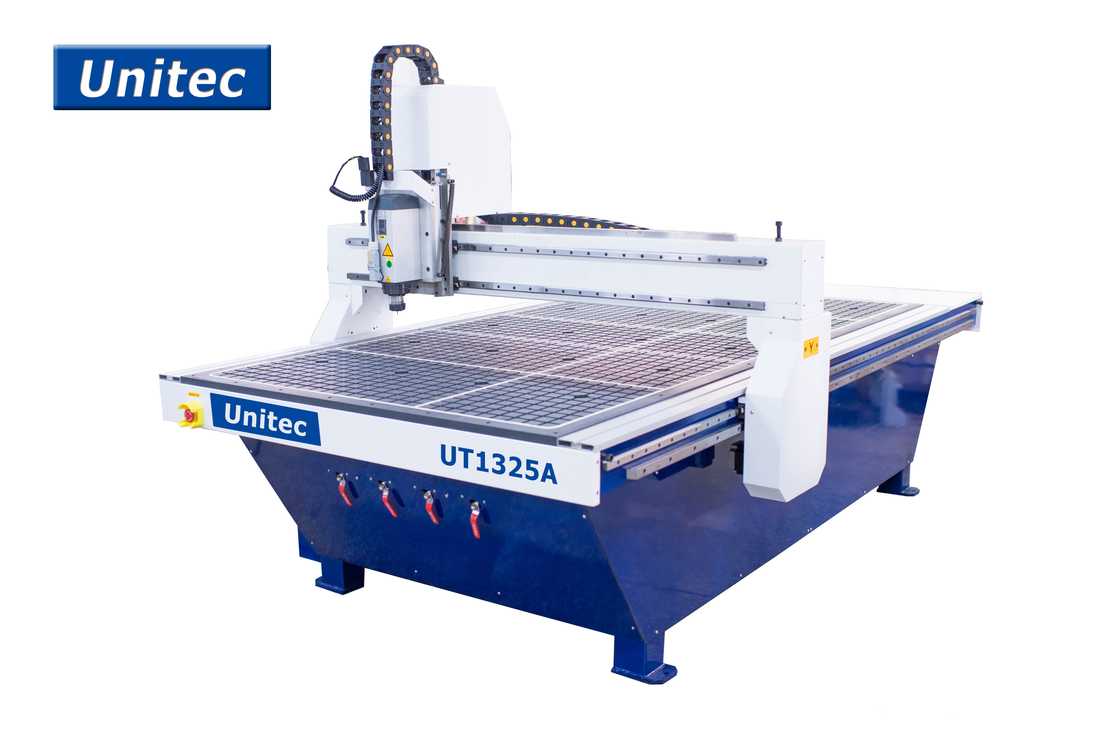

4X8 Woodworking CNC Router Machine For MDF solid wood ACP

4X8 Woodworking CNC Router Machine For MDF solid wood ACP

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Get Best Price Contact Now

Detail Information

Spindle Speed: 24000/18000rpm Max Working Size: 1300X2500X120mm
Table Size: 1400X2500mm Spindle Power: 3KW/5.6EL 3KW China Water Cool 5.6KW Italy Elte Spindle
Table Type: T Slot Transmission Type: XY/Z XY Rack/Z Ball Screw
Guide Rail: Linear Guide XYZ Travel Size: 1320X2520X150mm
High Light:

1.3mx2.5m Woodworking CNC Router Machine

,

4FTX8FT Woodworking CNC Router Machine

,

4X8FT CNC Engraving Cutting Machine

Product Description

1325 Wood Stair CNC Router Machine Small CNC Engraving Cutting Machine for Door Making



Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. mach3 controller with usb port. you can use your laptop to control machine



Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.



Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.



1. Durable Structure And Aluminum table
Cast iron lathe bed.Aluminum with PVCworking table Stable Running with less vibration.

2.  Strong Gantry Design

With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.

3. Large Power Water Cooling Spindle

Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate,iron plate engraving but also for woodworking.It can cut 20-30mm thickness acrylic by one time cutting.The fine engraving is more smoothly and clear by large power spindle.

4. Guide Rail And Transmission

XYZ three axis are with linear square guide rail,Hiwin,Taiwan.Ball screws transmission for all axis.Durable running with Higher accuracy.

5. Dust-Proof Design For XZ -Axis
Dust-Proof design for xZ-axis,protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.

6. Famous Motor And Driver

China famous leadshine steppermotor and Leadshine stepper driver for xYZ-axis,high precision, fast speed and more stable,dual motor Driven Y axis with traveling speed up to more than 10000mm/min.

7. Control System
Nc-studio control system,supporting xYZ-axis moving together, showing the processing path more convenient. Besides, we also have other optional controller,such as Mach 3, DSPA11E, etc.

8. High End Toolbox
Rationalized placement of the electronic parts Optimized heat dissipation effect.Adopt high quality electronic parts,minimizing fault rate, Adopt hi h flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.

9. Favorable Compatibility Softwares
Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.





XYZ Travel Size

1320X2520X150mm



Max Working Size

1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power

3KW/5.6EL 3KW China water cool

5.6KW Italy Elte spindle

Spindle Speed 24000/18000rpm
  Leyu Oscillating Head + CCD camera



Max Travel Speed

14000mm/min



Max Processing Speed

12000mm/min
Motor

Stepper or Servo

Work Voltage AC380V 50HZ



Controller System

Leyu Controller



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT; G code or PLT
Overall Weight 1100KG



Overall Dimension

1950X3000X1600mm





4X8 Woodworking CNC Router Machine For MDF solid wood ACP 04X8 Woodworking CNC Router Machine For MDF solid wood ACP 14X8 Woodworking CNC Router Machine For MDF solid wood ACP 24X8 Woodworking CNC Router Machine For MDF solid wood ACP 3
