Solid Wood Board 19.8kw 3mm Auto Edge Banding Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

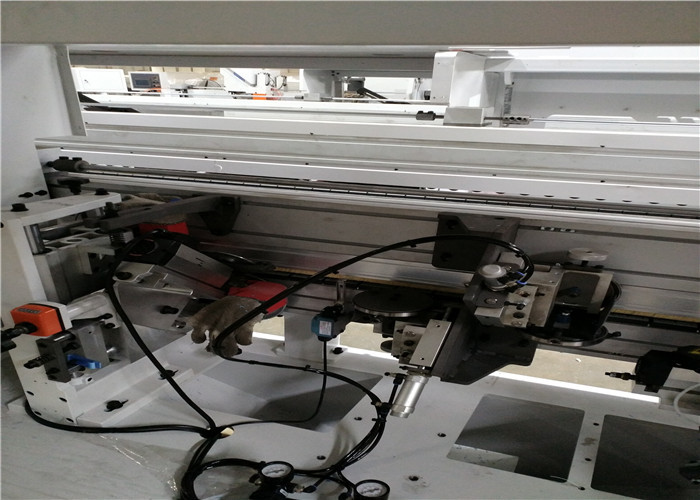

Solid Wood Board 19.8kw 3mm Auto Edge Banding Machine

Solid Wood Board 19.8kw 3mm Auto Edge Banding Machine
Solid Wood Board 19.8kw 3mm Auto Edge Banding Machine Solid Wood Board 19.8kw 3mm Auto Edge Banding Machine Solid Wood Board 19.8kw 3mm Auto Edge Banding Machine

Large Image :  Solid Wood Board 19.8kw 3mm Auto Edge Banding Machine

Product Details:

Model Number: HD761D
Detailed Product Description
Total Power: 19.8kw Overall Size: 8800×1000×1600mm
Edge Thickness: 0.4-3mm Panel Thickness: 10-60mm
Panel Length: ≥120mm Feed Speed: 14-20-23m/min
Panel Width: ≥60mm Min.work-piece Length(without Using Pri-miling): 120mm
High Light:

250mm Edge Banding Machine

,

19.8kw Industrial Edge Bander

,

3mm Edge Banding Machine

HD761D Automatic Pvc Edge Banding Machine Woodworking For Wood



This edge banding machine is suitable for straight edge banding of solid wood board, fiberboard, particleboard and other board workpieces, the edge sealing material can be solid wood strip, PVC, melamine, veneer, etc. Imported motor and high quality electrical components.Product serialization and diversified customer selection. High precision and efficiency.





Features: Automatic Pvc Edge Banding Machine Woodworking For Wood
1: New desIgn for the band clamping device, perfectly preventing the band from losing its track.
2: Four irregular cylindrical pinch rollers can entirely press the band firmly to the board.
3: Nonadjustment of the cutters of fine trimming & scraping units, pneumatically position, higher precision and higher productivity.



Automatic High Efficiency Edge Bander
Model HD761JD HD761J HD761 HD760J HD760
Electric lifting
Total power 19.8kw 16.1kw 12.1kw 15.9kw 11.5kw
Overall size 8800×1000×1600mm

8100×1000×1

600mm

7760×900×1600mm 6900×900×1600mm 5960×900×1600mm
Feed speed 14-20-23m/min 14-20-23m/min 14-20-23m/min 14-20-23m/min 14-20-23m/min
Edge thickness 0.4-3mm 0.4-3mm 0.4-3mm 0.4-3mm 0.4-3mm
Panel thickness 10-60mm 10-60mm 10-60mm 10-60mm 10-60mm
Panel length ≥120mm ≥120mm ≥120mm ≥120mm ≥120mm
Panel width ≥60mm ≥60mm ≥60mm ≥60mm ≥60mm
Min.work-piece length(without using pri-miling) 120mm 120mm
Min.work-piece length(using pri-miling) 250mm 250mm
Working pressure 0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa
Minimum sheet size 300(L)×50(W)mm
150(L)×150(W)mm
300(L)×50(W)mm
150(L)×150(W)mm
300(L)×50(W)mm
150(L)×150(W)mm
300(L)×50(W)mm
150(L)×150(W)mm
300(L)×50(W)mm



Advantages:

✺ Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.

✺ The gluing mechanism adopts a special structure to gelatinize the plates and costing materials unifiormly, ensure a more solid

conglutination.

✺ End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting

structure to ensure the cutting surface smoothly.

✺ Rough/Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency motor

fast cutting structure to ensure the trimming plates smoothly.

✺ Corner trimming unit is to make the board ending more smooth and aesthetic.

✺ Scraping unit for a perfect finishing of the applied edge.

✺ The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.✺ Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.

✺ The gluing mechanism adopts a special structure to gelatinize the plates and costing materials unifiormly, ensure a more solid

conglutination.

✺ End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting

structure to ensure the cutting surface smoothly.

✺ Rough/Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency motor

fast cutting structure to ensure the trimming plates smoothly.

✺ Corner trimming unit is to make the board ending more smooth and aesthetic.

✺ Scraping unit for a perfect finishing of the applied edge.

✺ The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.
