9.5kw Automatic Woodworking PVC Edge Banding Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

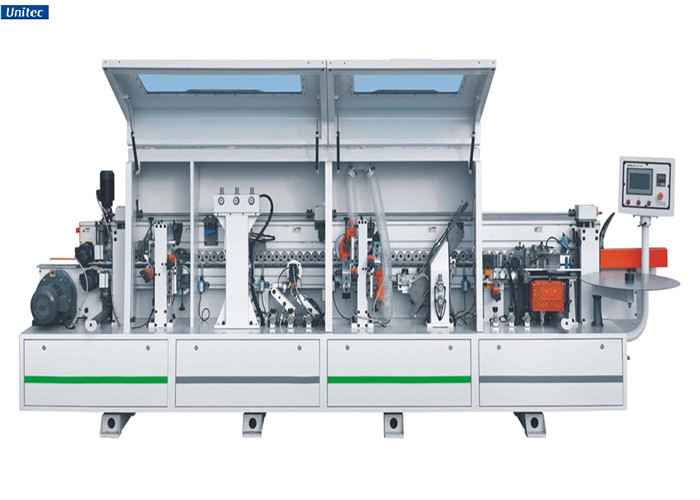

9.5kw Automatic Woodworking PVC Edge Banding Machine

9.5kw Automatic Woodworking PVC Edge Banding Machine
9.5kw Automatic Woodworking PVC Edge Banding Machine 9.5kw Automatic Woodworking PVC Edge Banding Machine 9.5kw Automatic Woodworking PVC Edge Banding Machine

Large Image :  9.5kw Automatic Woodworking PVC Edge Banding Machine

Product Details:

Model Number: UT610E
Detailed Product Description
Total Power: 9.5kw Overall Size: 5200×900×1600mm
Feed Speed: 14-20-23m/min Edge Thickness: 0.4-3mm
Panel Thickness: 10-60mm Panel Length: ≥120mm
Panel Width: ≥60mm Min.work-piece Length(without Using Pri-miling): 120mm
High Light:

0.6Mpa Edge Banding Machine

,

9.5kw Edge Banding Machine

,

HD611 Edge Banding Machine

UT610E Automatic Pvc Edge Banding Machine Woodworking For Wood



Advantages:

✺ Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.

✺ The gluing mechanism adopts a special structure to gelatinize the plates and costing materials unifiormly, ensure a more solid

conglutination.

✺ End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting

structure to ensure the cutting surface smoothly.

✺ Rough/Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency motor

fast cutting structure to ensure the trimming plates smoothly.

✺ Corner trimming unit is to make the board ending more smooth and aesthetic.

✺ Scraping unit for a perfect finishing of the applied edge.

✺ The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.✺ Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.

✺ The gluing mechanism adopts a special structure to gelatinize the plates and costing materials unifiormly, ensure a more solid

conglutination.

✺ End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting

structure to ensure the cutting surface smoothly.

✺ Rough/Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency motor

fast cutting structure to ensure the trimming plates smoothly.

✺ Corner trimming unit is to make the board ending more smooth and aesthetic.

✺ Scraping unit for a perfect finishing of the applied edge.

✺ The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.

This edge banding machine is suitable for straight edge banding of solid wood board, fiberboard, particleboard and other board workpieces, the edge sealing material can be solid wood strip, PVC, melamine, veneer, etc. Imported motor and high quality electrical components.Product serialization and diversified customer selection. High precision and efficiency.





Features: Automatic Pvc Edge Banding Machine Woodworking For Wood
1: New desIgn for the band clamping device, perfectly preventing the band from losing its track.
2: Four irregular cylindrical pinch rollers can entirely press the band firmly to the board.
3: Nonadjustment of the cutters of fine trimming & scraping units, pneumatically position, higher precision and higher productivity.



Automatic High Efficiency Edge Bander HD611 Parameter
Model HD611
Electric lifting
Total power 9.5kw
Overall size 5200×900×1600mm
Feed speed 14-20-23m/min
Edge thickness 0.4-3mm
Panel thickness 10-60mm
Panel length ≥120mm
Panel width ≥60mm
Min.work-piece length(without using pri-miling)
Min.work-piece length(using pri-miling)
Working pressure 0.6Mpa
Minimum sheet size 300(L)×30(W)mm
150(L)×150(W)mm
