150W CO2 Laser Engraving Cutting Machine For Stainless Sheet / Wood

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

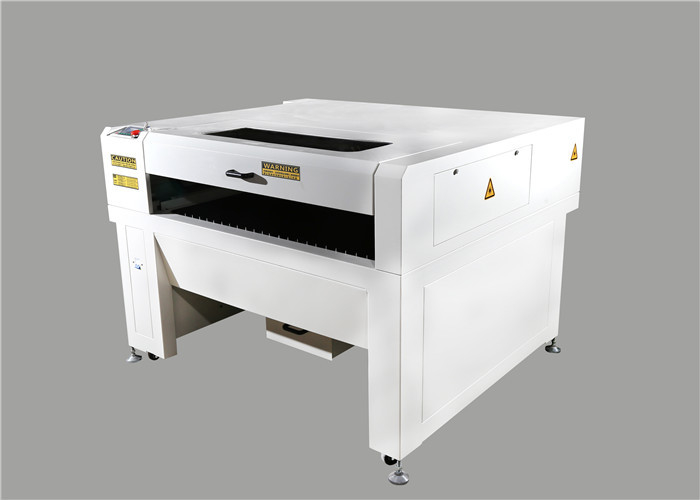

150W CO2 Laser Engraving Cutting Machine For Stainless Sheet / Wood

150W CO2 Laser Engraving Cutting Machine For Stainless Sheet / Wood
150W CO2 Laser Engraving Cutting Machine For Stainless Sheet / Wood

Large Image :  150W CO2 Laser Engraving Cutting Machine For Stainless Sheet / Wood

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1309CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Max Table Loading Weight (kg): 200 Max Acrylic Cut Thickness(mm): 40
Max Location Speed (m/min): 20 X\Y Repeat Location Accuracy(mm): ±0.005
Voltage (50/60Hz): 220V Single Phase X\Y Location Accuracy(mm/m): ±0.025
Total Power Consumption: 2KW Assistant Cutting Air Pressure (MPa): 0.6
High Light:

150W CO2 Laser Engraving Cutting Machine

,

Unitec CO2 Laser Engraving Cutting Machine

,

1200×900mm Wood Laser Cutting Machine

UT1309CL150  CO2 Laser 150W Engraving/ Cutting Machine for Stainless Sheet/ Carbon Sheet/ Wood/ Acrylic



Application:


1. Applicable materials
non metal materials such as fabric & leather, paper & cardboard, rubber (natural, synthetic & foam), wood, acrylic, stone(engraving only), glass( engraving only), and so on. And some of the coated metal (only engraving)

2. Applicable industries
Advertising decoration & Architectural decoration; Art, Hobby & Crafts
Awards & Personalization , Music instrument Toy & Electronic industry
Woodworking industry
Cutting of template
Industrial Marking & Cutting
Printing & Design (make a proof)
Product Decorating
Signs, Badges & Stamps ,
Paper product and other industries.



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



Item Description Marks
Working Size X:1200mmY:900mm Machine body produced by high accuracy machine center
Laser Cutting Head High Accuracy Head with quick loading function With Double Focus system



Mechanical Driving System

X/Y Ball Screw Taiwan TBI
X/Y/Z Linear Guide Taiwan TBI
Special Cool System

Compressor Overloading Alarm

Temperature Overheat Alarm

Temerature Control Accuracy ±0.5℃



Guangzhou Teyu

Motion Control System Off line Control Ruida
X ,Y Servo Driver MR-JE-40A Japan Mitsubishi
Z driver DMD-402A LEETRO
Main Contactor LS Imported from Korea
Origin Switch PANASONIC Japan Panasonic





Laser Tube Power (W) 150W
Laser Beam Quality M2≤1.1
Working Size(mm) 1200×900mm
Max Table Loading Weight (kg) 200
Max Acrylic Cut Thickness(mm) 40
Max Location Speed (m/min) 20
XY Location Accuracy(mm/m) ±0.025
XY Repeat Location Accuracy(mm) ±0.005



Travel Size



X-(mm) 1200
Y-(mm) 900
Z-(mm) 40
Voltage (50/60Hz) 220V single phase
Total Power Consumption 2KW
Assistant Cutting Air Pressure (MPa) 0.6





Highlights


1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.






150W CO2 Laser Engraving Cutting Machine For Stainless Sheet / Wood 0150W CO2 Laser Engraving Cutting Machine For Stainless Sheet / Wood 1150W CO2 Laser Engraving Cutting Machine For Stainless Sheet / Wood 2150W CO2 Laser Engraving Cutting Machine For Stainless Sheet / Wood 3
