1530 1600X3000mm 4 Axis Foam Engraver Milling Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

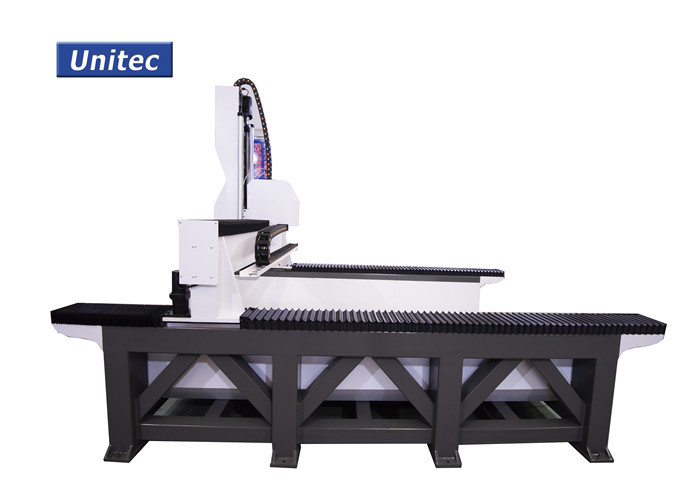

1530 1600X3000mm 4 Axis Foam Engraver Milling Machine

1530 1600X3000mm 4 Axis Foam Engraver Milling Machine
1530 1600X3000mm 4 Axis Foam Engraver Milling Machine

Large Image :  1530 1600X3000mm 4 Axis Foam Engraver Milling Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1530P

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 25 working days
Detailed Product Description
XYZ Travel Size: 1550X3050X850mm Max Working Size: 1500X3000X800mm
Table Size: 1600X3000mm Transmission Type: XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: T-Slot
Spindle Power: China Air Cool Spindle Or 5.6KW Italy Air Cool Spindle Pindle Speed: 18000rpm
High Light:

Unitec Engraver Milling Machine

,

1600X3000mm Engraver Milling Machine

,

18000rpm Engraver Milling Machine

UT1530P CNC Router 1530 4 Axis Engraver Milling Machine For 2d And 3d Foam Engraving



Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.



Applications and Materials

  • Polyolon (foam) Area: foam processing of automotive stamping dies, casting of wooden models, automotive interior, engineering plastic materials and other non-metal processing.
  • Wood mold Area: casting wood mold, automobile inspection tool processing, automobile interior decoration, engineering plastic materials and other non-metallic processingWoodworking
  • Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel
XYZ Travel Size 1550X3050X850mm
Max Working Size 1500X3000X800mm
Table Size 1600X3000mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T-Slot
Spindle Power China air cool spindle or 5.6KW Italy Air cool spindle
pindle Speed 18000rpm
Max Travel Speed 30000mm/min
Max Work Speed 20000mm/min
Motor servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio/ShanL
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 2000KG
Overall Dimension 2200X3500X2400mm
