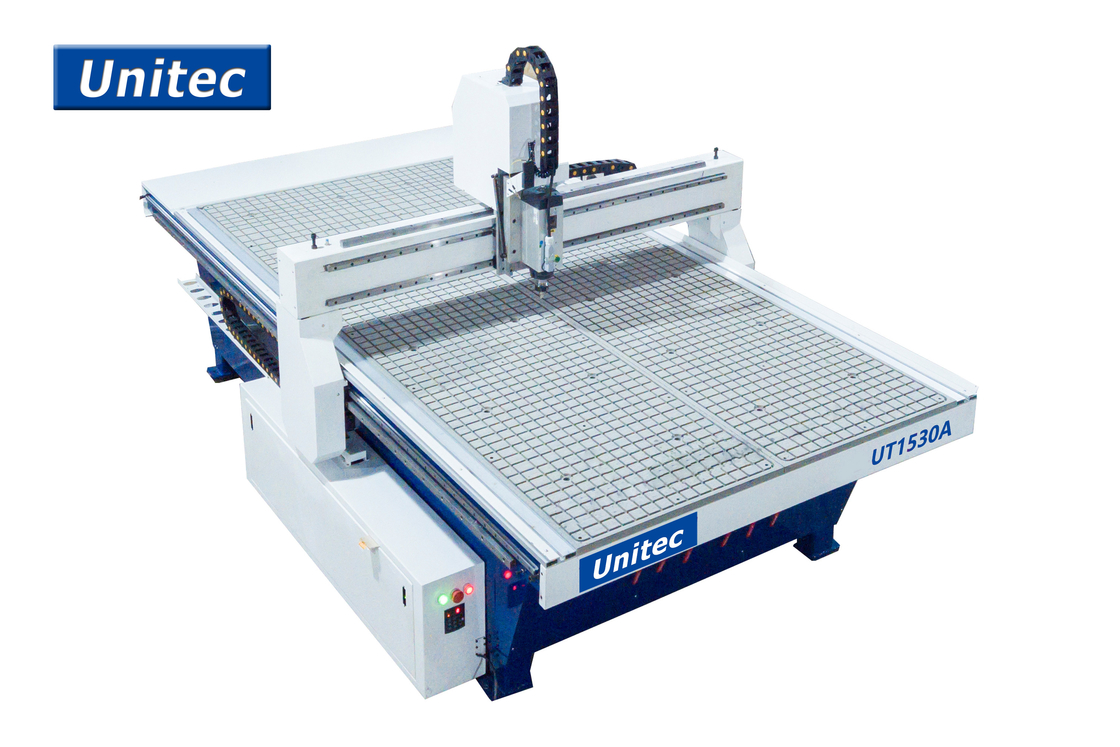

UT1530A 18000rpm 24000rpm Woodworking CNC Router Machine
Product Details:
| Place of Origin: | Unitec |
| Brand Name: | Unitec |
| Certification: | ce |
| Model Number: | UT1530A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case for outer packing |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, L/C, Western Union |
|
Detail Information |
|||
| XYZ Travel Size: | 1520X3020X150mm | Vacuum Pump: | 7.5KW/4.8KW; 7.5KW Water Recycle Pump Or 4.8kw Air Cool Pump |
|---|---|---|---|
| Table Style: | Vacuum Table | Guide Rail: | Linear Guide |
| Max Working Size: | 1500X3000X120mm | Table Size: | 1700X3000mm |
| Transmission Type: | XY/Z XY Rack/Z Ball Screw | Spindle Power: | 4.5KW/5.6EL 4.5KW China Air Cool Spindle Or 5.6kw Italy ELTE Air Cool Spindle |
| High Light: | UT1530A Woodworking CNC Router Machine,18000rpm Woodworking CNC Router Machine,24000rpm wood router machine |
||
Product Description
UT1530A Woodworking Cnc Router Machine Cnc Woodworking Machine Woodworking Cnc Router Machine Furniture Industry
The China Factory Wood Router 1840 Mdf Door Cnc Making Machine is strong function, suitable for multiple complex product processing and multi-processing. air cooling 3kw spindle, X/Y axis Step motors and leadshine drivers, lnc control system. Applicable to process wood door, kitchen cabinet, solid wood furniture, computer desk, screen stencil, art windows, acrylic, PVC board, sign plate and plastic molding in high efficiency
Applications and Materials
- Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
- Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
- PVC Crafts Industry: solid woodartificial stonemarblesandstonealuminum composite panelbamboosoft metalPVCacrylicdouble color board, etc
Technical parameters
| XYZ Travel Size | 1520X3020X150mm | |
| Max Working Size | 1500X3000X120mm | |
| Table Size | 1700X3000mm | |
| Transmission Type | XY/Z XY rack/Z ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | Vacuum | |
| Vacuum Pump | 7.5KW/4.8KW; 7.5KW Water Recycle Pump or 4.8kw air cool pump | |
| Spindle Power | 4.5KW/5.6EL 4.5KW China Air Cool Spindle or 5.6kw Italy ELTE air cool spindle | |
| Spindle Speed | 18000rpm/24000rpm | |
| Max Travel Speed | 20000mm/min | |
| Max Work Speed | 15000mm/min | |
| Motor | / China Easy Servo Motor or Stepper motor | |
| Work Voltage | AC380V 50HZ | |
| Controller System | /DSP Ncstudio or DSP | |
| Processing Accuracy | 0.05mm | |
|
Repeat Positioning Accuracy |
0.01mm | |
| File Format | G/PLT G code or PLT | |
| Overall Weight | 1600KG | |
| Overall Dimension | 2150X3500X1600mm | |
- Integral welded Frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
- Various of table styles makes convenient clamping materials and improves overall production efficiency
- Smooth bottom surface, clear edge contour and fine processing quality.
- Main configurations adopts imported accessories which will ensure the overall running performance
- CE Strict compliance with CE electrical standards for circuit design and production, and all
- Parts have safe and reliable protection device.
Certificate
-
CE certificated for European countries
-
CCVO SONCAP certificated for Nigeria customers
-
FTA certificate for Pakistan customers
-
SASO certificate for Saudi Arabic customers
-
Form E certificate for Indonesia and Vietname customers
Packaging Details:
- Outside package: Standard marine export plywood case.
- Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment
