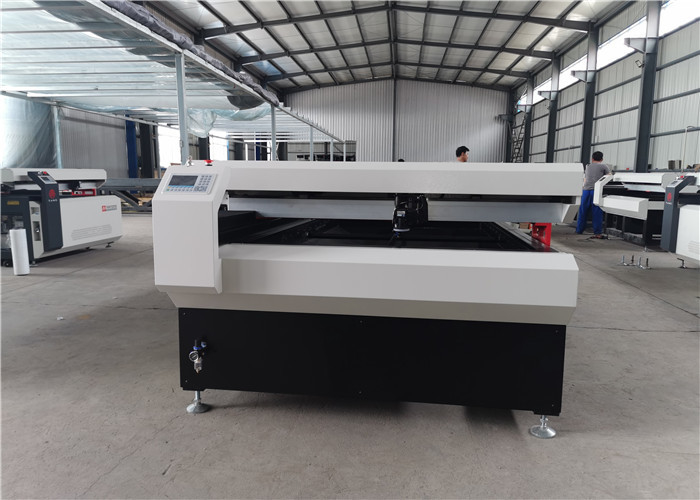

1200×900mm CO2 Laser Cutting Engraving Machine For Glass

1200×900mm CO2 Laser Cutting Engraving Machine For Glass
1200×900mm CO2 Laser Cutting Engraving Machine For Glass

Large Image :  1200×900mm CO2 Laser Cutting Engraving Machine For Glass

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Max Table Loading Weight (kg): 200 Max Acrylic Cut Thickness(mm): 40
Max Location Speed (m/min): 20 X\Y Location Accuracy(mm/m): ±0.025
X\Y Repeat Location Accuracy(mm): ±0.005 Voltage (50/60Hz): 220V Single Phase
Total Power Consumption: 2KW Assistant Cutting Air Pressure (MPa): 0.6
High Light:

150W CO2 Laser Cutting Engraving Machine

,

1325 CO2 Laser Cutting Engraving Machine

,

1200×900mm Glass Laser Cutting Machine

UT1325CL150 High Quality 1325 CO2 Laser Cutting Engraving Machine For Glass



Advantages of the Fiber laser cutter:
1. High Efficiency--The rapid cutting speed is two times higher than ordinary laser cutting machine.
2. Environment friendly--Laser cutting will not creates any gases for the special cutting technology for steel sheet.
3. Lower Consumption--The power consumption of our fiber laser cutter was reduced by 20%-30% compared wtih ordinary laser cutting machine.
4 Maintenance-free--For the fiber laser cutter, the reflect lens are no needed. It will help to save a lot of time when optical path is adjusted. The laser generator with longer lifetime which no need maintaince during usage



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



Item Description Marks
Working Size X:1200mmY:900mm Machine body produced by high accuracy machine center
Laser Cutting Head High Accuracy Head with quick loading function With Double Focus system



Mechanical Driving System

X/Y Ball Screw Taiwan TBI
X/Y/Z Linear Guide Taiwan TBI
Special Cool System

Compressor Overloading Alarm

Temperature Overheat Alarm

Temerature Control Accuracy ±0.5℃



Guangzhou Teyu

Motion Control System Off line Control Ruida
X ,Y Servo Driver MR-JE-40A Japan Mitsubishi
Z driver DMD-402A LEETRO
Main Contactor LS Imported from Korea
Origin Switch PANASONIC Japan Panasonic





Laser Tube Power (W) 150W
Laser Beam Quality M2≤1.1
Working Size(mm) 1200×900
Max Table Loading Weight (kg) 200
Max Acrylic Cut Thickness(mm) 40
Max Location Speed (m/min) 20
XY Location Accuracy(mm/m) ±0.025
XY Repeat Location Accuracy(mm) ±0.005



Travel Size



X-(mm) 1200
Y-(mm) 900
Z-(mm) 40
Voltage (50/60Hz) 220V single phase
Total Power Consumption 2KW
Assistant Cutting Air Pressure (MPa) 0.6





Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.



1200×900mm CO2 Laser Cutting Engraving Machine For Glass 01200×900mm CO2 Laser Cutting Engraving Machine For Glass 11200×900mm CO2 Laser Cutting Engraving Machine For Glass 2
