Stainless Steel 1.3mx2.5m 1325 CO2 Laser Cutting Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

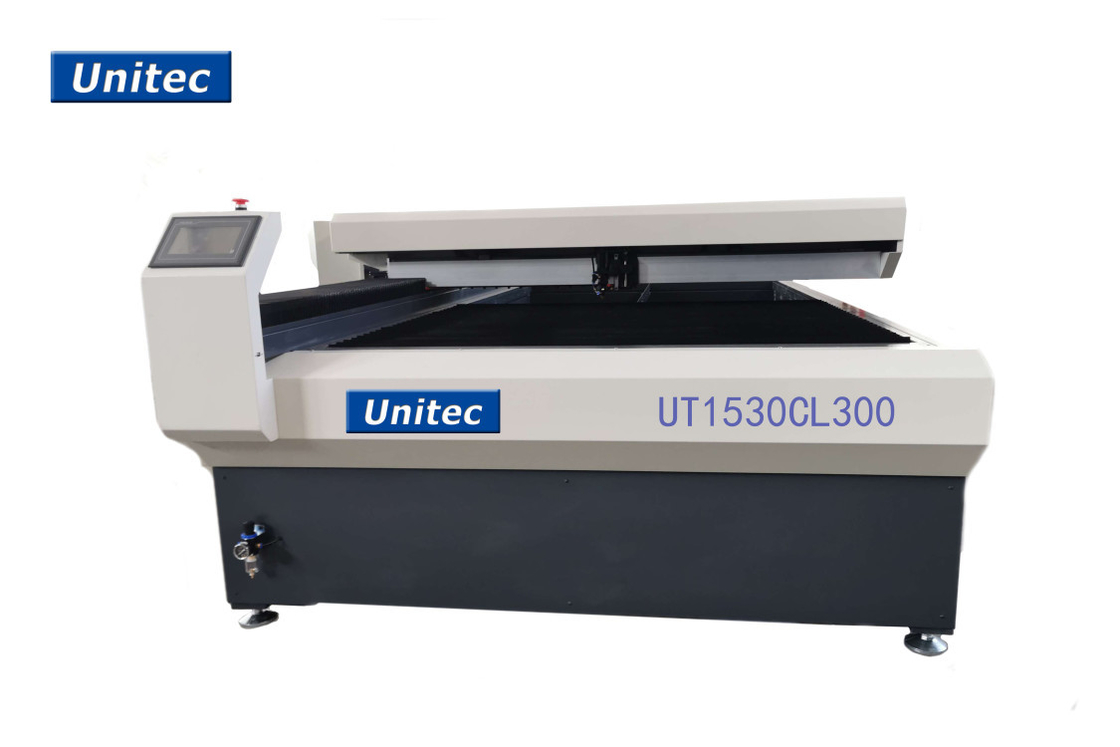

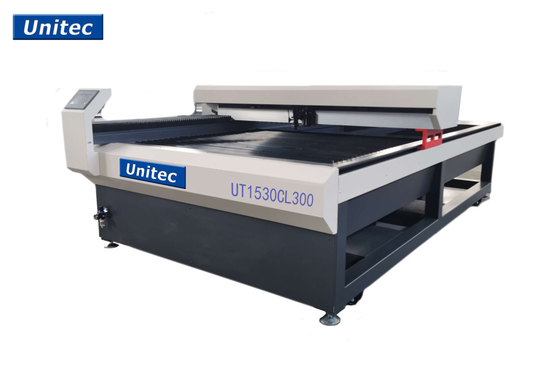

Stainless Steel 1.3mx2.5m 1325 CO2 Laser Cutting Machine

Stainless Steel 1.3mx2.5m 1325 CO2 Laser Cutting Machine
Stainless Steel 1.3mx2.5m 1325 CO2 Laser Cutting Machine Stainless Steel 1.3mx2.5m 1325 CO2 Laser Cutting Machine

Large Image :  Stainless Steel 1.3mx2.5m 1325 CO2 Laser Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1309CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Effective Working Area: 1300*900mm Working Table: Honeycomb Table
Engraving Speed: 0-60000mm/min Cutting Speed: 0-36000mm/min
Cutting Depth (acrylic): 0-30mm Resetting Positioning Accuracy: <0.01mm
Minimum Shaping Character: English 1mm, Chinese 2mm Power Supply: 220V(or110V)+/-10% 50Hz
High Light:

1.3mx2.5m Fiber Laser Cutting Machine

,

4X8FT Fiber Laser Cutting Machine

,

4FTX8FT Fiber Laser Cutting Machine

UT1309CL150 1325 Stainless Steel CNC CO2 Laser Cutter Cutting Machine For Tube







Item Description Marks
Working Size X:1250mmY:2500mm Machine body produced by high accuracy machine center
Laser Cutting Head High Accuracy Head with quick loading function With Double Focus system



Mechanical Driving System

X/Y Ball Screw Taiwan TBI
X/Y/Z Linear Guide Taiwan TBI
Special Cool System

Compressor Overloading Alarm

Temperature Overheat Alarm

Temerature Control Accuracy ±0.5℃



Guangzhou Teyu

Motion Control System Off line Control Ruida
X ,Y Servo Driver MR-JE-40A Japan Mitsubishi
Z driver DMD-402A LEETRO
Main Contactor LS Imported from Korea
Origin Switch PANASONIC Japan Panasonic



二,Specifications

Laser Tube Power (W) 150W
Laser Beam Quality M2≤1.1
Working Size(mm) 1250×2500
Max Table Loading Weight (kg) 200
Max Acrylic Cut Thickness(mm) 40
Max Location Speed (m/min) 20
XY Location Accuracy(mm/m) ±0.025
XY Repeat Location Accuracy(mm) ±0.005



Travel Size



X-(mm) 1250
Y-(mm) 2500
Z-(mm) 40
Voltage (50/60Hz) 220V single phase
Total Power Consumption 2KW
Assistant Cutting Air Pressure (MPa) 0.6
Overall Dimension (L×W×H) (mm) 3600×1850×1200
Overall Weight (kg) 1000
