|XYZ Travel Size:||1600X5000X200mm||Working Size:||1600X5000X200mm|
|Table Size:||1600X5000mm||Transmission Type:||XY Rack/Z Ball Screw|
|Guide Rail:||Taiwan PMI Linear Guide||Table Type:||Vacuum|
|Vacuum Pump:||7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump||Spindle Power:||5.6KW Italy Air Cool Spindle|
UT1325-T3 Wood Cutting CNC Router Machine,

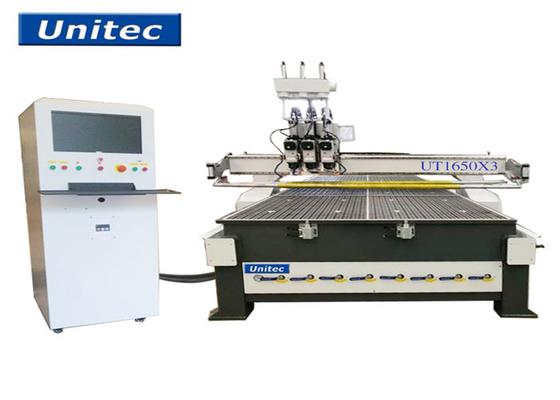

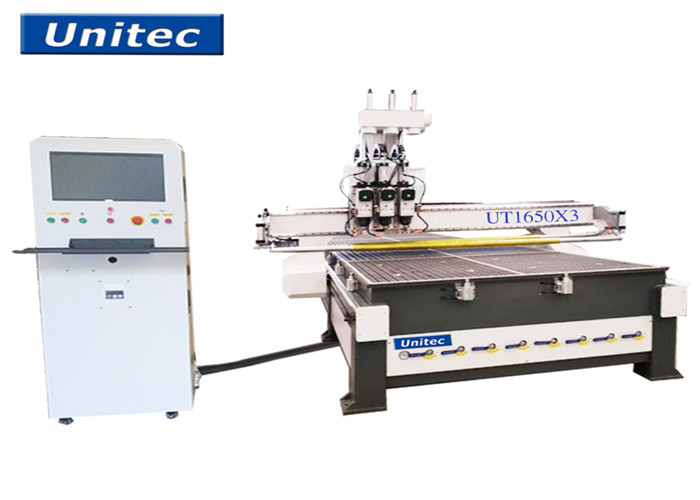

UT1650X3 Wood Cutting CNC Router Machine,
2600KG Wood Cutting CNC Router Machine
UT1325-T3 cnc router multi spindles wood cutting machinery for sale
This is a multi-spindle engraving machine with 4 spindles. 4 spindles CNC is much more economic than ATC, so it is good model to choose if you are in furniture industry. The 4 spindles are automatically changed according to the processing requirements, which greatly saves the time of manual tool change and also improves the production efficiency accordingly.
1. With air cooling spindle, and the working speed can reach to 18000RPM for per minutes.
2. With heavy duty frame and gantry; the machine was designed for durable.
3. Automatic tool sensor, save time and increase efficiency.
|XYZ Travel Size||1600X5000X200mm|
|Transmission Type||XY rack/Z ball screw|
|Guide Rail||Taiwan PMI Linear guide|
|Vacuum pump||7.5KW water recycle cool pump or 4.8KW air pump|
|Spindle Power||5.6KW Italy Air Cool Spindle|
|Max Travel Speed||40000mm/min|
|Max Working Speed||20000mm/min|
|Motor||Taiwan Delta AC Servo Motor|
|Work Voltage||AC380V 50HZ|
|Controller System||Ncstudio / Syntec|
|Repeat Positioning Accuracy||±0.01mm|
|File Format||G Code/PLT Code|
1. Fission key board control,ensure users operate easily.
2. Advanced Taiwan control system,Intelligent processing cross-border protection function,can prevent mechanical impact caused by the improper design documents. and control the processing speed,improve the processing efficiency .
3. Dust collection suck the wood chips,keep the working table clean. Vacuum table can absorb the material, save the plate loading and unloading time.
4. Advanced file preprocessing function,help users to correct errors in a timely. And be compatible with several CAD/CAM designing software
5. Recover caving point after break of disconnecting power.Automatic error correction function guarantee the engraving precision for long time processing.
6. Lathe bed welded with seamless steel tube,not easy to be deformed.
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
1) Double head with separate motors, higher working efficiency and better machining performance.
2) NC control system, can operate the machine very well.
3) Thick steel tube seamless welding structure make sure high working speed, and will not bend after long time use.
4) Vacuum absorption table with T-slots, hold the processing material tightly and easily. Separate vacuum block is suitable for different sized materials.
