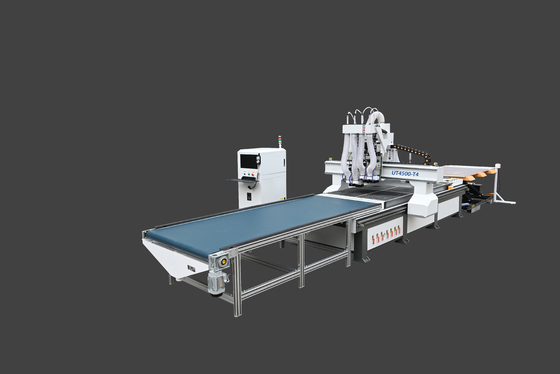

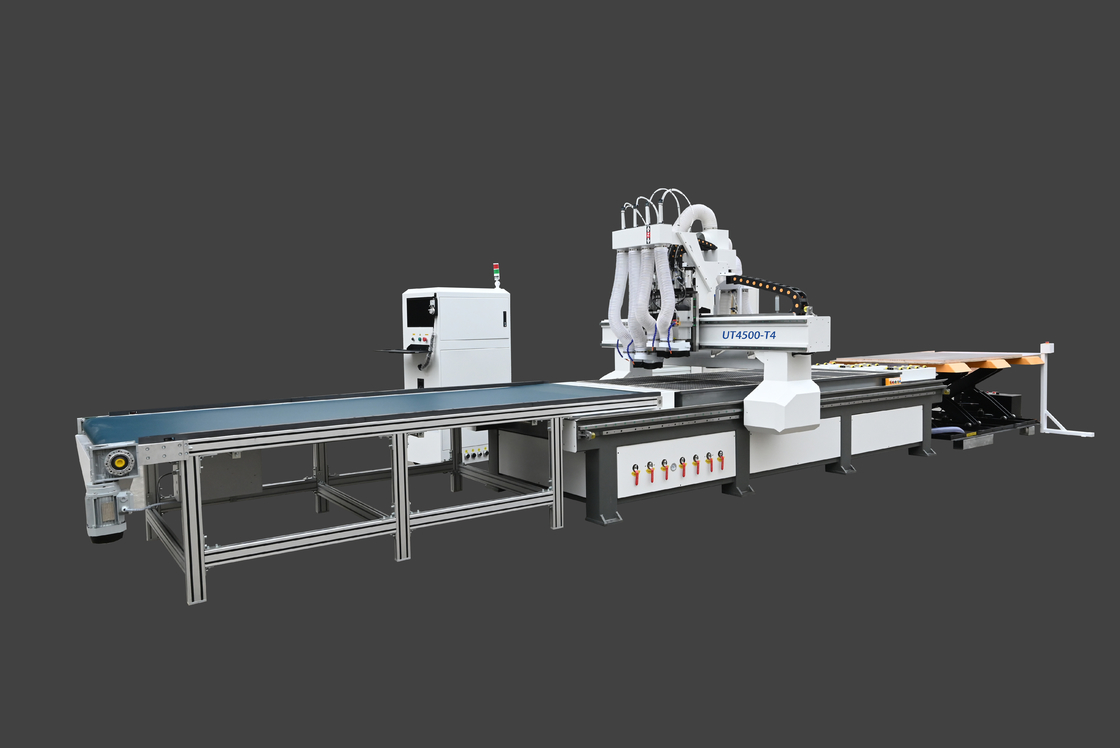

Unloading Table Nesting Machine Multi Spindle With Material Uploading

Unloading Table Nesting Machine Multi Spindle With Material Uploading
Unloading Table Nesting Machine Multi Spindle With Material Uploading Unloading Table Nesting Machine Multi Spindle With Material Uploading

Large Image :  Unloading Table Nesting Machine Multi Spindle With Material Uploading

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT4500-T4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Plywood+steel pipe
Supply Ability: 100 sets per month
Detailed Product Description
Working Size: 1300mm X 2500mm Spindle: 4 X China 6KW Air Cool Spindle
Table: Vacuum With Uploading And Unloading Guide Rail: Taiwan CSK
Motor: Taiwan Delta Servo Controller: Ncstudio
High Light:

Nesting Machine With Material Uploading

,

Multi Spindle Nesting Machine

,

Unloading Table Nesting Machine







With our UT4500-T4 CNC router, you get a number of features standard with the machine that you normally only get when you buy much more expensive CNC routers. It’s all because of Unitec unique manufacturing processes that keep high quality affordable.

The UT4500-T4 features a heavy, all-steel tube frame that ensures durability. It also makes your CNC machine more rigid, which reduces vibration and improves routing quality.A three-axis motion control system gives you tight control over routing quality for

With UT4500-T4 CNC Router, you can cut a variety of materials, including plastic, wood, foam, and composite materials. While it can work for a wide variety of applications, the most common are for sign making, woodworking, and marine part fabrication.

XYZ Travel Size 1500X3000X200mm
Working Size 1300X2500X150mm
Table Size 1300X2500mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear guide
Table Type Vacuum
Vacuum pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 6.0kw China Air Cool Spindle/ 5.6KW Italy Air Cool Spindle
Spindle Speed 18000rpm
Max Travel Speed 60000mm/min
Max Working Speed 20000mm/min
Motor AC Servo Motor
Work Voltage AC380V 50HZ
Controller System Ncstudio / Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G Code/PLT Code
Overall Weight 2200KG
Overall Dimension 2250X3500X1900mm
