UT2030X3 Multi Spindle 2030 Wood CNC Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

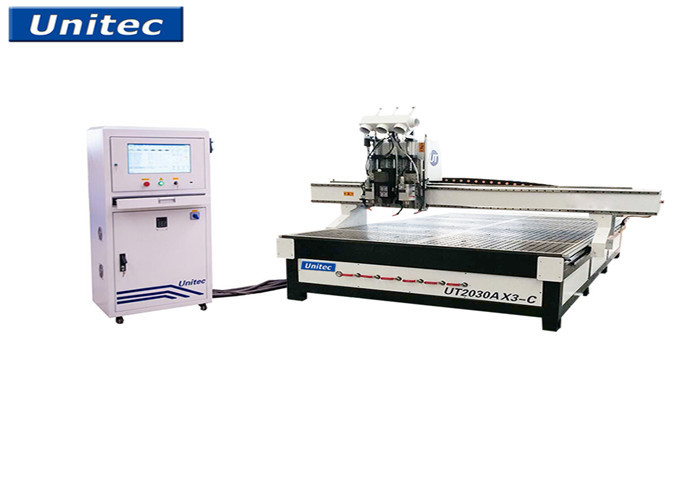

UT2030X3 Multi Spindle 2030 Wood CNC Router Machine

UT2030X3 Multi Spindle 2030 Wood CNC Router Machine
UT2030X3 Multi Spindle 2030 Wood CNC Router Machine UT2030X3 Multi Spindle 2030 Wood CNC Router Machine

Large Image :  UT2030X3 Multi Spindle 2030 Wood CNC Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2030X3
Detailed Product Description
XYZ Travel Size: 2000X3000X200mm Table Type: Vacuum
Guide Rail: Taiwan PMI Linear Guide Spindle Power: 5.6KW Italy Air Cool Spindle
Working Size: 2000X3000X200mm Table Size: 2050X3100mm
Transmission Type: XY Rack/Z Ball Screw Vacuum Pump: 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump
High Light:

2200KG Wood CNC Router Machine

,

UT2030 Wood CNC Router Machine

,

18000rpm Wood CNC Router Machine

UT2030X3 Multi Spindle 2030 Wood CNC Router Machinery



Feature:

1. Engrave human statue, buddha, art work, furniture in 360°degree;

2. Four-axis controlling system, full servo driving system;

3. Adopt driving worktable for smooth running, high precision;

4. Hand shank control, convenient operation, easy study



This is a multi-spindle engraving machine with 4 spindles. 4 spindles CNC is much more economic than ATC, so it is good model to choose if you are in furniture industry. The 4 spindles are automatically changed according to the processing requirements, which greatly saves the time of manual tool change and also improves the production efficiency accordingly.



Features:


1. With air cooling spindle, and the working speed can reach to 18000RPM for per minutes.
2. With heavy duty frame and gantry; the machine was designed for durable.
3. Automatic tool sensor, save time and increase efficiency.



XYZ Travel Size 2000X3000X200mm
Working Size 2000X3000X200mm
Table Size 2050X3100mm
Transmission Type XY rack/Z ball screw
Guide Rail Taiwan PMI Linear guide
Table Type Vacuum
Vacuum pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 5.6KW Italy Air Cool Spindle
Spindle Speed 18000rpm
Max Travel Speed 40000mm/min
Max Working Speed 20000mm/min
Motor Taiwan Delta AC Servo Motor
Work Voltage AC380V 50HZ
Controller System Ncstudio / Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G Code/PLT Code
Overall Weight 2200KG
Overall Dimension 3600X2300X1900mm



1. Fission key board control,ensure users operate easily.

2. Advanced Taiwan control system,Intelligent processing cross-border protection function,can prevent mechanical impact caused by the improper design documents. and control the processing speed,improve the processing efficiency .

3. Dust collection suck the wood chips,keep the working table clean. Vacuum table can absorb the material, save the plate loading and unloading time.

4. Advanced file preprocessing function,help users to correct errors in a timely. And be compatible with several CAD/CAM designing software

5. Recover caving point after break of disconnecting power.Automatic error correction function guarantee the engraving precision for long time processing.

6. Lathe bed welded with seamless steel tube,not easy to be deformed.



1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



1) Double head with separate motors, higher working efficiency and better machining performance.

2) NC control system, can operate the machine very well.

3) Thick steel tube seamless welding structure make sure high working speed, and will not bend after long time use.

4) Vacuum absorption table with T-slots, hold the processing material tightly and easily. Separate vacuum block is suitable for different sized materials.

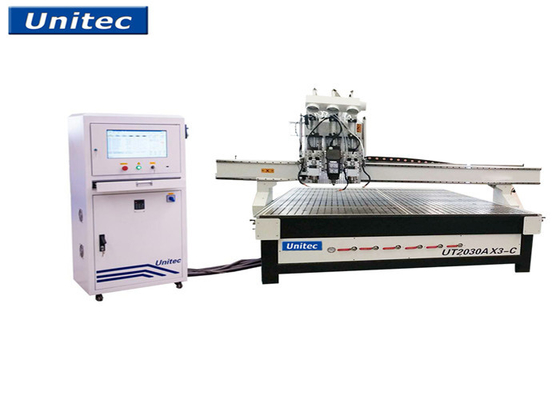

UT2030X3 Multi Spindle 2030 Wood CNC Router Machine 0

UT2030X3 Multi Spindle 2030 Wood CNC Router Machine 1UT2030X3 Multi Spindle 2030 Wood CNC Router Machine 2UT2030X3 Multi Spindle 2030 Wood CNC Router Machine 3
