220V Single Phase 120W 150W Acrylic Laser Cutting Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

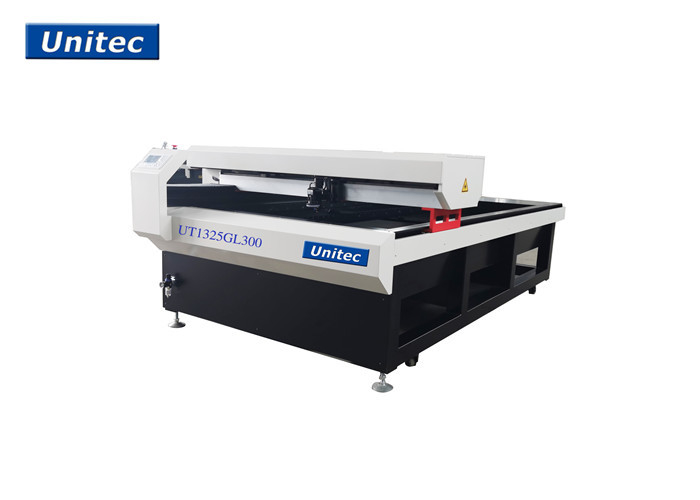

220V Single Phase 120W 150W Acrylic Laser Cutting Machine

220V Single Phase 120W 150W Acrylic Laser Cutting Machine
220V Single Phase 120W 150W Acrylic Laser Cutting Machine

Large Image :  220V Single Phase 120W 150W Acrylic Laser Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Max Table Loading Weight (kg): 200 Max Acrylic Cut Thickness(mm): 40
Max Location Speed (m/min): 20 X\Y Location Accuracy(mm/m): ±0.025
X\Y Repeat Location Accuracy(mm): ±0.005 Voltage (50/60Hz): 220V Single Phase
Total Power Consumption: 2KW Assistant Cutting Air Pressure (MPa): 0.6
High Light:

150W Acrylic Laser Cutting Machine

,

0.6Mpa CNC Acrylic Cutting Machine

,

Unitec Acrylic Laser Cutting Machine

UT1325CL150 1325 Acrylic Laser Cutting Machine Promotion Price Sale 120W 150W



1. Stone Industry(engrave): marble, granite, white marble etc.

2. Art crafts Industry: wood, bamboo, elephant's tusk, bone, leather, sea shell etc.

3. Advertisement Industry: double color board, acrylic engraving and cutting, label engraving, crystal, etc.

4. Model Industry: sand table construction model, plane model, etc.

5. Packing Industry: rubber engraving, doubling plate, die board cutting etc.

6. Leather and cloth processing Industry: compound leather, man-made leather, fabric, fur, toy, etc.

7. Other industry: glass, crystal engraving, paper/greeting card cutting, etc.



Main features


1. Imported stepper motor and drive systems
2. Domestic reci lasers (150W/ 180W/ 200W) optional, Adopted imported linear guide rail
3. Large LCD display subtitles, humane button control panel
4. Optical system using the full import of laser lens system in Singapore
5 .High strength stainless iron or aluminum honeycomb floor slats optional knife
6. Ruida controller system--6332 model
7. Water chiller --CW5000/CW5200/CW6000,is used to cool laser tube down during working less than 100w laser power, it is better to choose water pump. more than 100w laser power, it is better to choose water chiller



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



Item Description Marks
Working Size X:1200mmY:900mm Machine body produced by high accuracy machine center
Laser Cutting Head High Accuracy Head with quick loading function With Double Focus system



Mechanical Driving System

X/Y Ball Screw Taiwan TBI
X/Y/Z Linear Guide Taiwan TBI
Special Cool System

Compressor Overloading Alarm

Temperature Overheat Alarm

Temerature Control Accuracy ±0.5℃



Guangzhou Teyu

Motion Control System Off line Control Ruida
X ,Y Servo Driver MR-JE-40A Japan Mitsubishi
Z driver DMD-402A LEETRO
Main Contactor LS Imported from Korea
Origin Switch PANASONIC Japan Panasonic





Laser Tube Power (W) 150W
Laser Beam Quality M2≤1.1
Working Size(mm) 1200×900
Max Table Loading Weight (kg) 200
Max Acrylic Cut Thickness(mm) 40
Max Location Speed (m/min) 20
XY Location Accuracy(mm/m) ±0.025
XY Repeat Location Accuracy(mm) ±0.005



Travel Size



X-(mm) 1200
Y-(mm) 900
Z-(mm) 40
Voltage (50/60Hz) 220V single phase
Total Power Consumption 2KW
Assistant Cutting Air Pressure (MPa) 0.6





Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.


220V Single Phase 120W 150W Acrylic Laser Cutting Machine 0220V Single Phase 120W 150W Acrylic Laser Cutting Machine 1220V Single Phase 120W 150W Acrylic Laser Cutting Machine 2
