1530 5 x 10 CNC Router for Sale Best Price & Top Choice

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

1530 5 x 10 CNC Router for Sale Best Price & Top Choice

1530 5 x 10 CNC Router for Sale Best Price & Top Choice
1530 5 x 10 CNC Router for Sale Best Price & Top Choice

Large Image :  1530 5 x 10 CNC Router for Sale Best Price & Top Choice

Product Details:

Place of Origin: Unitec
Brand Name: Unitec
Certification: ce
Model Number: UT1530-HZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case for outer packing
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Table Style: T Slot Spindle Power: 4.5KW/5.6EL 4.5KW China Air Cool Spindle Or 5.6kw Italy ELTE Air Cool Spindle
Guide Rail: Linear Guide XYZ Travel Size: 1520X3020X150mm
Max Working Size: 1500X3000X120mm Table Size: 1700X3000mm
Transmission Type: XY/Z XY Rack/Z Ball Screw Motor: Easy Servo Motor
Controller: Ncstudio
High Light:

3 Axis Engraving CNC Router Machine

,

3 Axis Engraving Machine

,

Press Roller CNC Router Machine

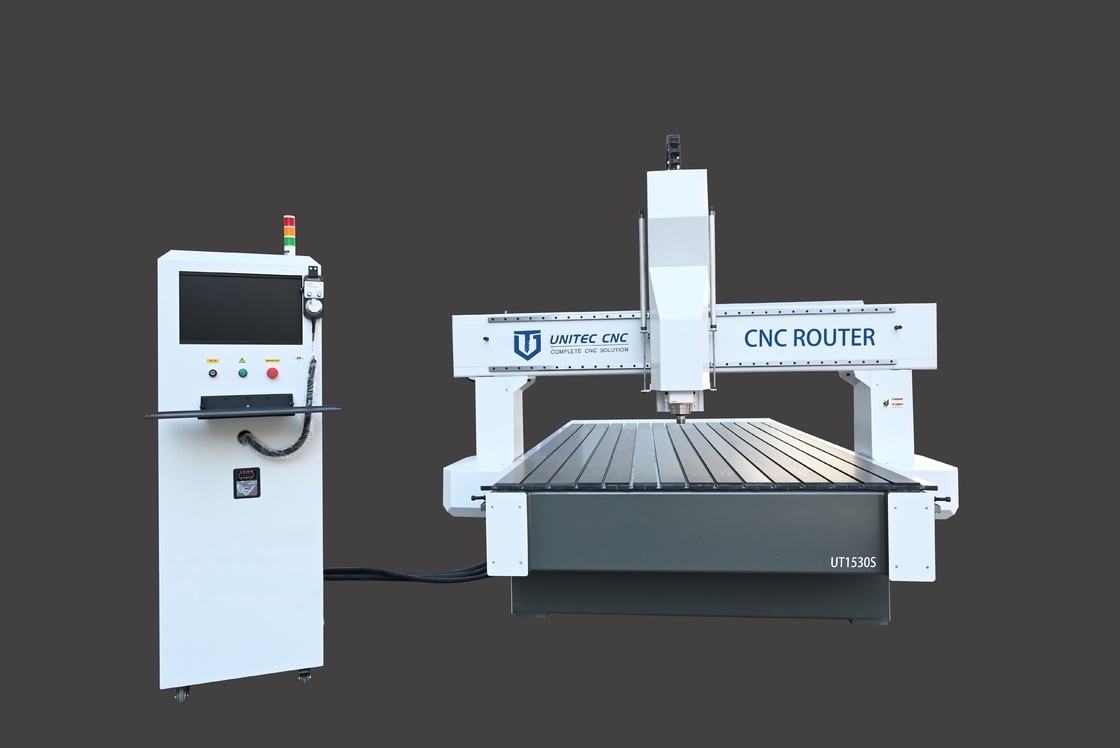

UT1530-HZ 1530  5 X 10 CNC Router with High Z





Features

1. Adopting Easy Servo motor and Leadshine Driver, it is more power to engrave.

2. With the Artcam software, it is easy and convenient to operate and use.

3. Manufactured with powerful Italy Elte spindle, it has a better cooling effect and strong cutting strength.

4. Equipped with the imported components, which greatly guarantee the longer service life of the machine.





Technical parameters

XYZ Travel Size 1520X3020X400mm
Max Working Size 1500X3000X400mm
Table Size 1700X3000mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type Vacuum
Vacuum Pump 7.5KW/4.8KW; 7.5KW Water Recycle Pump or 4.8kw air cool pump
Spindle Power 4.5KW/5.6EL 4.5KW China Air Cool Spindle or 5.6kw Italy ELTE air cool spindle
Spindle Speed 18000rpm/24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 15000mm/min
Motor / China Easy Servo Motor or Stepper motor
Work Voltage AC380V 50HZ
Controller System /DSP Ncstudio or DSP
Processing Accuracy 0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 1600KG
Overall Dimension 2150X3500X1600mm
