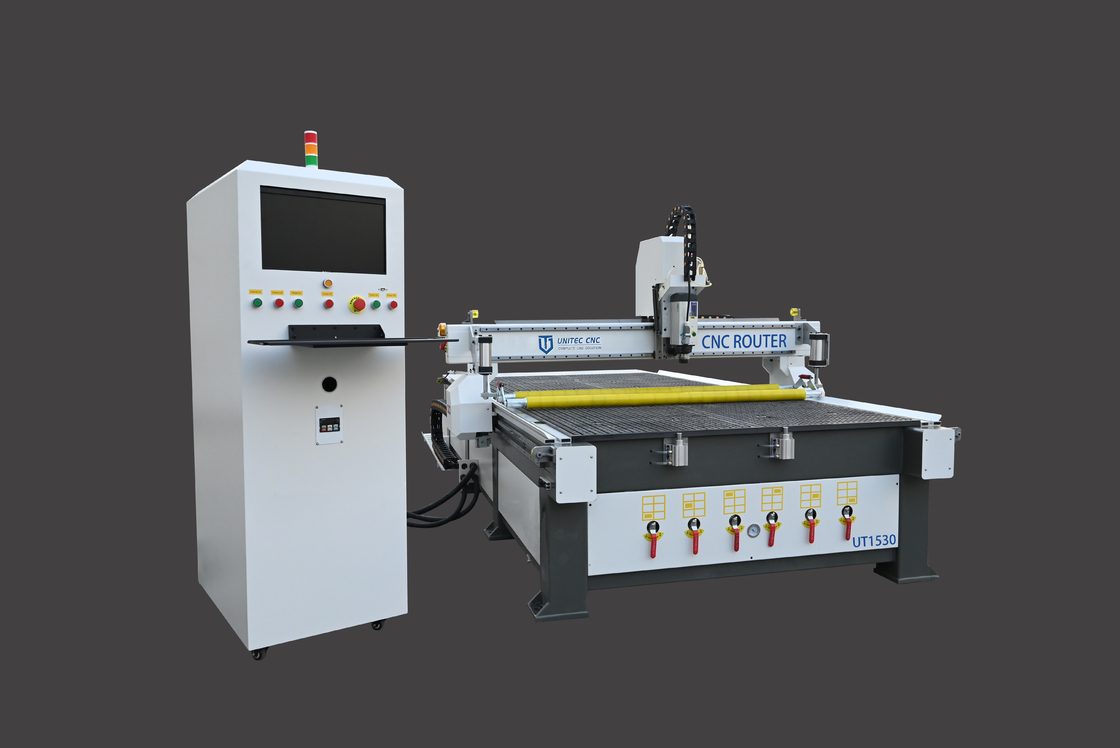

1530 5 X 10 Woodworking CNC Router Machine T Slot Servo Motor
Product Details:
| Place of Origin: | Unitec |
| Brand Name: | Unitec |
| Certification: | ce |
| Model Number: | UT1530-HZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case for outer packing |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, L/C, Western Union |
|
Detail Information |
|||
| Table Style: | T Slot | Spindle Power: | 4.5KW/5.6EL 4.5KW China Air Cool Spindle Or 5.6kw Italy ELTE Air Cool Spindle |
|---|---|---|---|
| Guide Rail: | Linear Guide | XYZ Travel Size: | 1520X3020X150mm |
| Max Working Size: | 1500X3000X120mm | Table Size: | 1700X3000mm |
| Transmission Type: | XY/Z XY Rack/Z Ball Screw | Motor: | Easy Servo Motor |
| Controller: | Ncstudio | ||
| High Light: | Servo Motor Woodworking CNC Router Machine,1530 5 x 10 Woodworking CNC Router Machine,T slot Woodworking CNC Router Machine |
||
Product Description
UT1530-HZ 1530 5 X 10 CNC Router with High Z
Features
1. Adopting Easy Servo motor and Leadshine Driver, it is more power to engrave.
2. With the Artcam software, it is easy and convenient to operate and use.
3. Manufactured with powerful Italy Elte spindle, it has a better cooling effect and strong cutting strength.
4. Equipped with the imported components, which greatly guarantee the longer service life of the machine.
Technical parameters
| XYZ Travel Size | 1520X3020X400mm | |
| Max Working Size | 1500X3000X400mm | |
| Table Size | 1700X3000mm | |
| Transmission Type | XY/Z XY rack/Z ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | Vacuum | |
| Vacuum Pump | 7.5KW/4.8KW; 7.5KW Water Recycle Pump or 4.8kw air cool pump | |
| Spindle Power | 4.5KW/5.6EL 4.5KW China Air Cool Spindle or 5.6kw Italy ELTE air cool spindle | |
| Spindle Speed | 18000rpm/24000rpm | |
| Max Travel Speed | 20000mm/min | |
| Max Work Speed | 15000mm/min | |
| Motor | / China Easy Servo Motor or Stepper motor | |
| Work Voltage | AC380V 50HZ | |
| Controller System | /DSP Ncstudio or DSP | |
| Processing Accuracy | 0.05mm | |
|
Repeat Positioning Accuracy |
0.01mm | |
| File Format | G/PLT G code or PLT | |
| Overall Weight | 1600KG | |
| Overall Dimension | 2150X3500X1600mm | |
