1.3mx2.6m ATC CNC Router Machine

1.3mx2.6m ATC CNC Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1326ATC
Get Best Price Contact Now

Detail Information

XYZ Travel Size: 1350X2900X220mm Max Working Size: 1300X2600X160mm
Table Size: 1300X2600mm Guide Rail: Linear Guide
Table Type: Vacuum Spindle Power: 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle
Voltage: 380V/220V Warranty: 2 Years
High Light:

1.3mx2.6m ATC CNC Router Machine


220V ATC CNC Router Machine


1326 ATC CNC Router Machine

Product Description

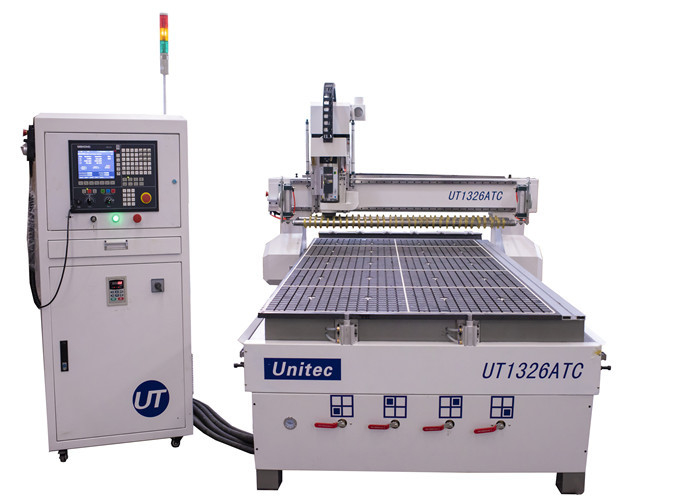

UT1326ATC High Precision Finework Cnc Router 1326


1. 1326 three processes, is an intelligent economic ATC equipment. It can auto-complete multi-process machining through three separate spindle automatic switching.

2.Tool change type : Linear ATC

3. Control system adopts imported Taiwn Syntec system.

4. Main parts are high stability imported parts.

5. A variety of sizes models is available to choose.

6. Can change the parts according to your requirements.


Applications and Material

Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc

Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc

ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel


XYZ Travel Size 1350X2900X220mm
Max Working Size 1300X2600X160mm
Table Size 1300X2600mm

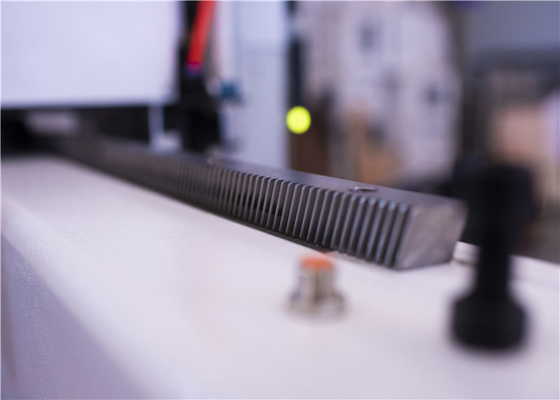

Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle

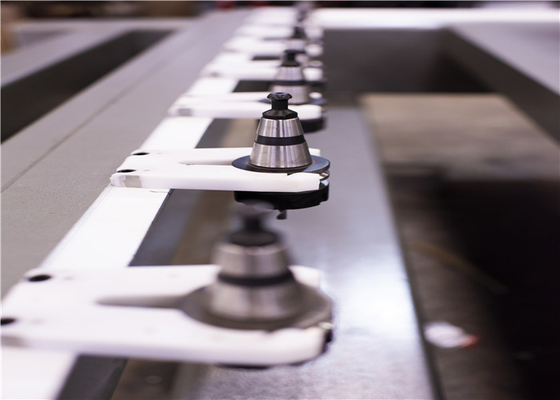

Tool Changer Linear Tool Changer
Spindle Speed 24000rpm


Max Travel Speed

Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ

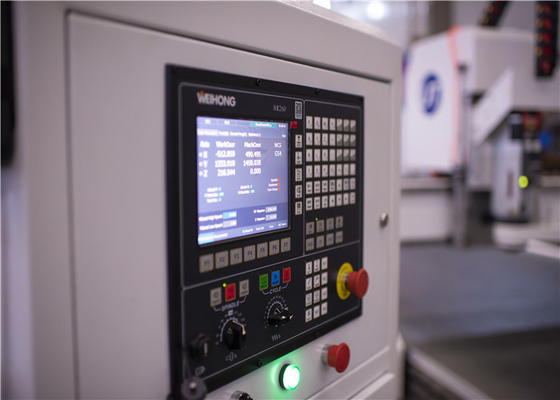

Controller System / Ncstudio or Syntec


Processing Accuracy



Repeat Positioning Accuracy

File Format G/PLT G code or PLT
Overall Weight 1800KG
Overall Dimension 2000X3600X1900mm

1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.

1.3mx2.6m ATC CNC Router Machine 01.3mx2.6m ATC CNC Router Machine 11.3mx2.6m ATC CNC Router Machine 21.3mx2.6m ATC CNC Router Machine 31.3mx2.6m ATC CNC Router Machine 41.3mx2.6m ATC CNC Router Machine 51.3mx2.6m ATC CNC Router Machine 6
