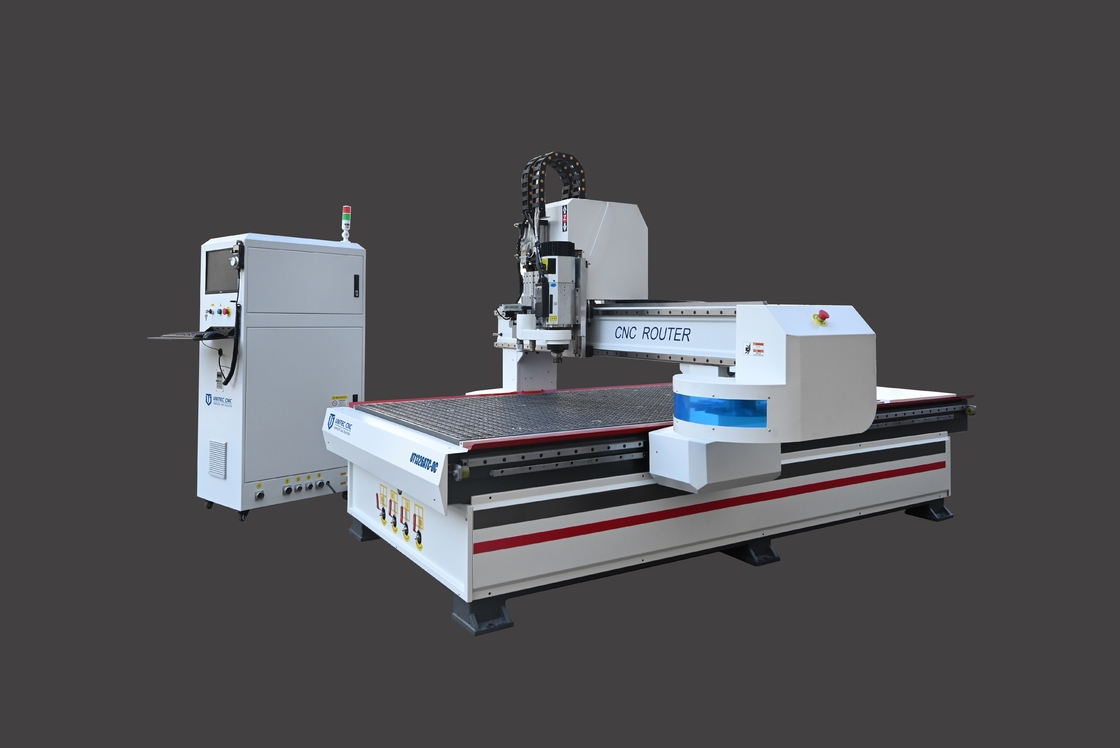

1326 Carrousel ATC CNC Router Machine with Oscillating Knife and CCD camera
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1326ATC-OC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Steel pipe and plywood |
| Supply Ability: | 100 per month |
|
Detail Information |
|||
| XYZ Travel Size: | 1350X2900X220mm | Max Working Size: | 1300X2600X160mm |
|---|---|---|---|
| Table Size: | 1300X2600mm | Guide Rail: | Linear Guide |
| Table Type: | Vacuum | Spindle Power: | 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle |
| Voltage: | 380V/220V | Warranty: | 2 Years |
| Oscillating Knife: | China Leyu | Controller: | Leyu Controller |
Product Description
Economical 1326 Oscillating Knife CNC Cutting Machine with Automatic Tool Changer
1. 1326 three processes, is an intelligent economic ATC equipment. It can auto-complete multi-process machining through three separate spindle automatic switching.
2.Tool change type : Linear ATC
3. Control system adopts imported Taiwn Syntec system.
4. Main parts are high stability imported parts.
5. A variety of sizes models is available to choose.
6. Can change the parts according to your requirements.
Applications and Material
Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel
| XYZ Travel Size | 1350X2900X220mm |
| Max Working Size | 1300X2600X160mm |
| Table Size | 1300X2600mm |
| Transmission Type | XY/Z XY rack/Z ball screw |
| Guide Rail | Linear Guide |
| Table Type | vacuum |
| Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump |
| Spindle Power | 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle |
| Tool Changer | Carrousel Tool Changer |
| Spindle Speed | 24000rpm |
|
Max Travel Speed |
45000mm/min |
| Max Work Speed | 20000mm/min |
| Motor | AC servo motor |
| Work Voltage | AC380V 50HZ |
| Controller System | China Leyu Controller |
|
Processing Accuracy |
0.05mm |
|
Repeat Positioning Accuracy |
0.01mm |
| File Format | G/PLT G code or PLT |
| Overall Weight | 1800KG |
| Overall Dimension | 2000X3600X1900mm |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance
6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
