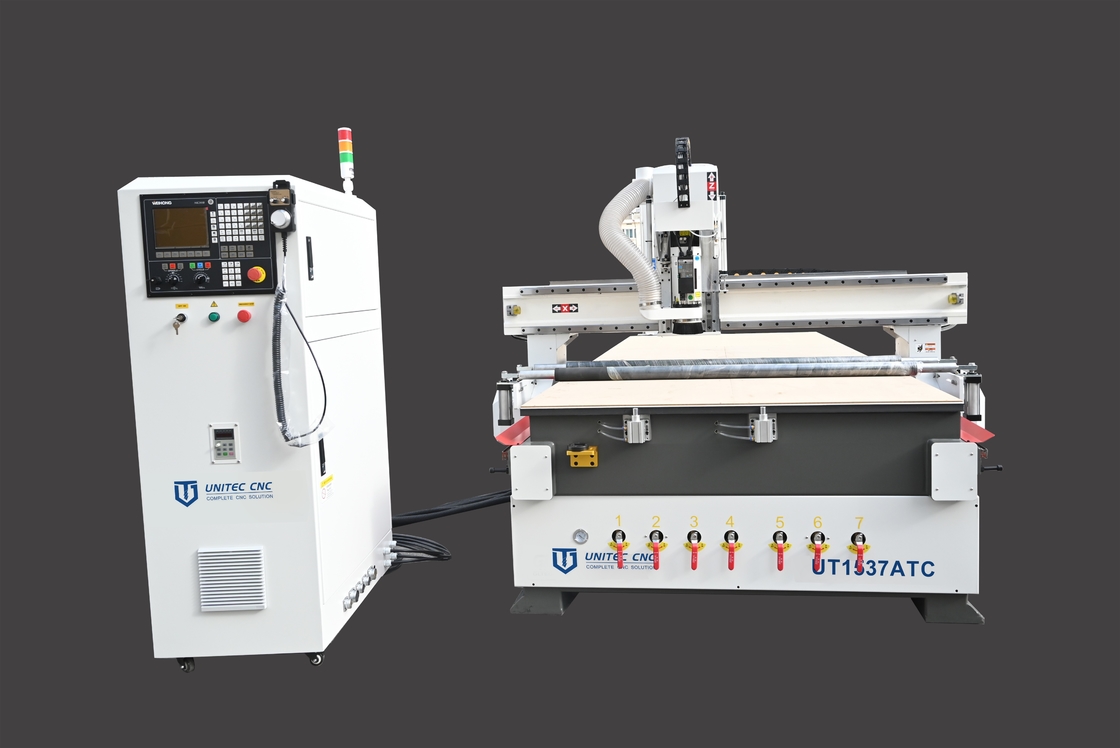

• 1500mm X 3700mm ATC CNC Router Machine 50HZ For Cutting Wood MDF PVC
1500mm X 3700mm ATC CNC Router Machine 50HZ For Cutting Wood MDF PVC

1500mm X 3700mm ATC CNC Router Machine 50HZ For Cutting Wood MDF PVC

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1530ATC
Get Best Price Contact Now

Detail Information

Working Size: 1500X3000X220mm Work Voltage: AC380V 50HZ
Table Size: 1500X3100mm Guide Rail: Linear Guide
Table Type: Vacuum Spindle Power: 9KW Italy HSD ATC Spindle
Motor: Taiwan Delta AC Servo Motor Spindle Speed: 24000rpm
High Light:

1500 X 3700 ATC CNC Router

,

Wood MDF PVC ATC CNC Router

,

50HZ ATC CNC Router

Product Description

45000mm/min 1537 ATC CNC Router Machine



Product Application


Furniture Decoration industry:A large area flat plate engraving, wood, panel furniture carving, wood art murals, wood cabinet doors carving.
Wood Products Processing: Sewing machine table,electrical counter table, sports equipment.
Artwork : Photo Frame, jewelry box.
Musical instrument industry : instrument three-dimensional surface engraving, shape cutting.



Main Features


1. whole lathe bed is in steel structure of high stability.
2. Rocks and gear transmission with high speed motors keeps smooth movement in fast and accuracy .
3. Breakpoint restoring function enable the machine continue to work after the sudden stop,such as accident ,tool breaking.
4. Wide software compatibility with processing files generated by Type3,ArtCAM,Artcut,AutoCAD,JDPaint etc.CAD/CAM design software.
5. Auto lubrication system lubticating tracks automatically,ensures machine’s precision and service time.



Applications and Material



Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc

Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc

ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel



Working Size 1500X3700X220mm
Table Size 1500X3800mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear guide
Table Type Vacuum
Vacuum pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9KW Italy HSD ATC Spindle
Spindle Speed 24000rpm
Tool changer Carrousel ATC with 12 tools positions
Max Travel Speed

45000mm/min

Max Working Speed 20000mm/min
Motor Taiwan Delta AC Servo Motor
Work Voltage AC380V 50HZ
Controller System Ncstudio / Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G Code/PLT Code
Overall Weight 2200KG
Overall Dimension 2250X3500X1900mm


Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
