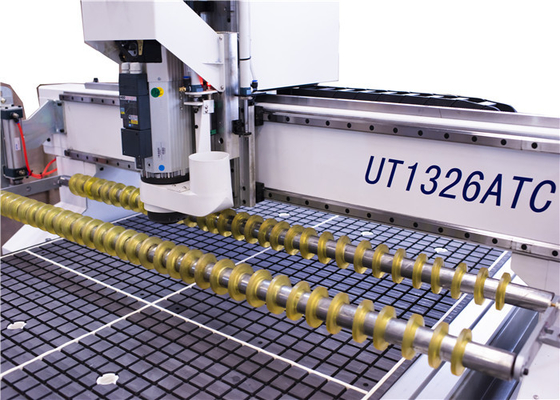

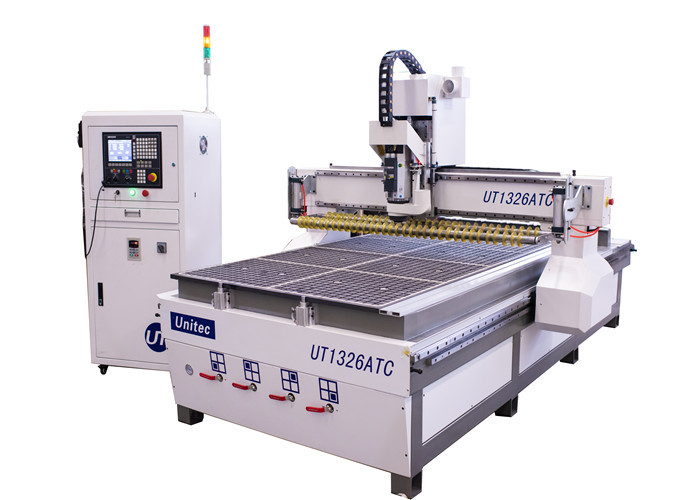

24000rpm Woodworking Router Machine

24000rpm Woodworking Router Machine
24000rpm Woodworking Router Machine 24000rpm Woodworking Router Machine

Large Image :  24000rpm Woodworking Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1326ATC
Detailed Product Description
XYZ Travel Size: 1350X2900X220mm Drive Motors: Stepper Motor, Servo Motor For Option
Table Size: 1300X2600mm Guide Rail: Linear Guide
Table Type: Vacuum Spindle Power: 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle
Tool Changer: Linear Tool Changer Spindle Speed: 24000rpm
High Light:

1326 Woodworking Router Machine

,

1300X2600mm Woodworking Router Machine

,

24000rpm Woodworking Router Machine

UT1326ATC 1326 Cnc Woodworking Router Engraver Machine



introduction

· The cnc router 1326 machine is specially designed for woodworking industrial

· All components used are top quality.

· Three 3kw water cooling spindle.

· Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.

Features

· Working area:1300*2500*200mm

· Control system:Ncstudio control system

· Inverter: 3.7kw Taiwan FULING inverter, the best brand in China.

· Transmission:X,Y axis #20 HINWIN square linear guide,Helical rack gear.Z axis #20 HINWIN linear guide,Taiwan TBI ball screw.

· Working surface:T-slot , vacuum working table for option

· Optional parts:5.5kw vacuum pump,3kw double bag dust collector, rotary device





  • Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
  • Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
  • ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel



XYZ Travel Size 1350X2900X220mm
Max Working Size 1300X2600X160mm
Table Size 1300X2600mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm



Max Travel Speed

40000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System / Ncstudio or Syntec



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 1800KG
Overall Dimension 2000X3600X1900mm


Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.

24000rpm Woodworking Router Machine 0
