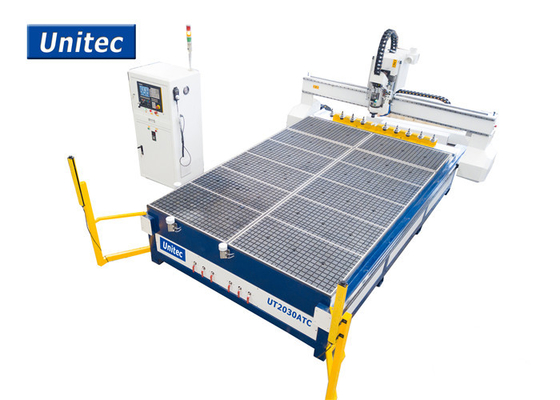

2mx3m 18000rpm Liner ATC Wood Furniture CNC Router

2mx3m 18000rpm Liner ATC Wood Furniture CNC Router
2mx3m 18000rpm Liner ATC Wood Furniture CNC Router 2mx3m 18000rpm Liner ATC Wood Furniture CNC Router

Large Image :  2mx3m 18000rpm Liner ATC Wood Furniture CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2030

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Table Type: T Slot Max Working Size: 2000X3000X120mm
Table Size: 2200X3000mm Transmission Type: XY/Z XY Rack/ Z Ball Screw
Guide Rail: Linear Guide XYZ Travel Size: 2020X3020X150mm
Spindle Power: 3KW/5.6EL 3KW China Water Cool Spindle Or 5.6kw Italy Elte Spindle Spindle Speed: 24000/18000rpm
High Light:

2mx3m Furniture CNC Router

,

18000rpm Furniture CNC Router

,

Linear ATC CNC Router Machine

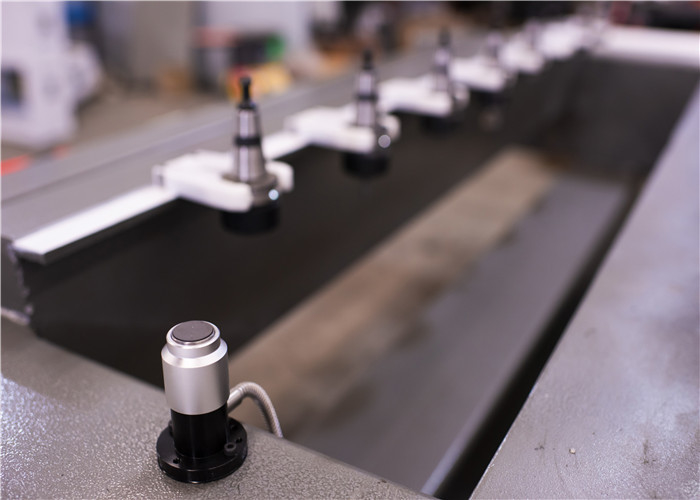

UT2030 Liner Atc 2030 Wood Furniture Making CNC Router With Ce​



Advantage
1. Machine base is produced by CNC machine, and the machine base's five sides are produced at one same procession to make sure the machine body geometry tolerance is standard.

2. The unique reality of the 3-axis screw, the machining accuracy is more accurate.

3. The router spindle is very high precision and water-cooled. which keeps the spindle at a constant temperature and maintains longevity.

4. DSP A11 control system easy to learn, you can process what you want in a very short time.

5. Provide five basic types of router bits: These are the standard router bits that are commonly used with handheld routers and are readily available at home centers.

6. Processing size can be selected :1500x3000mm and 2000x3000mm is option.





Our comapany is a professional manufacturer of engraving machines,cuting plotters,marble CNC routers,laser engraving machines and mold engraving machines,We offer ODM OEM serivice to meet your need.If you are interested in our products.pls don`t hestate and kindly send email to us to communicate more business.



1. Durable Structure And Aluminum table
Cast iron lathe bed.Aluminum with PVCworking table Stable Running with less vibration.

2.  Strong Gantry Design

With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.

3. Large Power Water Cooling Spindle

Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate,iron plate engraving but also for woodworking.It can cut 20-30mm thickness acrylic by one time cutting.The fine engraving is more smoothly and clear by large power spindle.

4. Guide Rail And Transmission

XYZ three axis are with linear square guide rail,Hiwin,Taiwan.Ball screws transmission for all axis.Durable running with Higher accuracy.

5. Dust-Proof Design For XZ -Axis
Dust-Proof design for xZ-axis,protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.

6. Famous Motor And Driver

China famous leadshine steppermotor and Leadshine stepper driver for xYZ-axis,high precision, fast speed and more stable,dual motor Driven Y axis with traveling speed up to more than 10000mm/min.

7. Control System
Nc-studio control system,supporting xYZ-axis moving together, showing the processing path more convenient. Besides, we also have other optional controller,such as Mach 3, DSPA11E, etc.

8. High End Toolbox
Rationalized placement of the electronic parts Optimized heat dissipation effect.Adopt high quality electronic parts,minimizing fault rate, Adopt hi h flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.

9. Favorable Compatibility Softwares
Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.



XYZ Travel Size 2020X3020X150mm
Max Working Size 2000X3000X120mm
Table Size 2200X3000mm
Transmission Type XY/Z XY Rack/ Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power 3KW/5.6EL 3KW China Water Cool Spindle or 5.6kw Italy Elte Spindle
Spindle Speed 24000/18000rpm
Max Travel Speed 14000mm/min
Max Working Speed 12000mm/min
Motor / Stepper motor or Servo Motor
Work Voltage AC380V 50HZ
Controller System /DSP Ncstudio or DSP
Processing Accuracy 0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 1800KG
Overall Dimension 2650X4500X1600mm



Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. mach3 controller with usb port. you can use your laptop to control machine

Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.



2mx3m 18000rpm Liner ATC Wood Furniture CNC Router 02mx3m 18000rpm Liner ATC Wood Furniture CNC Router 1

2mx3m 18000rpm Liner ATC Wood Furniture CNC Router 22mx3m 18000rpm Liner ATC Wood Furniture CNC Router 32mx3m 18000rpm Liner ATC Wood Furniture CNC Router 42mx3m 18000rpm Liner ATC Wood Furniture CNC Router 5

2mx3m 18000rpm Liner ATC Wood Furniture CNC Router 6
