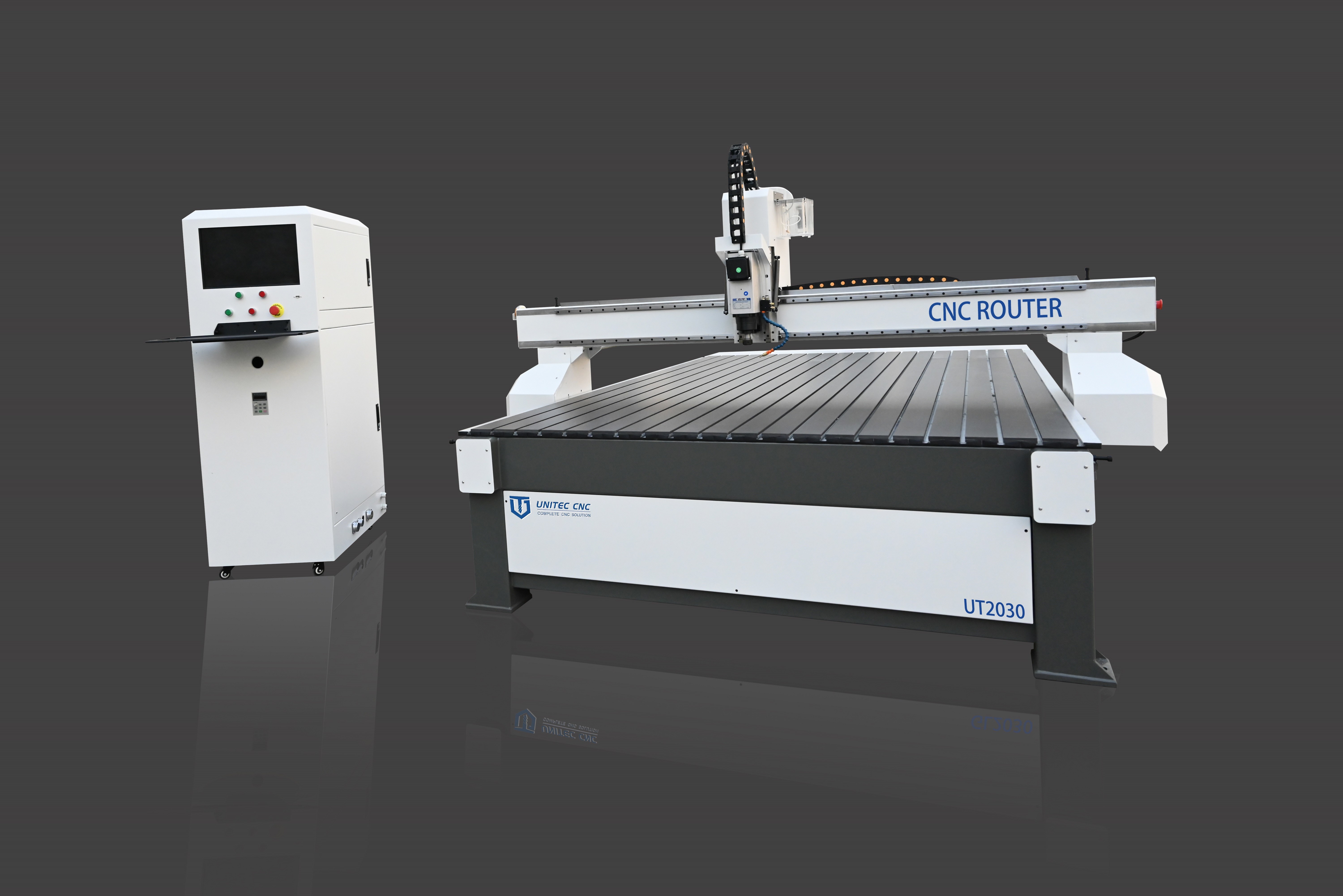

High Speed Sign Making CNC Router Linear Guide With Hybrid Servo T Slot
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT2030 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Plywood+Steel pipe |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Working Size: | 2000mm X 3000mm | Spindle: | 6KW Italy HSD |
|---|---|---|---|
| Table: | T Slot | Guide Rail: | Taiwan CSK |
| Controller: | Ncstudio Or DSP | ||
| High Light: | High Speed CNC Router,Linear Guide Sign Making CNC Router,CNC Router with hybrid servo |
||
Product Description
CNC Router UT2030 Features
- Gantry – Style CNC Machine for processing Acrylic,PVC,solid wood, MDF/Particle board panels, plastics, aluminium and composite materials.
- High performance (industry proven) precision main router spindle
- Heavy-duty solid steel machine frame construction.
- Reliable and cost effective CNC Router solution
| XYZ Travel Size | 2020X3020X150mm | |
| Max Working Size | 2000X3000X120mm | |
| Table Size | 2200X3000mm | |
| Transmission Type | XY Rack/ Z ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | T slot | |
| Spindle Power | 3KW China Water Cool Spindle or 5.6kw Italy Elte Spindle | |
| Spindle Speed | 24000/18000rpm | |
| Max Travel Speed | 14000mm/min | |
| Max Working Speed | 12000mm/min | |
| Motor | Hybrid Servo Motor | |
| Work Voltage | AC380V 50HZ | |
| Controller System | Ncstudio or DSP | |
| Processing Accuracy | ±0.05mm | |
| Repeat Positioning Accuracy | ±0.01mm | |
| File Format | G code or PLT | |
| Overall Weight | 1800KG | |
| Overall Dimension | 2650X4500X1600mm | |
