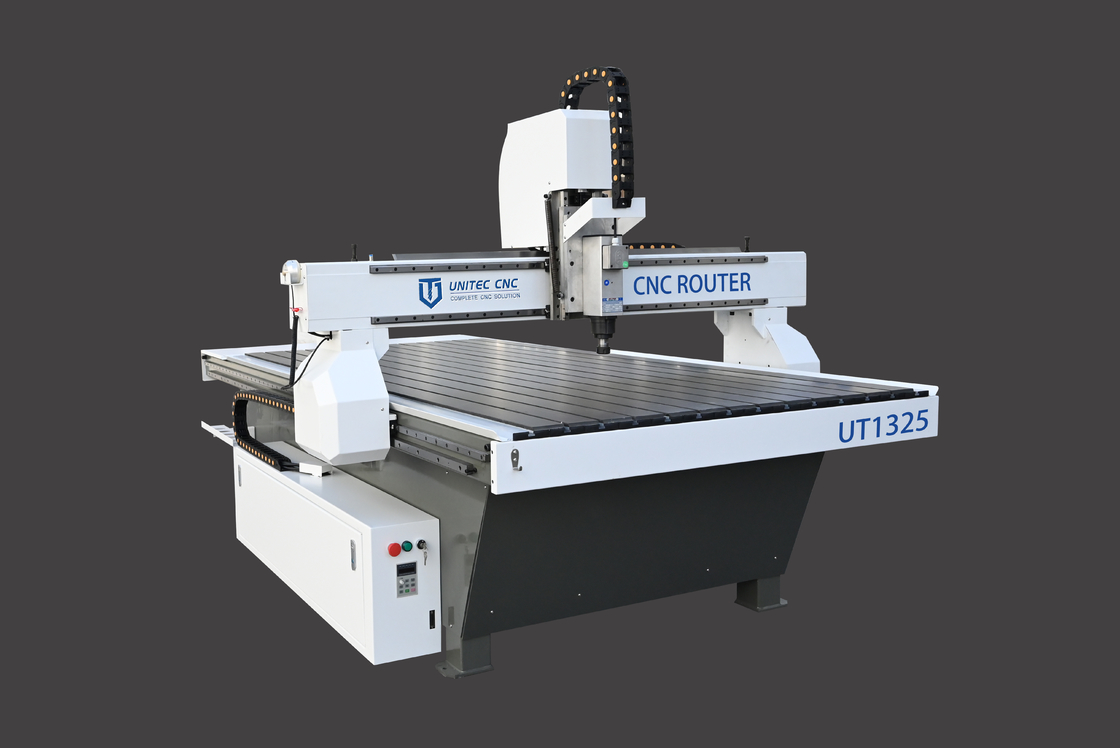

Wood Engraving Machine 4x8 CNC Router Table With Italy Spindle T Slot

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

Wood Engraving Machine 4x8 CNC Router Table With Italy Spindle T Slot

Wood Engraving Machine 4x8 CNC Router Table With Italy Spindle T Slot
Wood Engraving Machine 4x8 CNC Router Table With Italy Spindle T Slot

Large Image :  Wood Engraving Machine 4x8 CNC Router Table With Italy Spindle T Slot

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: steel pipe+plywood
Supply Ability: 100 units per month
Detailed Product Description
Working Size: 1300mm X 2500mm Spindle: 5KW Italy Colombo Spindle
Table: T Slot Controller: Ncstudio Or DSP
High Light:

Wood Engraving Machine CNC Router

,

CNC Router Table With Italy Spindle

,

T slot Sign Making CNC Router

UT1325



Description

Quality CNC Wood Router Table for sale. This CNC machine with Italy spindle & 4x8 table, it adopts ordinary aluminum T-slot working table and Italy spindle. With the features of low cost and being good at 2D/3D wood engraving & carving, it is suitable for cabinet, doors making, etc.



Features

1. CNC Wood Router Table is equipped with original Italy HSD spindle, powerful and quality guaranteed;

2. WEI HONG control system is a very good choice for this kind 3 Axis CNC wood router table;

3. Designed with heavy-duty frame and gantry, this CNC Wood Router Table works stably;

4. With automatic oil mist cooling, it prolongs the lifetime of the bits and ensures the carving quality



XYZ Travel Size 1320X2520X150mm
Max Working Size 1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power 5.6KW Italy Elte spindle
Spindle Speed 24000/18000rpm
Max Travel Speed 14000mm/min
Max Processing Speed 12000mm/min
Motor Stepper or Servo
Work Voltage AC380V 50HZ
Controller System Ncstudio or DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1100KG
Overall Dimension 1950X3000X1600mm
