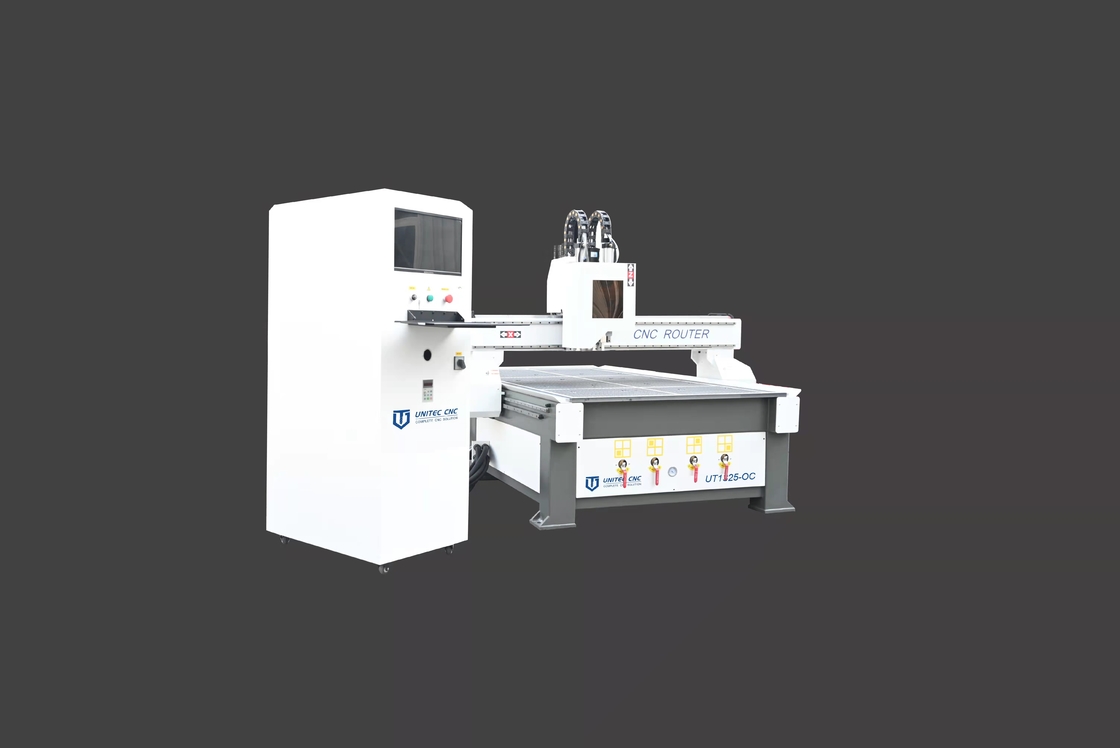

4 X 8 Sign Making CNC Router T Slot With Oscillating Knife 1300mm X 2500mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1325-OC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Plywood and Steel pipe |
|
Detail Information |
|||
| Working Size: | 1300mm X 2500mm | Spindle: | 2.2kw Italy Elte Spindle |
|---|---|---|---|
| Oscillating Knife: | Leyu Oscillating With CCD Camera | Table: | T Slot |
| Motor: | Easy Servo | Controller: | Leyu Controller |
| High Light: | Sign Making CNC Router T Slot,1300mm X 2500mm Sign Making CNC Router,Sign CNC Router With Oscillating Knife |
||
Product Description
Applications and Materials
Sign Industry: Signs, KT Board, PVC, foam, plastic, leather, EVA, corrugated panel, etc.
Highlights
1. Strong machine frame with 8mm thick steel pipe
2. High power spindle for hard material processing
3. Stable performance and long life electric parts
4. High resolution CCD camera
5. Friendly using controller
|
Max Working Size |
1300X2500X120mm | |
| Table Size | 1400X2500mm | |
| Transmission Type | XY rack/Z ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | T slot | |
| Spindle Power |
3KW China water cool or 5.6KW Italy Elte spindle |
|
| Spindle Speed | 24000/18000rpm | |
| CCD Camera | Leyu CCD camera | |
|
Max Travel Speed |
14000mm/min | |
|
Max Processing Speed |
12000mm/min | |
| Motor |
Stepper or Servo |
|
| Work Voltage | AC380V 50HZ | |
|
Controller System |
Leyu Controller | |
|
Processing Accuracy |
±0.05mm | |
|
Repeat Positioning Accuracy |
±0.01mm | |
| File Format | G code or PLT | |
| Overall Weight | 1100KG | |
|
Overall Dimension |
1950X3000X1600mm |
