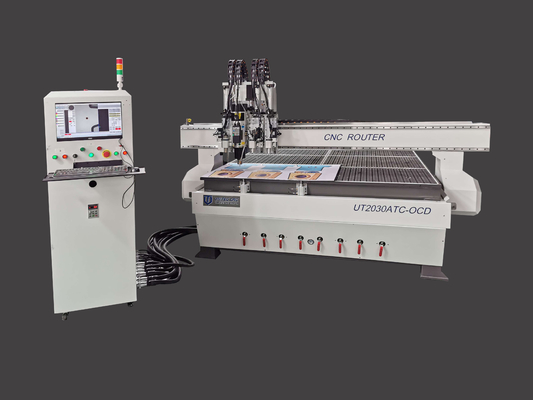

Multifunctional DSP Controller Sign Making ATC CNC Router Oscillating Knife With CCD

Multifunctional DSP Controller Sign Making ATC CNC Router Oscillating Knife With CCD
Multifunctional DSP Controller Sign Making ATC CNC Router Oscillating Knife With CCD Multifunctional DSP Controller Sign Making ATC CNC Router Oscillating Knife With CCD

Large Image :  Multifunctional DSP Controller Sign Making ATC CNC Router Oscillating Knife With CCD

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2030ATC-OCD

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: steel pipe+plywood
Supply Ability: 100 units per month
Detailed Product Description
Working Size: 2m X 3m Spindle: 9KW HQD ATC Spindle+Oscillating+CCD
Table: Vacuum Table Motor: Taiwan Delta Servo Motor
Tool Changer: Linear ATC Controller: Leyu
High Light:

DSP Controller Sign Making CNC Router

,

multifunctional ATC CNC router machine

,

CNC Router With CCD

UT2030ATC-OCD



Description

This is a multifunctional ATC CNC router machine with a CCD camera system. Besides, it is also equipped with an oscillating cutter on the head. Therefore, this automatic tool changing CNC router machine can cut not only common wooden boards but also flexible and soft materials, like paper, leather, fabric, etc. Furthermore, the CCD camera system can detect the edges of images automatically, which help cut out irregular shapes of printed boards.



Features

1. Using a new type CCD system, it can scan the image edges with strong recognition ability, fast positioning speed, and high positioning accuracy. This helps to cut out irregular printed shapes from a wooden board.

2. The oscillating cutter enables this CNC machine to cut various flexible materials, such as fabric, leather, cloth, paper, rubber, etc.

3. It can cut out large-area images from a wooden board automatically, precisely and quickly. One operator can run several machines at the same time, which saves human labor and improves work efficiency.

4. Equipped with a 18000rpm automatic tool change spindle, it can change tools fast with low noise and large torque.


XYZ Travel Size 2100X3300X210mm
Max Working Size 2000X3000X180mm
Table Size 2100X3100mm
Transmission Type XY rack/ Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9KW China ATC spindle or Italy HSD ATC spindle
CCD With edge detecting function
Oscillating 3mm amplitude
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm
Max Travel Speed 40000mm/min
Max Work Speed 25000mm/min
Motor Taiwan Delta AC servo motor
Work Voltage AC380V 50HZ
Controller System Leyu Controller
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 2400KG
Overall Dimension 2650X3800X1900mm
