|Guide Rail:||Linear Guide||Table Size:||2050X3100mm|
|XYZ Travel Size:||2000 X 3000 X 220mm||Table Type:||Vacuum|
|Max Working Size:||2000 X 3000 X 220mm||Transmission Type:||XY/Z XY Rack/ Z Ball Screw|
|Vacuum Pump:||7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump||Spindle Power:||9KW Italy HSD ATC Spindle|
|Controller:||Ncstudio Or Syntec|
2030 Wood Carving CNC Router,
2050X3100mm Wood Carving CNC Router,
9KW Wood Carving CNC Router

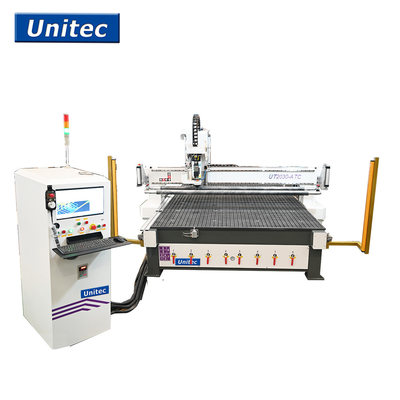

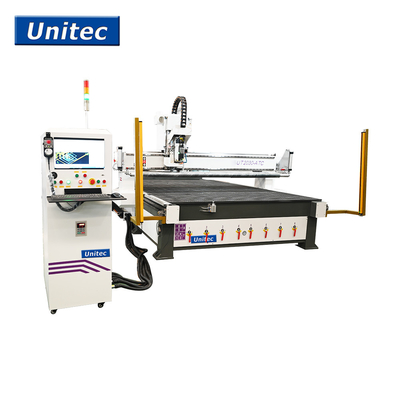

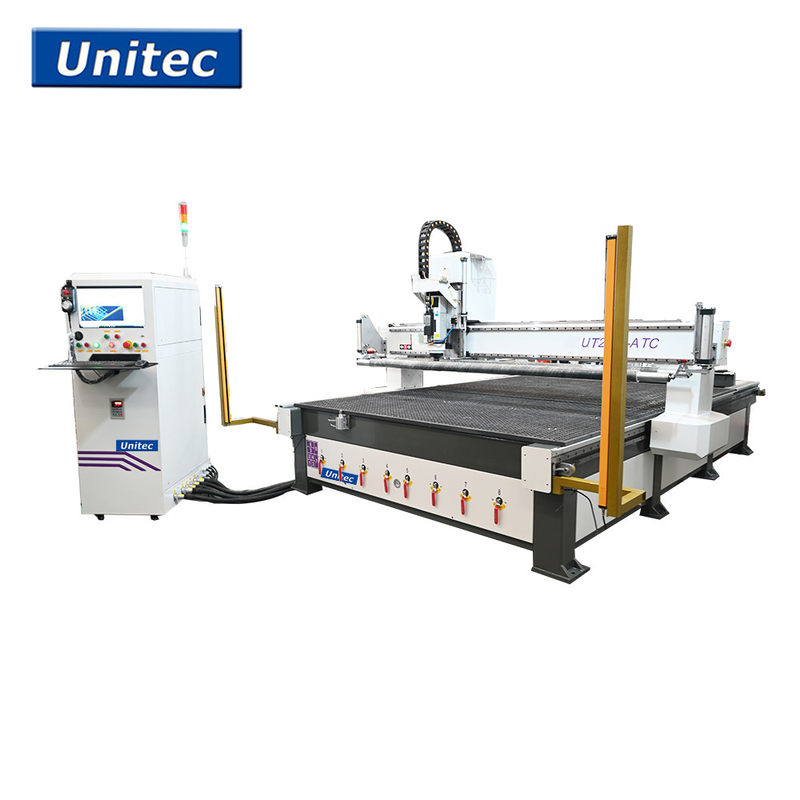

UT2030 Wood Carving 2030 Atc CNC Router Linear Type with 8 Tool Magazine
CNC Wood Routers are used for woodworking such as hollow wood caving, relief wood carving, plane wood carving, 3D wood carving, Furniture production, etc.
1. If you are engaged in arts, gifts, crafts, signs, marks, logos, moulds, models, boxes, etc. for advertising, home using or school teaching, the Small CNC Router is your best choice.
2. If you work on wood production, such as solid wood door, Craft wood door, MDF door, screens, windows, table and chairs, Cabinet, Room decoration, etc. A standard CNC Router will help you to complete these woodworking works, of course, A standard CNC Router can do what a Small CNC Router does.
3. If your woodworking works need to process the panel work above, and also need to do arc carving, such as wood moulds, foam molds, etc. It need 4 axis swing head.
4. If you do some woodworking works like customized panel furniture production, we also have Intelligent CNC Routers with auto nesting software, it has full functions of automatically uploading and downloading, automatically nesting, labeling, optimizing, vertical drilling, slotting, grooving, cutting, carving and engraving, etc.
1. Durable Structure And Aluminum table
Cast iron lathe bed.Aluminum with PVCworking table Stable Running with less vibration.
2. Strong Gantry Design
With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.
3. Large Power Water Cooling Spindle
Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate,iron plate engraving but also for woodworking.It can cut 20-30mm thickness acrylic by one time cutting.The fine engraving is more smoothly and clear by large power spindle.
4. Guide Rail And Transmission
XYZ three axis are with linear square guide rail,Hiwin,Taiwan.Ball screws transmission for all axis.Durable running with Higher accuracy.
5. Dust-Proof Design For XZ -Axis
Dust-Proof design for xZ-axis,protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.
6. Famous Motor And Driver
China famous leadshine steppermotor and Leadshine stepper driver for xYZ-axis,high precision, fast speed and more stable,dual motor Driven Y axis with traveling speed up to more than 10000mm/min.
7. Control System
Nc-studio control system,supporting xYZ-axis moving together, showing the processing path more convenient. Besides, we also have other optional controller,such as Mach 3, DSPA11E, etc.
8. High End Toolbox
Rationalized placement of the electronic parts Optimized heat dissipation effect.Adopt high quality electronic parts,minimizing fault rate, Adopt hi h flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.
9. Favorable Compatibility Softwares
Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
XYZ Travel Size
|2000 X 3000 X 220mm|
Max Working Size
|2000 X 3000 X 220mm|
|Table Size||2050 X 3100mm|
|Transmission Type||XY/Z XY rack/ Z ball screw|
|Guide Rail||Linear Guide|
|Vacuum Pump||7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump|
|Spindle Power||5.6KW Italy Elte Spindle or China Spindle|
|Knife System||Oscillating + Creasing|
Max Travel Speed
|Max Work Speed||25000mm/min|
|Motor||Easy Servo otor|
|Work Voltage||AC380V 50HZ|
|Controller System||China Leyu Or Taiwan Syntec|
Repeat Positioning Accuracy
|File Format||G/PLT G code or PLT|
|Overall Dimension||3700 X 2300 X 2000mm|
1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.
make these model machine working very stable and more durable.
2. Iron casting table body insure machine movement of working more stable and low noisy.
3. mach3 controller with usb port. you can use your laptop to control machine
Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.
Suitable for Materials:
Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.
