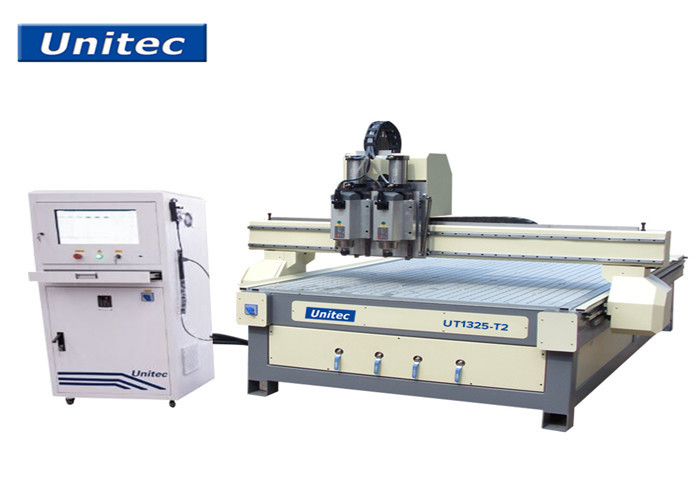

Furniture Decoration 1500X2500mm Multi Spindle CNC Router

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

Furniture Decoration 1500X2500mm Multi Spindle CNC Router

Furniture Decoration 1500X2500mm Multi Spindle CNC Router
Furniture Decoration 1500X2500mm Multi Spindle CNC Router

Large Image :  Furniture Decoration 1500X2500mm Multi Spindle CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325-T2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Table: Vacuum Table With 4.8KW China Pump And Dust Clean System Table Size: 1500X2500mm
XYZ Working Size: 1350X2550X180 Spindle Power: 2 X 5.6KW ELTE / 6.0KW HSD/ 5.0KW GC
Transimission: Helical Rack And Pinion; Taiwan Linear Guide Rail Motor: Easy Servo
Controller: Original Ncstudio/DSP/MACH3 Max.Travel Speed: 18000mm/min
High Light:

1325 Multi Spindle CNC Router

,

1500X2500mm Multi Spindle CNC Router

,

15KW Woodworking CNC Router

UT1325-T2 Multi-use 1325 cnc machine for furniture cnc router with 4 spindles for woodworking



That double spindle multi head Working independently cnc router machine 1325 is perfect for you, it can achieve the simultaneous processing of the sheet on the table, double the processing efficiency. A machine can process large plates and process small plates efficiently, but the price is far lower than the price of three machines, which is very high-cost performance.




This is a multi-spindle engraving machine with 4 spindles. 4 spindles CNC is much more economic than ATC, so it is good model to choose if you are in furniture industry. The 4 spindles are automatically changed according to the processing requirements, which greatly saves the time of manual tool change and also improves the production efficiency accordingly.



Features:
1. With air cooling spindle, and the working speed can reach to 18000RPM for per minutes.
2. With heavy duty frame and gantry; the machine was designed for durable.
3. Automatic tool sensor, save time and increase efficiency.





Table size 1500X2500
XYZ working size 1350X2550X180
Table vacuum table with 4.8KW China pump and dust clean system
Transimission Helical rack and pinion; Taiwan Linear Guide Rail
Motor easy servo
Spindle Power 2 x 5.6KW ELTE / 6.0KW HSD/ 5.0KW GC
Max.Travel Speed 18000mm/min
Controller original ncstudio/DSP/MACH3
File Format .u00/.nc
Software router8
Voltage 380V/50~60HZ
Total Power Consumption 15KW
Machine Net Weight 1400KG
Overall Dimension 2100X3000X1750



1. Fission key board control,ensure users operate easily.

2. Advanced Taiwan control system,Intelligent processing cross-border protection function,can prevent mechanical impact caused by the improper design documents. and control the processing speed,improve the processing efficiency .

3. Dust collection suck the wood chips,keep the working table clean. Vacuum table can absorb the material, save the plate loading and unloading time.

4. Advanced file preprocessing function,help users to correct errors in a timely. And be compatible with several CAD/CAM designing software

5. Recover caving point after break of disconnecting power.Automatic error correction function guarantee the engraving precision for long time processing.

6. Lathe bed welded with seamless steel tube,not easy to be deformed.



1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



1) Double head with separate motors, higher working efficiency and better machining performance.

2) NC control system, can operate the machine very well.

3) Thick steel tube seamless welding structure make sure high working speed, and will not bend after long time use.

4) Vacuum absorption table with T-slots, hold the processing material tightly and easily. Separate vacuum block is suitable for different sized materials.
