Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

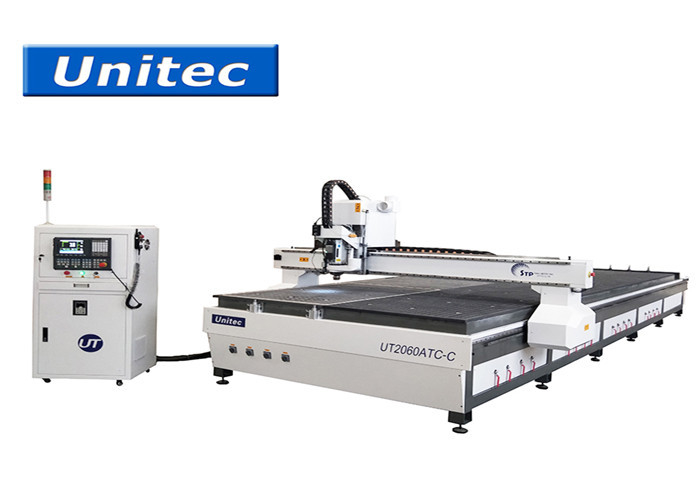

Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine

Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine
Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine

Large Image :  Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2060
Detailed Product Description
XYZ Travel Size: 2050X6000X220mm Max Working Size Voltage: 2000X6000X160mm
Table Size: 2000X6000mm Transmission Type: XY/Z XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: Vacuum
Vacuum Pump: 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump Spindle Power: 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle
High Light:

Unitec ATC CNC Router Machine

,

3200KG ATC CNC Router Machine

,

3200KG Wood Cnc Router

UT2060 wood cnc router atc woodworking machinery china linear atc cnc router 1530C



Features

  • This type cnc router is high configuration, large working table, very suitable for various kinds of material processing, like wood, mdf, aluminum, acrylic, cooper etc.
  • Carrousel type automatic tool changing is very high effciency and convenient for processing different kinds of pattern, design on materials.
  • High quality international spare parts, if you are looking for Best Performance Fully Automatic CNC Router, this type will be your best choice.

Applications and Material

  • Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
  • Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
  • ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel



XYZ Travel Size

2050X6000X220mm



Max Working Size

2000X6000X160mm
Table Size 2000X6000mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm



Max Travel Speed

40000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System / Ncstudio or Syntec



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 3200KG
Overall Dimension 2700X3800X1900mm




Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.

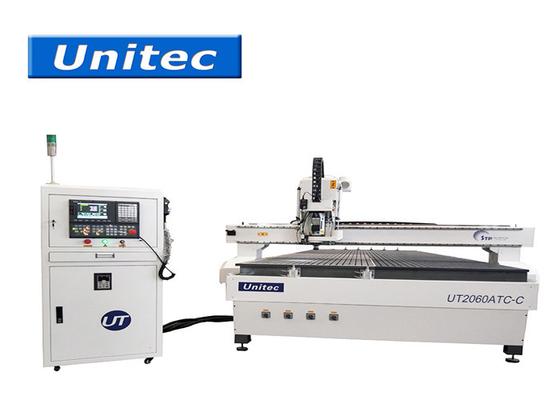

Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine 0Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine 1Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine 2Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine 3Linear Guide 3200KG 2000X6000mm ATC CNC Router Machine 4
