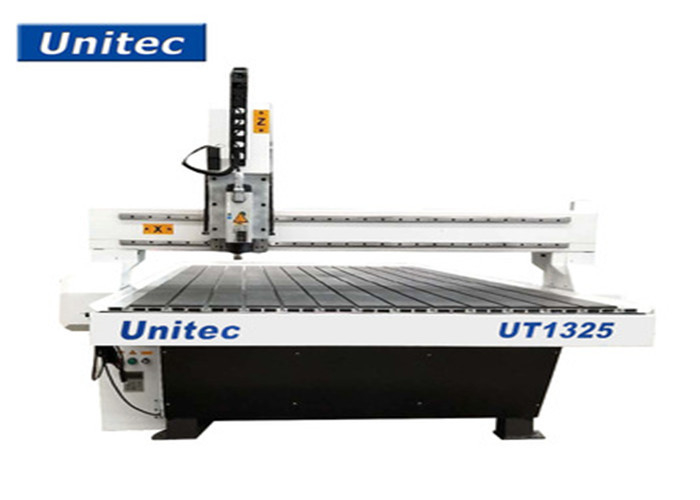

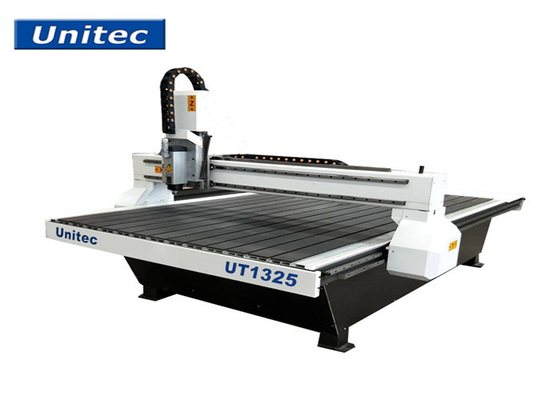

1400X2500mm 4*8FT 12000mm/min Sign Making CNC Router

1400X2500mm 4*8FT 12000mm/min Sign Making CNC Router
1400X2500mm 4*8FT 12000mm/min Sign Making CNC Router 1400X2500mm 4*8FT 12000mm/min Sign Making CNC Router

Large Image :  1400X2500mm 4*8FT 12000mm/min Sign Making CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325A-OC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Guide Rail: Linear Guide Table Type: T Slot
XYZ Travel Size: 1320X2520X150mm Spindle Power: 3KW/5.6EL 3KW China Water Cool 5.6KW Italy Elte Spindle
Spindle Speed: 24000/18000rpm Max Working Size: 1300X2500X120mm
Table Size: 1400X2500mm Transmission Type: XY/Z XY Rack/Z Ball Screw
High Light:

4*8FT Sign Making CNC Router

,

12000mm/min Sign Making CNC Router

,

UT1325A Wood Router Engraving Machine

1325 CNC Router 4*8FT CNC Carving Machine Router with Cheap Price



Our comapany is a professional manufacturer of engraving machines,cuting plotters,marble CNC routers,laser engraving machines and mold engraving machines,We offer ODM OEM serivice to meet your need.If you are interested in our products.pls don`t hestate and kindly send email to us to communicate more business.



1. 2/3/4 shift spindles, with air cooling spindle,the three spindles can work one by one automatically, so this machine can finish three different work on one board without changing tools by hands.

2. The machine adopts gantry movement, it can process any kinds of materials freely.

3. compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Ucancam etc.

4. Has the function of re-carving after break point and power failure.

5. Has the function of forecasting process time.

6. Adopting advanced NcStudio control system, work together with computer.

7. Perfect oil-inject system makes maintenance much easier.

8. dust-collect function. It will clean up the carving residuum and make the operations tidier and more





XYZ Travel Size

1320X2520X150mm



Max Working Size

1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power

3KW/5.6EL 3KW China water cool

5.6KW Italy Elte spindle

Spindle Speed 24000/18000rpm
  Leyu Oscillating Head + CCD camera



Max Travel Speed

14000mm/min



Max Processing Speed

12000mm/min
Motor

/

Stepper or Servo

Work Voltage AC380V 50HZ



Controller System

Leyu Controller



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT; G code or PLT
Overall Weight 1100KG



Overall Dimension

1950X3000X1600mm



Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. mach3 controller with usb port. you can use your laptop to control machine

Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.



1400X2500mm 4*8FT 12000mm/min Sign Making CNC Router 01400X2500mm 4*8FT 12000mm/min Sign Making CNC Router 1

1400X2500mm 4*8FT 12000mm/min Sign Making CNC Router 21400X2500mm 4*8FT 12000mm/min Sign Making CNC Router 31400X2500mm 4*8FT 12000mm/min Sign Making CNC Router 41400X2500mm 4*8FT 12000mm/min Sign Making CNC Router 5

1400X2500mm 4*8FT 12000mm/min Sign Making CNC Router 6
