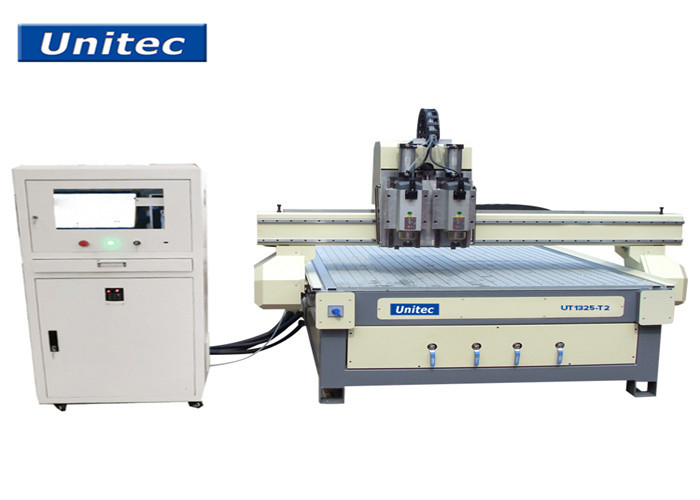

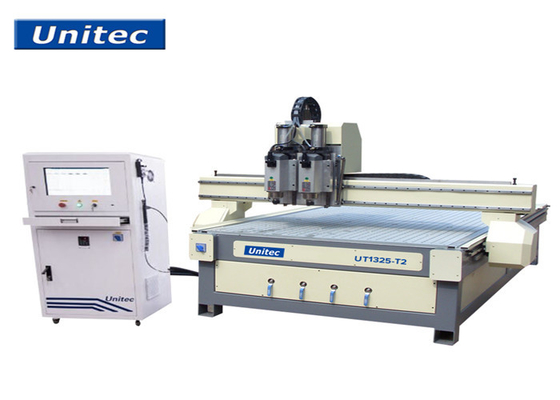

Linear Guide 1325 Multi Head CNC Woodworking Machine

Linear Guide 1325 Multi Head CNC Woodworking Machine
Linear Guide 1325 Multi Head CNC Woodworking Machine Linear Guide 1325 Multi Head CNC Woodworking Machine

Large Image :  Linear Guide 1325 Multi Head CNC Woodworking Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325-T2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Max Working Size: 1300X2500X220mm Spindle Speed: 24000/18000rpm
Spindle Power: 3KW/5.6EL 3KW China Water Cool 5.6KW Italy Elte Spindle Table Size: 1400X2500mm
Transmission Type: XY/Z XY Rack/Z Ball Screw XYZ Travel Size: 1320X2520X150mm
Guide Rail: Linear Guide Table Type: Vacuum Table
High Light:

UT1325-T2 Multi Head CNC Router

,

Unitec CNC Woodworking Machine

,

18000rpm Multi Head CNC Router

CNC Woodworking Machine Multi Heads CNC Wood Router 1325



Our comapany is a professional manufacturer of engraving machines,cuting plotters,marble CNC routers,laser engraving machines and mold engraving machines,We offer ODM OEM serivice to meet your need.If you are interested in our products.pls don`t hestate and kindly send email to us to communicate more business.



Performance feature:
1. Imported linear guide rail, double-row four columns ball bearings, huge bearing capacity, good moving stability, long lifetime. Imported ball-screw, high precision.
2. Adopting high-precision gear rack transmission, faster working and high precision.
3. Equipped with USB of remote operation and DSP operating system, lever operation is very simple and advanced.
4. Be compatible with several CAD/CAM designing software, type3, ARTCAM, CASTMATE, UCANCAM etc.
5. Adopting the international advanced technology of vacuum absorption mesa, equipped with the strongly vacuum pump, the six zones design can absorb the different area of the material strongly.
6. Adopting the stepper motor drives, Y axis adopts double motor drive to make the spindle engrave faster





XYZ Travel Size

1320X2520X150mm



Max Working Size

1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power

3KW/5.6EL 3KW China water cool

5.6KW Italy Elte spindle

Spindle Speed 24000/18000rpm
  Leyu Oscillating Head + CCD camera



Max Travel Speed

14000mm/min



Max Processing Speed

12000mm/min
Motor

/

Stepper or Servo

Work Voltage AC380V 50HZ



Controller System

Leyu Controller



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT; G code or PLT
Overall Weight 1100KG



Overall Dimension

1950X3000X1600mm



Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. mach3 controller with usb port. you can use your laptop to control machine

Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.





Linear Guide 1325 Multi Head CNC Woodworking Machine 0Linear Guide 1325 Multi Head CNC Woodworking Machine 1Linear Guide 1325 Multi Head CNC Woodworking Machine 2Linear Guide 1325 Multi Head CNC Woodworking Machine 3
