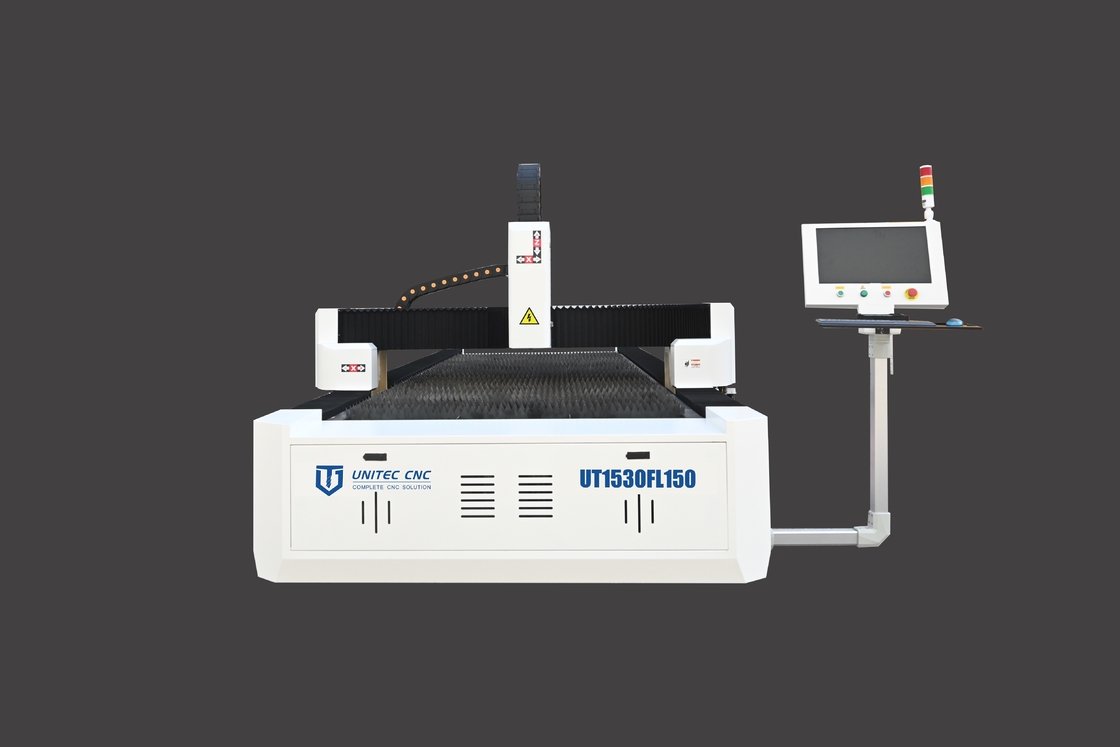

1500W Fiber Laser Cutting Machine for Sheet Metal
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1530FL150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | steel pipe |
| Supply Ability: | 100 per month |
|
Detail Information |
|||
| Processing Area: | 1500mm*3000mm | Fiber Power: | Max Or Raycus 1500W |
|---|---|---|---|
| Cooling Mode: | Water Cooling And Protection System | Resetting Positioning Accuracy: | ±0.01mm |
| Max Acceleration: | 1G | Compatible Software: | CorelDraw/AutoCAD/Photoshop/AI … |
| Whole Machine Size: | 4500*2250*2480mm | Max Traveling Speed: | 110m/min |
| High Light: | 1000W Fiber Laser Metal Cutting Machine,800KGS Fiber Laser Metal Cutting Machine,Raycus Metal CNC Cutting Machine |
||
Product Description
Economical Sheet Metal Fiber Laser Cutting Machine for Sale
* Free
Free you hands, focal length is controlled by operating system. We don’t need to do manual regulation, which effectively avoids errors or faults caused by manual operation.
* Fast
Adopt Lightning technology, perforation time is short, 90% of perforation time is saved; X,Y axis configure with high accuracy grinding type gear and rack, Japan Shimpo reducer, high speed and precision can be ensured. Z axis are transmitting by high accuracy rolling ball screw.Configure with non-contact auto follow function, ensure the best focal length and cutting effect.
* Accuracy
Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy. Professional laser cutting CNC control system, connected with computer, simple operation.
* Durable
Aerospace aluminum was manufactured using aerospace standards and extruded using a 4,300 ton press. After the aging treatment, the hardness can reach T6, which is the strongest of all beams. The aviation aluminum has good toughness, light weight, corrosion resistance, oxidation resistance and low density, which can greatly improve the processing speed.
* CypCut Controller
1. Supports three levels of perforation, segmentation or progressive combination
2. Support communication control of most mainstream lasers in the market
3. Supports basic processes such as flying cutting, leapfrog, compensation, threading, micro-connection, pre-perforation, film cutting
4.Supports capacitor patrol edge, photoelectric, electric focusing, double table, automatic cutting tube cutting, power-off memory and other advanced functions
5.Advanced technology such as cooling point, sharp corner cutting, release angle, etc.
Product Description
Fiber laser cutting machine adopts the most sophisticated Germany IPG laser, combining Gantry CNC machine designed by our company.
It has good rigidity and stability with precision ball screws, linear guide drive run. It is mainly for cutting sheet metal in high speed and high precision.
Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.
Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials' precision cutting.
It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.
Specifications
| Model | UT-F500-3015 | UT-F1000-3015 | UT-F2000-3015 |
| Laser Power | 500W | 1000W | 2000W |
| Max. Cutting Thickness | 2~3mm | 3~5mm | 8~12mm |
| Work Table Max. Load | 700 KGS | 800 KGS | 1000 KGS |
| Laser Type | Imported Fiber Laser | ||
| Laser Technology | Germany Technology | ||
| Working area | 3000 x 1500 mm | ||
| X axis Stroke | 3000 mm | ||
| Y axis Stroke | 1500 mm | ||
| Z axis Stroke | 150 mm | ||
| Max. Cutting Speed (Carbon Steel) |
12m/min (up to materials) | ||
| Transmission Way | Imported ball screw | ||
| Table-Driven System | Japanese Panasonic Servo Motor & Driver | ||
| Focus Method | Dynamic Following and Automatic Adjust Focus | ||
| Location Precision | ≤±0.05 mm | ||
| Re-Location Precision | ±0.02 mm | ||
| Max. Moving Speed | 100m/min | ||
| Laser Wavelength | 1070nm | ||
| Minimum Line Width | ≤0.1mm | ||
| Supporting Format | PLT, DXF, BMP, AI | ||
| Power Demand | 380V/50HZ | ||
| Control Method | Offline Movement Control | ||
| Control Software | Perfect Laser Professional Laser Cutting Software | ||
