1070nm 2000W Metal Laser Cutting Machine For Stainless Steel

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

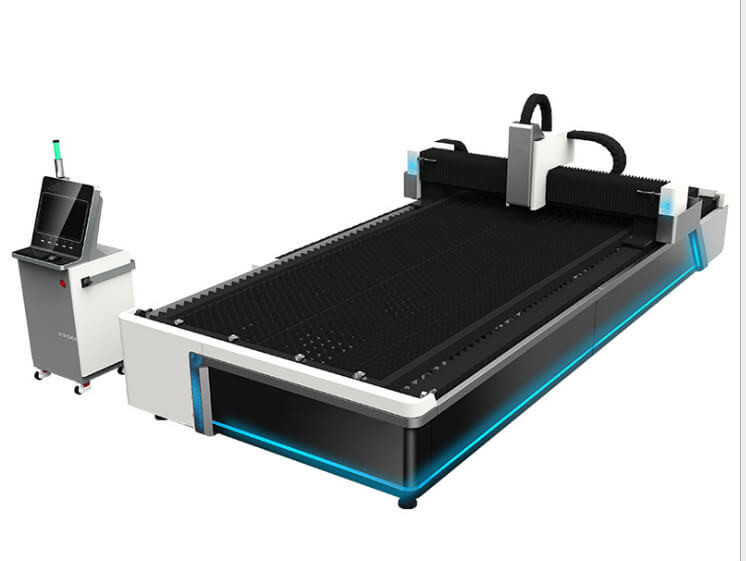

1070nm 2000W Metal Laser Cutting Machine For Stainless Steel

1070nm 2000W Metal Laser Cutting Machine For Stainless Steel
1070nm 2000W Metal Laser Cutting Machine For Stainless Steel

Large Image :  1070nm 2000W Metal Laser Cutting Machine For Stainless Steel

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1530FL200
Detailed Product Description
Processing Area: 1500mm*3000mm Fiber Power: Raycus 2000W
Cooling Mode: Water Cooling And Protection System Resetting Positioning Accuracy: ±0.01mm
Max Acceleration: 1G Compatible Software: CorelDraw/AutoCAD/Photoshop/AI …
Whole Machine Size: 4500*2250*2480mm Max Traveling Speed: 110m/min
High Light:

2KW Metal Laser Cutting Machine

,

2000W Metal Laser Cutting Machine

,

1070nm SS Laser Cutting Machine

Product Description



Fiber laser cutting machine adopts the most sophisticated Germany IPG laser, combining Gantry CNC machine designed by our company.


It has good rigidity and stability with precision ball screws, linear guide drive run. It is mainly for cutting sheet metal in high speed and high precision.


Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.


Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials' precision cutting.


It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.



MODEL NO. XM-1500*3000-1000W
Processing area 1500mm*3000mm
Fiber power Raycus 2000W
Cooling mode Water cooling and protection system
Resetting positioning accuracy ±0.01mm
Max acceleration 1G
Compatible Software CorelDraw/AutoCAD/Photoshop/AI …
Whole machine size 4500*2250*2480mm
Max traveling speed 110m/min
Driver system power Y=750W; X=750W; Z=400W
Support graphic format .LXD/.DXF/.PLT/.AI/.Gerber/.DWG ….
Gross power 20KW
Transmit system Dual Rack & Pinion type
Operating temperature 0-45℃
Operating humidity 5-95%
Gross weight 3200KG
Option Rotary attachment for column material



Specifications

Model UT-F500-1530 UT-F1000-1530 UT-F2000-1530
Laser Power 500W 1000W 2000W
Max. Cutting Thickness 2~3mm 3~5mm 8~12mm
Work Table Max. Load 1500 KGS 1500 KGS 1500 KGS
Laser Type Imported Fiber Laser
Laser Technology Germany Technology
Working area 3000 x 1500 mm
X axis Stroke 3000 mm
Y axis Stroke 1500 mm
Z axis Stroke 150 mm
Max. Cutting Speed
(Carbon Steel)
12m/min (up to materials)
Transmission Way Imported ball screw
Table-Driven System Japanese Panasonic Servo Motor & Driver
Focus Method Dynamic Following and Automatic Adjust Focus
Location Precision ≤±0.05 mm
Re-Location Precision ±0.02 mm
Max. Moving Speed 100m/min
Laser Wavelength 1070nm
Minimum Line Width ≤0.1mm
Supporting Format PLT, DXF, BMP, AI
Power Demand 380V/50HZ
Control Method Offline Movement Control
Control Software Perfect Laser Professional Laser Cutting Software
