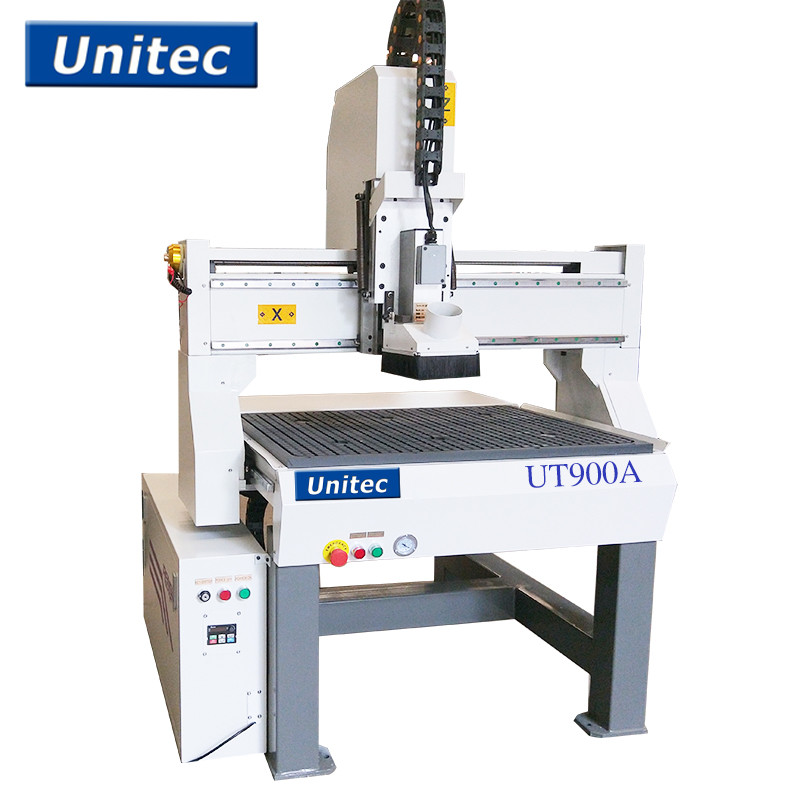

1.5KW 24000rpm Linear Guide UT900A CNC Woodworking Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

1.5KW 24000rpm Linear Guide UT900A CNC Woodworking Machine

1.5KW 24000rpm Linear Guide UT900A CNC Woodworking Machine
1.5KW 24000rpm Linear Guide UT900A CNC Woodworking Machine

Large Image :  1.5KW 24000rpm Linear Guide UT900A CNC Woodworking Machine

Product Details:

Place of Origin: Unitec
Brand Name: Unitec
Certification: ce
Model Number: UT900A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case for outer packing
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Working Size: 900X700X150mm Table Size: 900X700mm
Transmission Type: XYZ Ball Screw Guide Rail: Linear Guide
Table Type: Vacuum Spindle Power: 1.5KW China Air Cool Spindle
Motor: China Stepper Motor Work Voltage: AC220V 50HZ
High Light:

UT900A CNC Woodworking Machine

,

24000rpm CNC Woodworking Machine

,

1.5KW CNC Woodworking Machine

UT900A  Pvc Mdf Woodworking Cnc Engraving Cutting Machine



Highlights

  • Integral welded frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
  • Various of table styles make convenient clamping materials and improves overall production efficiency;
  • Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
  • Main configurations adopts imported accessories which will ensure the overall running performance.
  • Optional mister cooling system ensure the processing bits life
  • Strict compliance with CE electrical standards for circuit design and production, and all
  • Parts have safe and reliable protection device.



Technical parameters



Working Size 900X700X150mm
Table Size 900X700mm
Transmission Type XYZ ball screw
Guide Rail Linear guide
Table Type Vacuum
Vacuum pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 1.5KW China Air Cool Spindle
Spindle Speed 24000rpm
Max Travel Speed 6000mm/min
Max Working Speed 5000mm/min
Motor China Stepper Motor
Work Voltage AC220V 50HZ
Controller System Ncstudio / MACH3/DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G Code/PLT Code
Overall Weight 600KG
Overall Dimension 1350*1220*1900



Applications and Materials

Fixture Industry: Aluminum panel, Copper, Aluminum Composite Panel and some soft metal etc. Crafts Industry: Wood, Artificial Stone, Marble, Sandstone, Bamboo, PVC, Acrylic, Double Color board





Inner quality control system

  • In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
  • Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
  • 18 months guarantee of the whole machine.
  • Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
  • Lifetime maintenance free of charge.
  • We will provide the consumable parts at an agency price when you need replacement.
  • Machine has been adjusted before delivery.
  • Our staff can be sent to your company to install or adjust if necessary.



Certificate

  • CE certificated for European countries

  • CCVO SONCAP certificated for Nigeria customers

  • FTA certificate for Pakistan customers

  • SASO certificate for Saudi Arabic customers

  • Form E certificate for Indonesia and Vietname customers

Packaging & Delivery



Packaging Details:

  • Outside package: Standard marine export plywood case.
  • Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

Improved package, much more strong and environmental protection.

We can also make package according to your requests.



Delivery Detail: Shipped in 25-30 working days after payment
