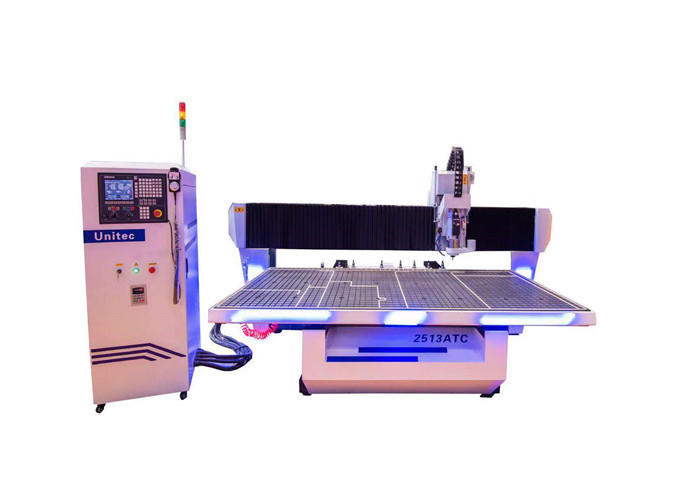

1325 2513 30000mm/min 50HZ ATC CNC Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

1325 2513 30000mm/min 50HZ ATC CNC Router Machine

1325 2513 30000mm/min 50HZ ATC CNC Router Machine
1325 2513 30000mm/min 50HZ ATC CNC Router Machine

Large Image :  1325 2513 30000mm/min 50HZ ATC CNC Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2513ATC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 15 - 25 working days
Detailed Product Description
XYZ Travel Size: 2050X6000X220mm Max Working Size Voltage: 2000X6000X160mm
Table Size: 2000X6000mm Transmission Type: XY/Z XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: Vacuum
Vacuum Pump: 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump Spindle Power: 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle
Tool Changer: Linear Tool Changer With 8 Tool Positions
High Light:

50HZ ATC CNC Router Machine

,

30000mm/min ATC CNC Router Machine

,

1325 atc cnc machine

1325 2513 Popular Export Woodworking Atc Drilling CNC Router



1. Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
2. Japanese YAKSAWA servo motor makes machine stable running with low noise, high speed and high accuracy.
3. Italy HSD spindle makes machine with high precision and long service time and stable movement.
4. Configured with imported tool magazine of 8 tools the machine can change tools speedy and freely. Changing tools in 8 seconds.
5. Tool sensor enables the machine compensate the tolerance of the tool length.
6. Strong power suction of Yongdun free-oil pump.
7. Imported Taiwan SYNTEC control system, separated keyboard control, color LCD display add machine more versatility.
8. Strong dust collector ensures site cleanliness during the machine operation.
9. Automatic lubricating system, one touch can finish periodic maintenance easily.





Applications and Material

  • Furniture Industry: wood door cabinet classic furniture panel furniture etc
  • Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
  • ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel


XYZ Travel Size

2550X1450X220mm


Max Working Size

2500X1300X160mm
Table Size 2500X1300mm
Transmission Type XYZ XYZ ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm


Max Travel Speed

30000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System / Ncstudio or Syntec


Processing Accuracy

0.05mm


Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 2200KG
Overall Dimension 3400X2200X1900mm





Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.

1325 2513 30000mm/min 50HZ ATC CNC Router Machine 01325 2513 30000mm/min 50HZ ATC CNC Router Machine 11325 2513 30000mm/min 50HZ ATC CNC Router Machine 21325 2513 30000mm/min 50HZ ATC CNC Router Machine 31325 2513 30000mm/min 50HZ ATC CNC Router Machine 41325 2513 30000mm/min 50HZ ATC CNC Router Machine 51325 2513 30000mm/min 50HZ ATC CNC Router Machine 6
