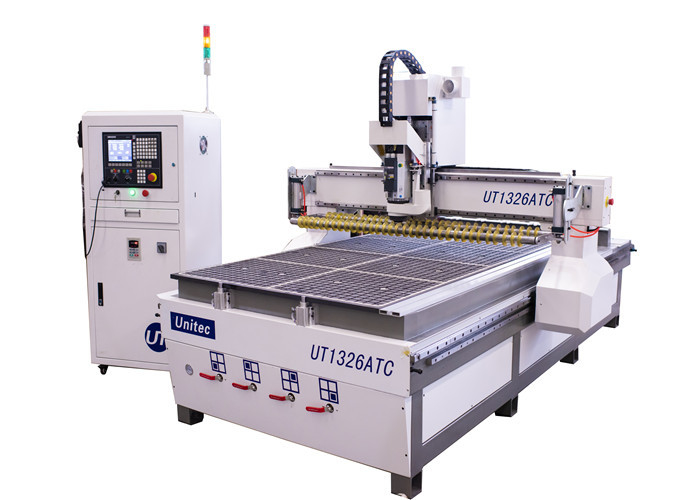

4X8 Feet Heavy Duty CNC Router With Automatic Tool Changer
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1326ATC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|
|
Detail Information |
|||
| Working Size: | 1300mm X 2500mm | Z Max Travel Height: | 220mm |
|---|---|---|---|
| Spindle: | 9KW Italy HSD ATC Spindle | Motor: | Taiwan Delta Servo Or Japan Yaskawa |
| Tool Changer: | Linear ATC With 6 Tool Positions | Table Type: | Vacuum With Pop-up Pin |
| High Light: | 4X8 Feet Heavy Duty CNC Router,4X8FT Heavy Duty CNC Router,4FTX8FT Heavy Duty CNC Router |
||
Product Description
4X8 feet heavy duty CNC Router with automatic tool changer
Applications and Material
Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel
1. OR 1224 CNC router with 4 axis, is specially for 4D work,the A axis can rotate 100degree
3. With this machine, you can make different surface carving, arc-surface milling,bending surface machining for 4D jobs,like special shaped arts, bended doors or cabinets
4. It can work on foam ,MDF,Acrylic,wood,and soft metal etc.
| XYZ Travel Size | 1350X2900X220mm |
| Max Working Size | 1300X2600X160mm |
| Table Size | 1300X2600mm |
| Transmission Type | XY/Z XY rack/Z ball screw |
| Guide Rail | Linear Guide |
| Table Type | vacuum |
| Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump |
| Spindle Power | 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle |
| Tool Changer | Linear Tool Changer |
| Spindle Speed | 24000rpm |
|
Max Travel Speed |
40000mm/min |
| Max Work Speed | 20000mm/min |
| Motor | AC servo motor |
| Work Voltage | AC380V 50HZ |
| Controller System | / Ncstudio or Syntec |
|
Processing Accuracy |
0.05mm |
|
Repeat Positioning Accuracy |
0.01mm |
| File Format | G/PLT G code or PLT |
| Overall Weight | 1800KG |
| Overall Dimension | 2000X3600X1900mm |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance
6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
