Large Format Automatic Tool Changer 9kw Atc Cnc Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

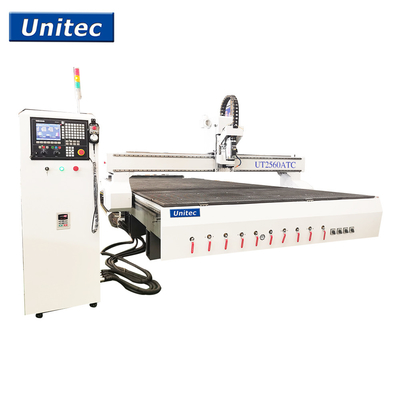

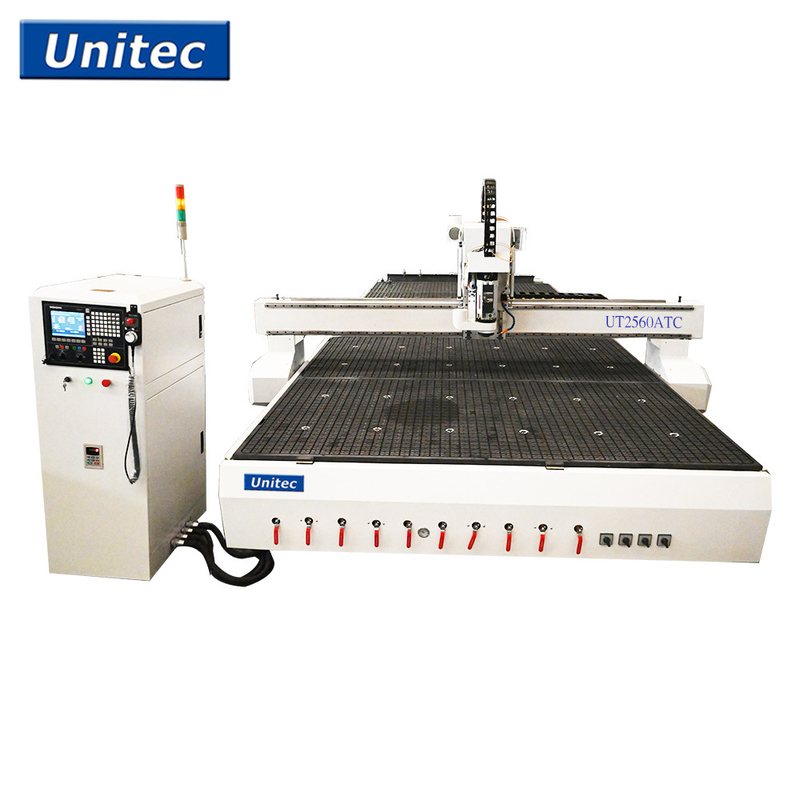

Large Format Automatic Tool Changer 9kw Atc Cnc Machine

Large Format Automatic Tool Changer 9kw Atc Cnc Machine
Large Format Automatic Tool Changer 9kw Atc Cnc Machine Large Format Automatic Tool Changer 9kw Atc Cnc Machine Large Format Automatic Tool Changer 9kw Atc Cnc Machine

Large Image :  Large Format Automatic Tool Changer 9kw Atc Cnc Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2560ATC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Steel pipe and plywood
Delivery Time: 20 working days
Detailed Product Description
Working Size: 2500mm X 6200mm Z Max Working Size: 220mm
Spindle: 9KW Italy HSD ATC Spindle Table: Vacuum Table With 4 Pcs Of Vacuum Pumps
Motor: Japan Yaskawa Servo Motor Tool Changer: Linear ATC
Controller: Ncstudio
High Light:

9kw atc cnc machine

,

automatic tool changer atc cnc machine

,

cnc router with automatic tool changer

  1. Applications and Materials
  2. Furniture Industry: wood door,cabinet,classic furniture,panel furniture,etc
  3. Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc
  4. Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel



Highlights

       Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine,

      ensure the machine running stability



       Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting

       strength ensure non deformation under high speed running.



Various of table styles makes convenient clamping materials and improves overall production efficiency



Equipped with automatically materials locating system, improve the efficiency of materials clamping and solve the accuracy problem of processing obverse and reverse side of the material



Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.



Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.



       Main configurations adopts imported accessories which will ensure the overall running performance



Strict compliance with CE electrical standards for circuit design and production, and all Parts have safe and reliable protection device.



XYZ Travel Size 2520X6200X220mm
Max Working Size 2500X6000X220mm
Table Size 2520X6200mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm
Max Travel Speed 40000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio or Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 4200KG
Overall Dimension 7000X3000X1900mm



Large Format Automatic Tool Changer 9kw Atc Cnc Machine 0Large Format Automatic Tool Changer 9kw Atc Cnc Machine 1Large Format Automatic Tool Changer 9kw Atc Cnc Machine 2Large Format Automatic Tool Changer 9kw Atc Cnc Machine 3Large Format Automatic Tool Changer 9kw Atc Cnc Machine 4
