4 X 4 Atc Cnc Router Machine For Acrylic Solid Wood Pvc Mdf

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

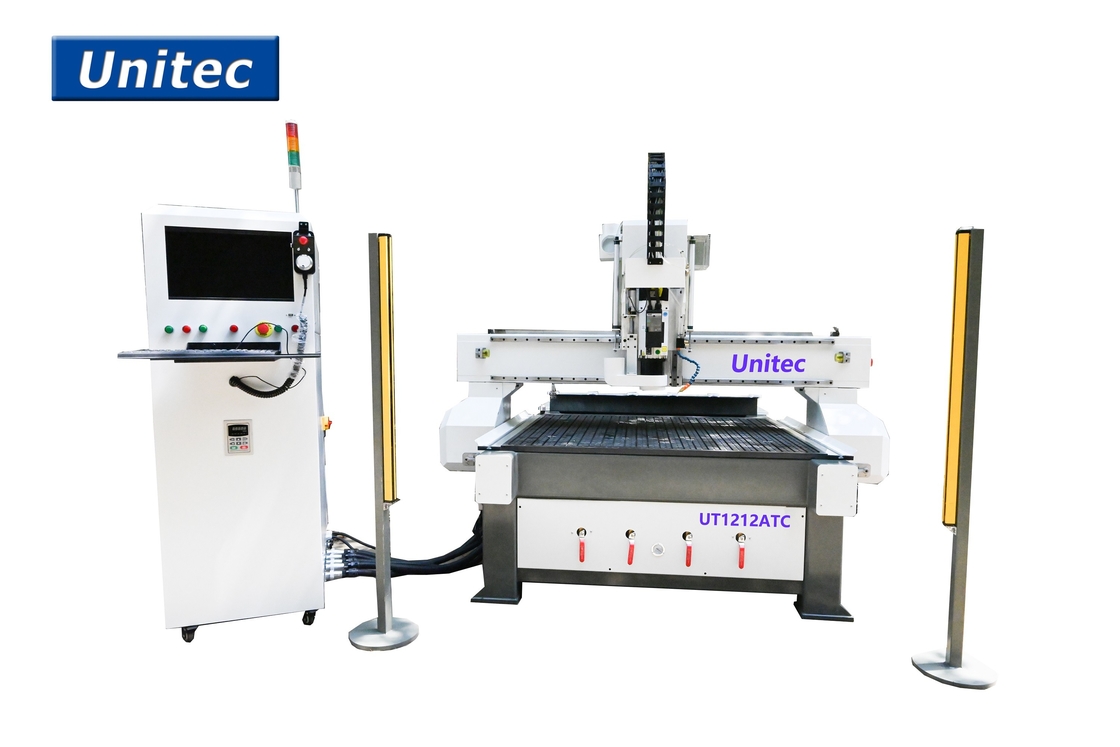

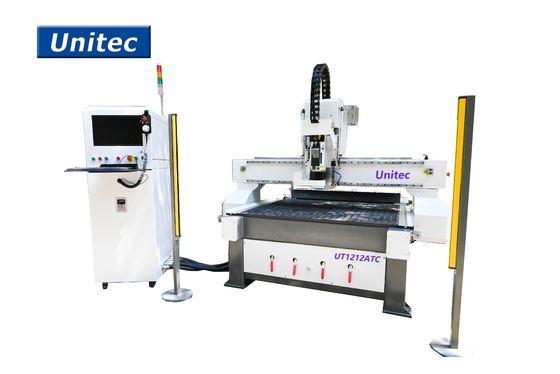

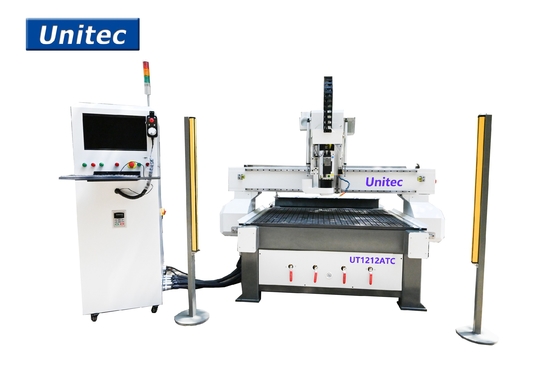

4 X 4 Atc Cnc Router Machine For Acrylic Solid Wood Pvc Mdf

4 X 4 Atc Cnc Router Machine For Acrylic Solid Wood Pvc Mdf
4 X 4 Atc Cnc Router Machine For Acrylic Solid Wood Pvc Mdf 4 X 4 Atc Cnc Router Machine For Acrylic Solid Wood Pvc Mdf

Large Image :  4 X 4 Atc Cnc Router Machine For Acrylic Solid Wood Pvc Mdf

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1212ATC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: steel pipe and plywood
Delivery Time: 20 working days
Detailed Product Description
Working Size: 1200mm X 1200mm Z Travel Height: 220mm
Spindle: 9KW Italy HSD ATC Spindle Table: Vacuum Table With 4 Zoons
Linear Guide: Taiwan CSK Motor: Taiwan Delta Servo Motor
Controller: Nustudio
High Light:

4 x 4 atc cnc router machine

,

mdf atc cnc router machine

,

atc 4x4 cnc wood router

Applications and Materials



Furniture Industry: wood door,cabinet,classic furniture,panel furniture,etc

Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc

Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel



Highlights



Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability

Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.

Various of table styles makes convenient clamping materials and improves overall production efficiency

Equipped with automatically materials locating system, improve the efficiency of materials clamping and solve the accuracy problem of processing obverse and reverse side of the material

Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.

Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.

Main configurations adopts imported accessories which will ensure the overall running performance

Strict compliance with CE electrical standards for circuit design and production, and all

Parts have safe and reliable protection device.







XYZ Travel Size 1350 X 1350 X 220mm
Max Working Size 1200X1200X220mm
Table Size 1300X1300mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm
Max Travel Speed 40000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio or Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1500KG
Overall Dimension 2550X2220X1900mm





4 X 4 Atc Cnc Router Machine For Acrylic Solid Wood Pvc Mdf 04 X 4 Atc Cnc Router Machine For Acrylic Solid Wood Pvc Mdf 14 X 4 Atc Cnc Router Machine For Acrylic Solid Wood Pvc Mdf 24 X 4 Atc Cnc Router Machine For Acrylic Solid Wood Pvc Mdf 3
