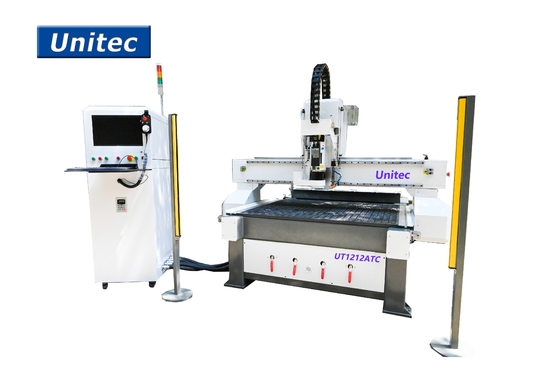

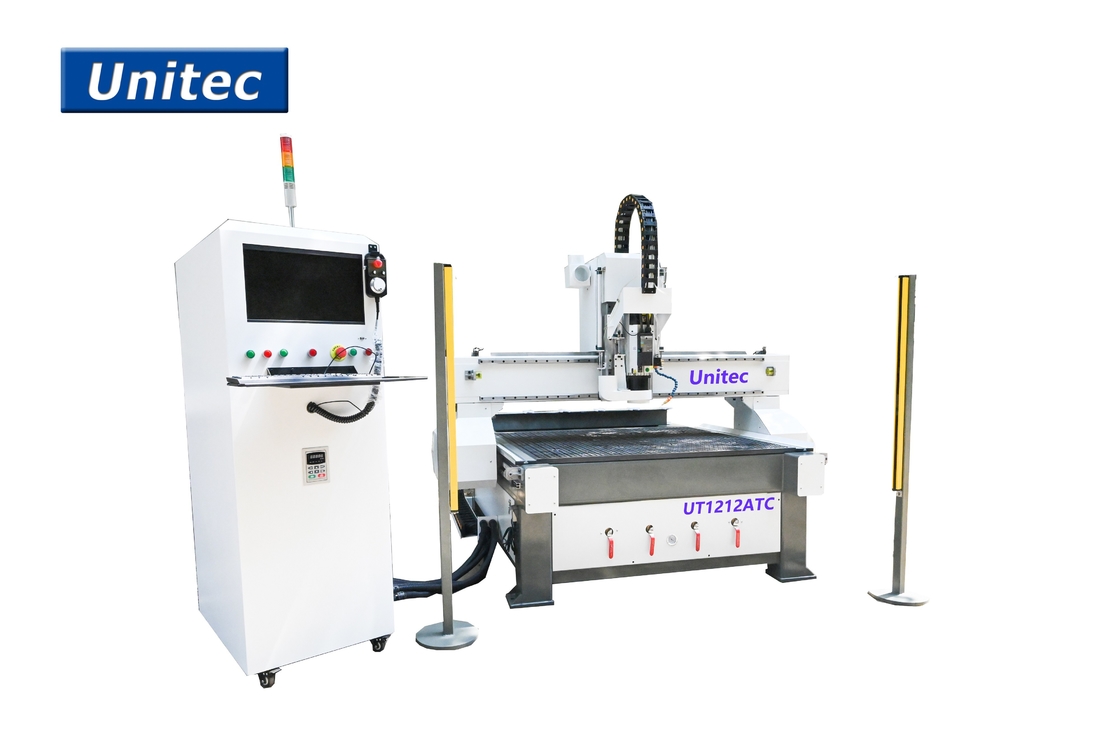

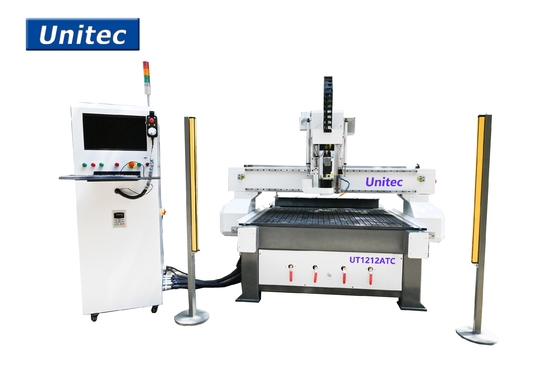

UT1212ATC 1200mm X 1200mm ATC CNC Woodworking Router Machine For Wood MDF PVC
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1212ATC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | steel pipe and plywood |
| Delivery Time: | 20 working days |
|
Detail Information |
|||
| Working Size: | 1200mm X 1200mm | Z Travel Height: | 220MM |
|---|---|---|---|
| Spindle: | 9KW Italy HSD ATC Spindle | Table: | Vacuum Table With 4.8KW Pump |
| Motor: | Taiwan Delta Servo Motor | Linear Guide: | Taiwan CSK Linear Guide |
| Tool Changer: | Linear Tool Changer | Controller: | Ncstudio Controller |
| High Light: | ATC woodworking router machine,1200x1200mm woodworking router machine,mdf woodworking router machine |
||
Product Description
Applications and Materials
Furniture Industry: wood door,cabinet,classic furniture,panel furniture,etc
Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc
Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel
Highlights
Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
Various of table styles makes convenient clamping materials and improves overall production efficiency
Equipped with automatically materials locating system, improve the efficiency of materials clamping and solve the accuracy problem of processing obverse and reverse side of the material
Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.
Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
Main configurations adopts imported accessories which will ensure the overall running performance
Strict compliance with CE electrical standards for circuit design and production, and all
Parts have safe and reliable protection device.
| XYZ Travel Size | 1350 X 1350 X 220mm |
| Max Working Size | 1200X1200X220mm |
| Table Size | 1300X1300mm |
| Transmission Type | XY rack/Z ball screw |
| Guide Rail | Linear Guide |
| Table Type | vacuum |
| Vacuum Pump | 7.5KW water recycle cool pump or 4.8KW air pump |
| Spindle Power | 9KW China ATC spindle or Italy HSD ATC spindle |
| Tool Changer | Linear Tool Changer |
| Spindle Speed | 24000rpm |
| Max Travel Speed | 40000mm/min |
| Max Work Speed | 20000mm/min |
| Motor | AC servo motor |
| Work Voltage | AC380V 50HZ |
| Controller System | Ncstudio or Syntec |
| Processing Accuracy | ±0.05mm |
| Repeat Positioning Accuracy | ±0.01mm |
| File Format | G code or PLT |
| Overall Weight | 1500KG |
| Overall Dimension | 2550X2220X1900mm |
