4 X 8 Feet Oscillating Knife Sign Making Cnc Router For Foam Pvc Board

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

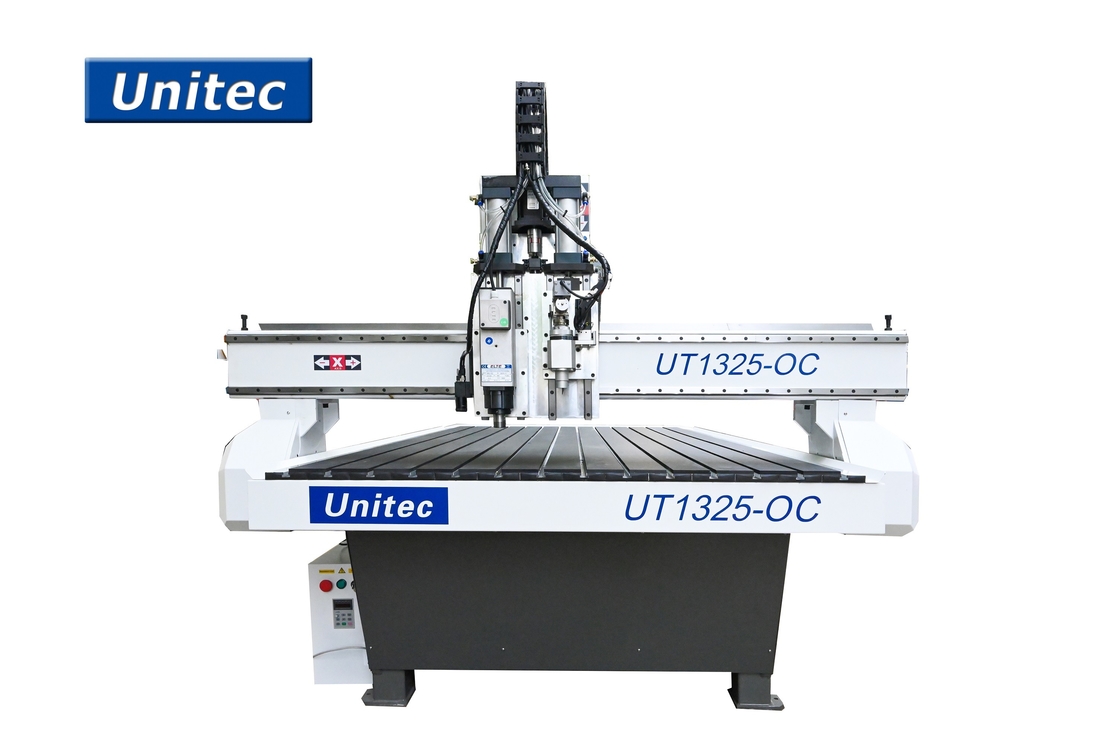

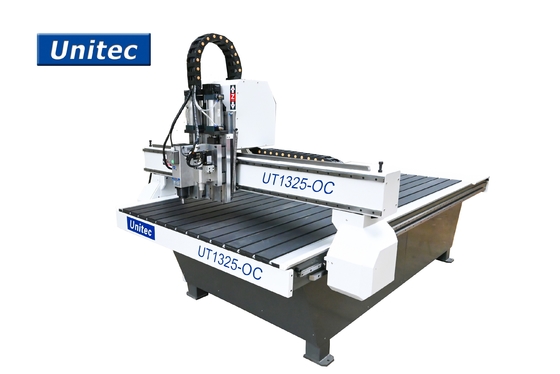

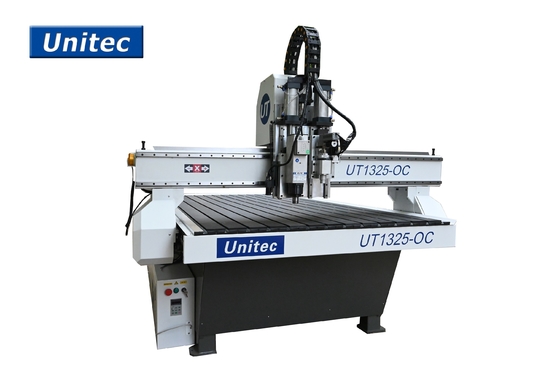

4 X 8 Feet Oscillating Knife Sign Making Cnc Router For Foam Pvc Board

4 X 8 Feet Oscillating Knife Sign Making Cnc Router For Foam Pvc Board
4 X 8 Feet Oscillating Knife Sign Making Cnc Router For Foam Pvc Board 4 X 8 Feet Oscillating Knife Sign Making Cnc Router For Foam Pvc Board 4 X 8 Feet Oscillating Knife Sign Making Cnc Router For Foam Pvc Board

Large Image :  4 X 8 Feet Oscillating Knife Sign Making Cnc Router For Foam Pvc Board

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325-OC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Plywood and Steel pipe
Detailed Product Description
Working Size: 1300mm X 2500mm Spindle: 2.2kw Italy Elte Spindle
Oscillating Knife: Leyu Oscillating With CCD Camera Table: T Slot
Motor: Easy Servo Controller: Leyu Controller
High Light:

4x8 sign making cnc router

,

oscillating knife cnc wood router 4x8

,

4x8ft sign making cnc router

Applications and Materials



Sign Industry: Signs, KT Board, PVC, foam, plastic, leather, EVA, corrugated panel, etc.



Highlights



1. Strong machine frame with 8mm thick steel pipe

2. High power spindle for hard material processing

3. Stable performance and long life electric parts

4. High resolution CCD camera

5. Friendly using controller





Max Working Size

1300X2500X120mm
Table Size 1400X2500mm
Transmission Type  XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power

3KW China water cool or 5.6KW Italy Elte spindle


Spindle Speed 24000/18000rpm
CCD Camera Leyu CCD camera

Max Travel Speed

14000mm/min

Max Processing Speed

12000mm/min
Motor

Stepper or Servo


Work Voltage AC380V 50HZ

Controller System

Leyu Controller

Processing Accuracy

±0.05mm

Repeat Positioning Accuracy

±0.01mm
File Format G code or PLT
 Overall Weight 1100KG

Overall Dimension

1950X3000X1600mm
