7.5KW Pump Woodworking CNC Router Machine With Durability For Sign Making

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

7.5KW Pump Woodworking CNC Router Machine With Durability For Sign Making

7.5KW Pump Woodworking CNC Router Machine With Durability For Sign Making
7.5KW Pump Woodworking CNC Router Machine With Durability For Sign Making 7.5KW Pump Woodworking CNC Router Machine With Durability For Sign Making

Large Image :  7.5KW Pump Woodworking CNC Router Machine With Durability For Sign Making

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2030

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Plywood + steel pipe
Supply Ability: 100 sets per month
Detailed Product Description
Working Size: 2000mm X 3000mm Spindle: 5.6kw Italy Elte
Table: T Slots With Thick Aluminum Profile Motor: Hybrid Motor
Guide Rail: Taiwan CSK Controller: Ncstudio
High Light:

Woodworking CNC Router for sign making

,

7.5KW Pump Woodworking CNC Router

,

Woodworking CNC Router with durability

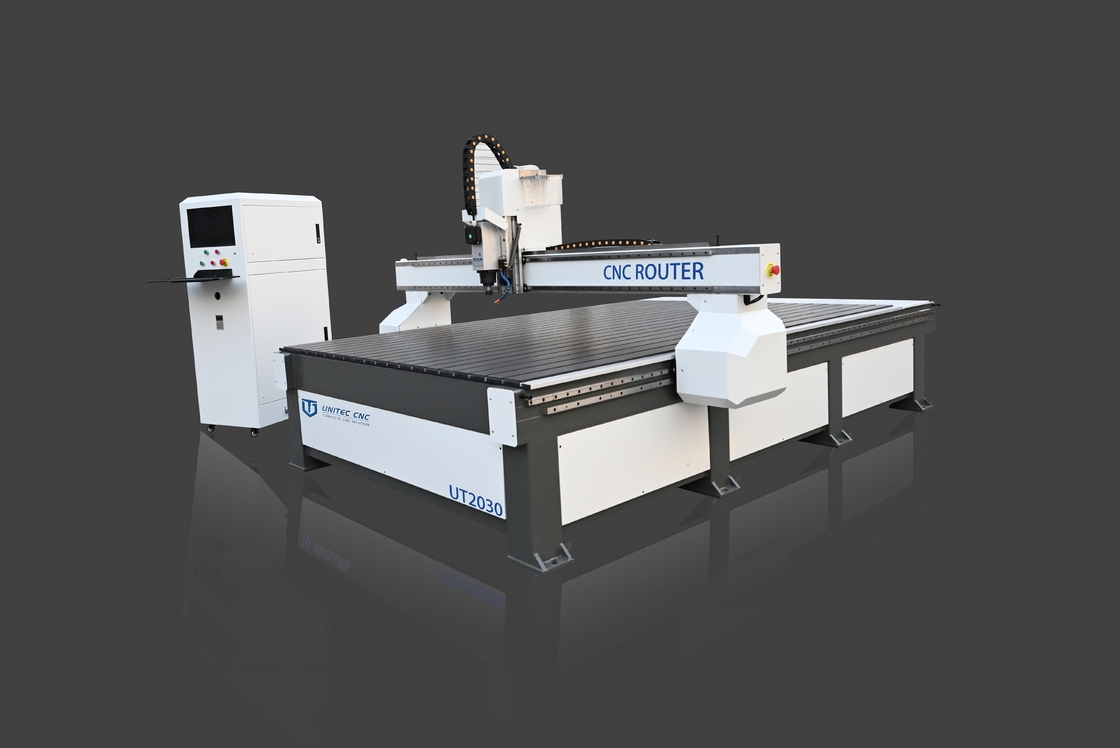

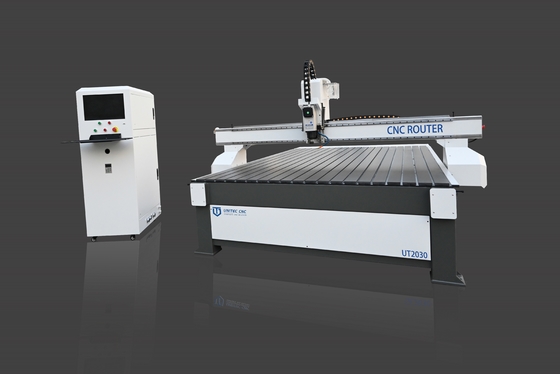

With the UT2030 CNC router, you get a number of features standard with the machine that you normally only get when you buy much more expensive CNC routers. It’s all because of Unitec unique manufacturing processes that keep high quality affordable.

The UT2030 features a heavy, all-steel tube frame that ensures durability. It also makes your CNC machine more rigid, which reduces vibration and improves routing quality.  A three-axis motion control system gives you tight control over routing quality for precision and quality cutting your customers will love.

With our UT2030, you can cut a variety of materials, including plastic, wood, foam, and composite materials. While it can work for a wide variety of applications, the most common are for sign making, woodworking, and marine part fabrication.



XYZ Travel Size 2050X3050X200mm
Max Working Size 2000X3000X150mm
Table Size 2050X3000mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T slot
Vacuum Pump 7.5KW blower pump or 4.8KW air pump
Spindle Power 5.6KW Italy Air cool spindle
Spindle Speed 18000rpm
Max Travel Speed 30000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio or DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 2200KG
Overall Dimension 2500X3700X1900mm
