DSP 3 Axis Woodworking CNC Wood Door Making Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

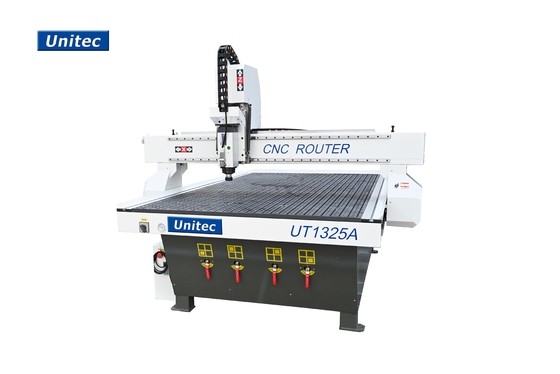

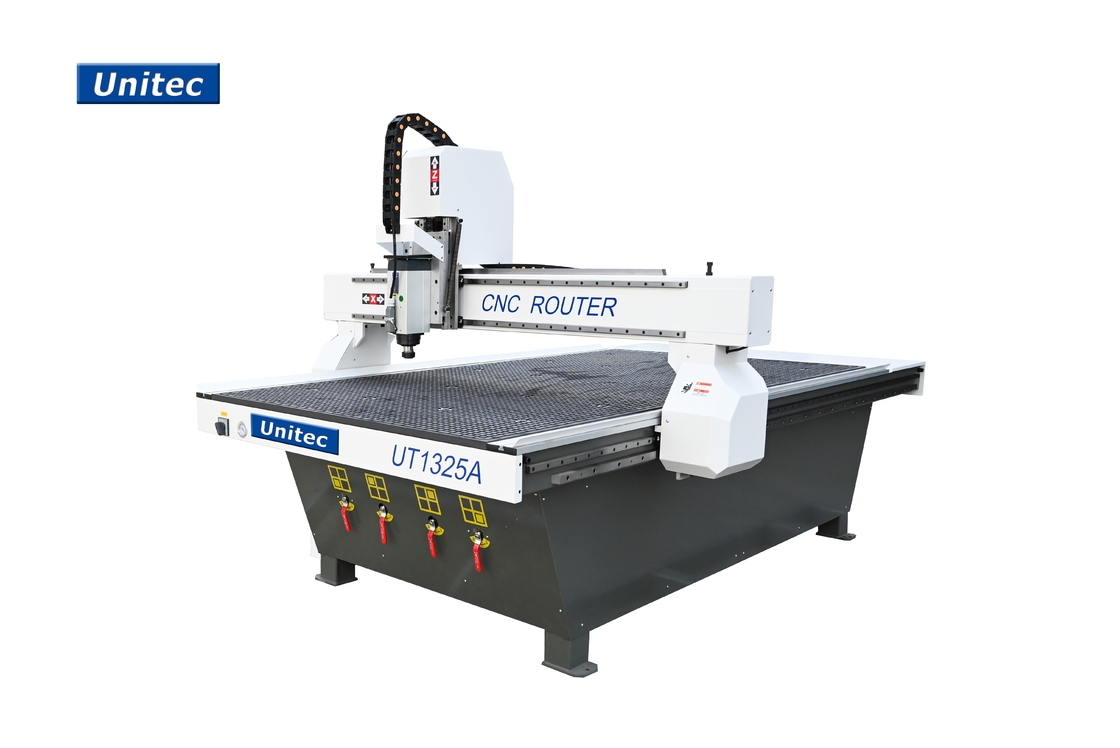

DSP 3 Axis Woodworking CNC Wood Door Making Router Machine

DSP 3 Axis Woodworking CNC Wood Door Making Router Machine
DSP 3 Axis Woodworking CNC Wood Door Making Router Machine DSP 3 Axis Woodworking CNC Wood Door Making Router Machine

Large Image :  DSP 3 Axis Woodworking CNC Wood Door Making Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: steel pipe+plywood
Supply Ability: 100 units per month
Detailed Product Description
Working Size: 1300mm X 2500mm Spindle: 5.6kw Italy Elte Spindle
Table: Vacuum Table Controller: DSP
High Light:

CNC Wood Door Making Machine

,

DSP Woodworking CNC Router Machine

,

3 Axis Woodworking CNC Router

UT1325A



Description

CNC Wood Door Making machine is a 3 axis cnc router machine for cabinet door making with T-slot vacuum table. Table size 5x10ft is big enough for common Polywood or MDF Engravng & Cutting; It fixes the workpieces more firmly, saves time and improves production efficiency. CNC Wood Door Making machine is Equipped with original Italy HSD spindle, it ensures the CNC wood router have a high speed and quality.



Features

1. CNC Wood Door Making machine is equipped with original Italy ELTE spindle, and it ensures the high speed and quality of this CNC wood router.

2. With a heavy-duty frame and gantry, it makes the machine run more stably.

3. Adopting big stepper motors, it makes the machine has a longer service life.

4. Adopting DSP control system, and it is very easy to learn and operate.




XYZ Travel Size 1320X2520X150mm
Max Working Size 1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Style Vacuum Table
Vacuum Pump 7.5KW water recycle pump/ 4.8kw air cool pump
Spindle Power 4.5kw China Air Cool Spindle/ 5.6KW Italy Air Cool Spindle
Spindle Speed 18000rpm/24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 15000mm/min
Motor China Easy Servo/ Stepper motor
Work Voltage AC380V 50HZ
Control System Ncstudio/ DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1300KG
Overall Dimension 1950X3000X1600mm





DSP 3 Axis Woodworking CNC Wood Door Making Router Machine 0DSP 3 Axis Woodworking CNC Wood Door Making Router Machine 1
