Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: steel pipe+plywood
Supply Ability: 100 units per month
Get Best Price Contact Now

Detail Information

Working Size: 1300mm X 2500mm Spindle: 6kw Italy HSD Spindle
Table: Vacuum Table Controller: Ncstudio
Guide Rail: Taiwan CSK
High Light:

CNC Wood Router Machine For Furniture

,

50HZ Woodworking CNC Router Machine

,

CNC Router With Italy HSD Spindle

Product Description

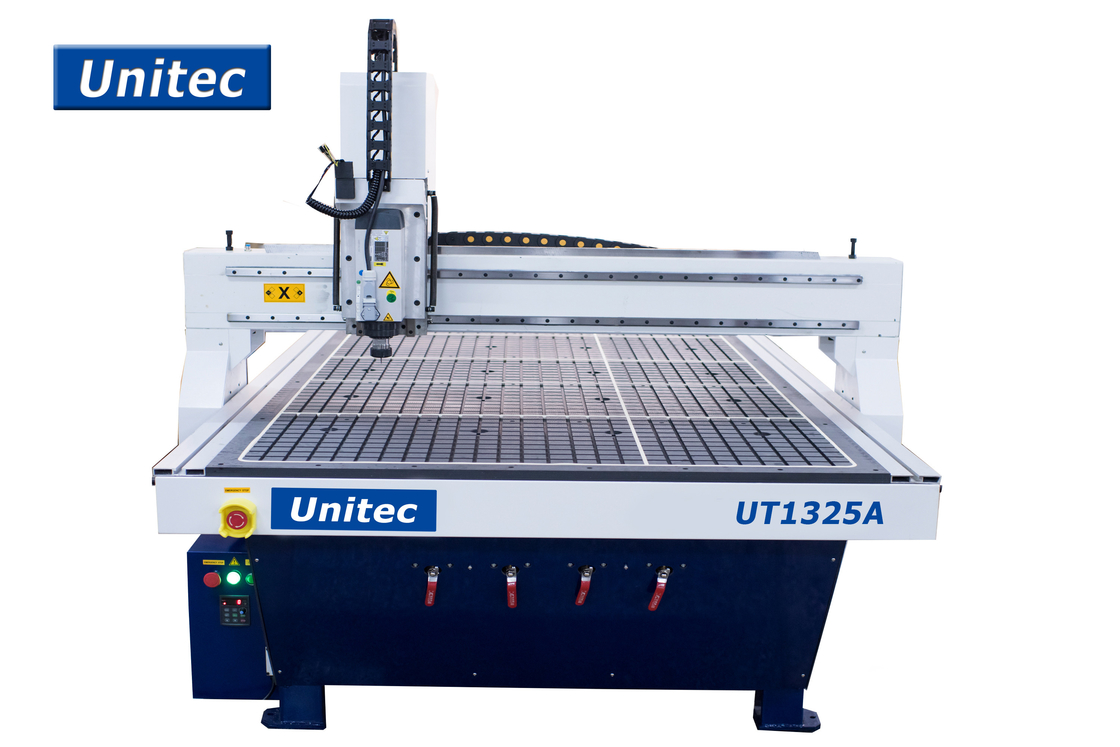

UT1325A



Description

CNC Wood machine is a 3 axis cnc router machine with 1300mm X 2500mm working size for doors, furnitures making with vacuum table. Table size 4 X 8ft is big enough for common Polywood or MDF Engravng & Cutting; It fixes the workpieces more firmly, saves time and improves production efficiency. CNC Wood Door Making machine is Equipped with original Italy HSD spindle, it ensures the CNC wood router have a high speed and quality.



Features

1. CNC Wood machine is equipped with original Italy HSD spindle, and it ensures the high speed and quality of this CNC wood router.

2. With a heavy-duty frame and gantry, it makes the machine run more stably.

3. Adopting big stepper motors, it makes the machine has a longer service life.

4. Adopting DSP control system, and it is very easy to learn and operate.





Highlights



Integral welded Frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability



Various of table styles makes convenient clamping materials and improves overall production efficiency



 Smooth bottom surface, clear edge contour and fine processing quality.



Main configurations adopts imported accessories which will ensure the overall running performance

Strict compliance with CE electrical standards for circuit design and production, and all parts have safe

and reliable protection device.









XYZ Travel Size 1320X2520X150mm
Max Working Size 1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Style Vacuum Table
Vacuum Pump 7.5KW water recycle pump/ 4.8kw air cool pump
Spindle Power 4.5kw China Air Cool Spindle/ 5.6KW Italy Air Cool Spindle
Spindle Speed 18000rpm/24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 15000mm/min
Motor China Easy Servo/ Stepper motor
Work Voltage AC380V 50HZ
Control System Ncstudio/ DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1300KG
Overall Dimension 1950X3000X1600mm
