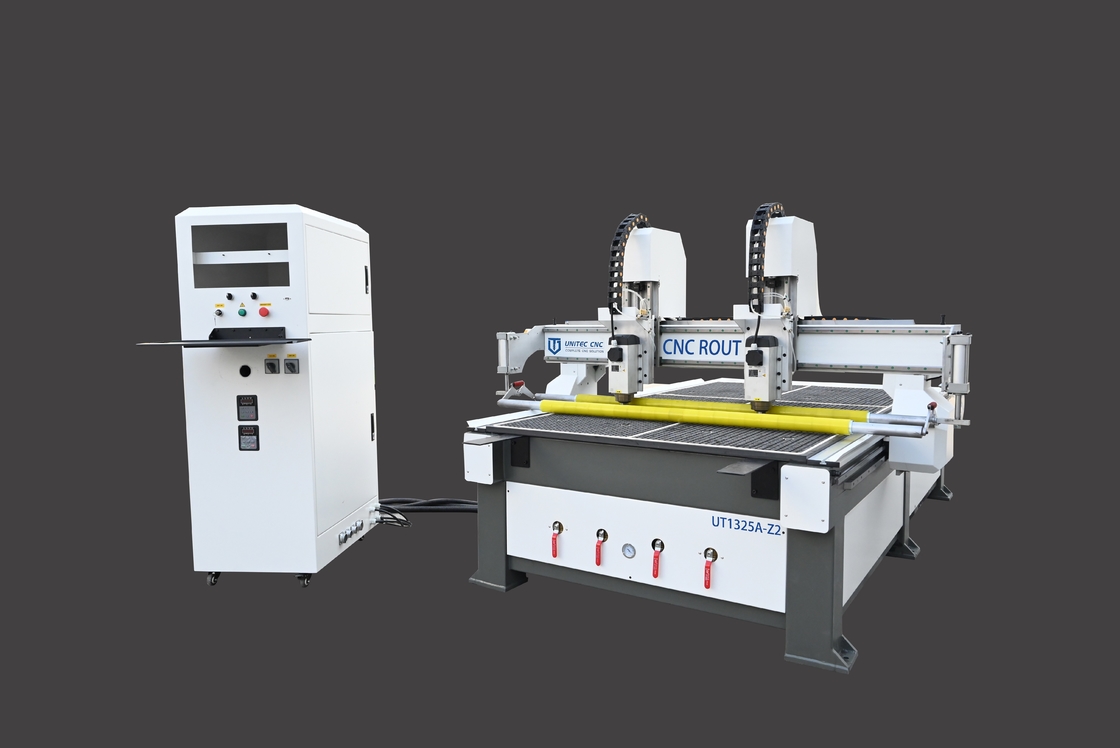

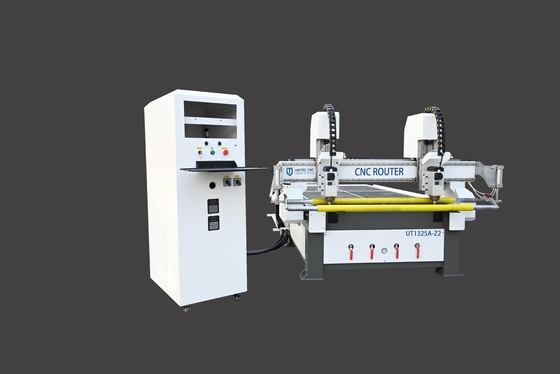

Ncstudio Multi Heads Woodworking CNC Router Machine CNC Wood Carving Machine

Ncstudio Multi Heads Woodworking CNC Router Machine CNC Wood Carving Machine
Ncstudio Multi Heads Woodworking CNC Router Machine CNC Wood Carving Machine Ncstudio Multi Heads Woodworking CNC Router Machine CNC Wood Carving Machine

Large Image :  Ncstudio Multi Heads Woodworking CNC Router Machine CNC Wood Carving Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325-Z2

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: steel pipe+plywood
Supply Ability: 100 units per month
Detailed Product Description
Working Size: 1300mm X 2500mm Spindle: 2 X 6KW China Air Cool Spindle
Table: Vacuum Table Controller: Ncstudio
High Light:

CNC Wood Carving Router Machine

,

Ncstudio CNC Wood Router Machine

,

Multi Heads Woodworking CNC Router Machine

UT1325-Z2



Description

This is a multi-spindle CNC engraving machine with 2 spindles. The 2 spindles can only work together for the same or symmetrical work, which greatly saves the time for mass production and also improves the production efficiency.



Features

1.Designed with an high power spindle, machine can cut thick materials.

2.The distance between the spindle is fixed and cannot be adjusted, which is the best choice for mass production.

3.Adopts the important linear square orbit, which has the features of stable working, high precision, and long lifetime. All parameters can be customized according to the customers’ processing requirements like working area.





Highlights



Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability



Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.



Various of table styles makes convenient clamping materials and improves overall production efficiency



Equipped with automatically materials locating system, improve the efficiency of materials clamping and solve the accuracy problem of processing obverse and reverse side of the material



Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.



Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.



Main configurations adopts imported accessories which will ensure the overall running performanceStrict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.




XYZ Travel Size 1300 X 2500X 200mm
Working Size 1300 X 2500X 200mm
Table Size 1350 X 2600mm
Transmission Type XY rack/Z ball screw
Guide Rail Taiwan CSK Linear guide
Table Type Vacuum
Vacuum pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power China 6KW Air Cool Spindle
Spindle Speed 18000rpm
Max Travel Speed 30000mm/min
Max Working Speed 20000mm/min
Motor Easy Servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G Code/PLT Code
Overall Weight 1300KG
