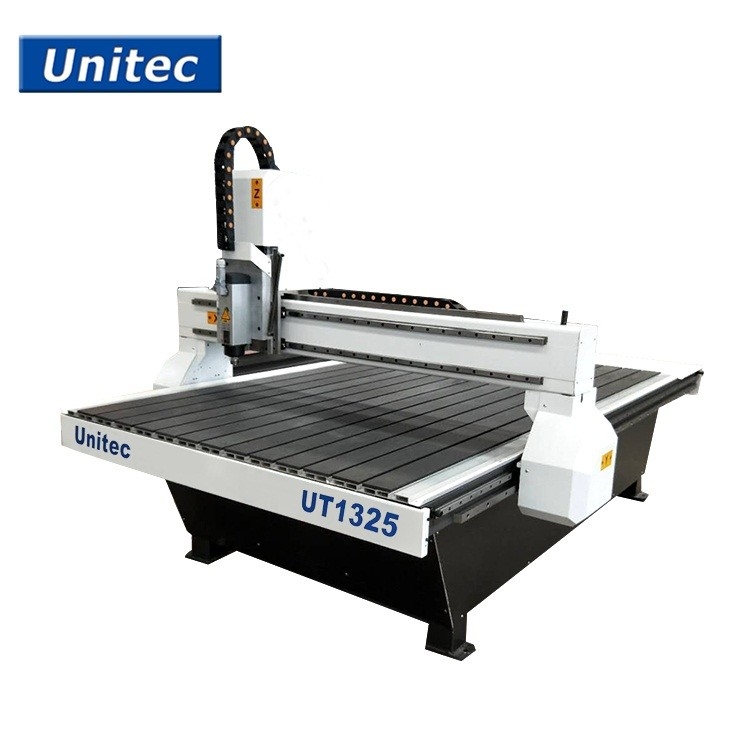

Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine

Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine
Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine

Large Image :  Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Working Area (X*Y*Z): 1300X2500X150mm Processing Accuracy: 0.01mm
Repositioning Accuracy: 0.05mm Spindle: 2.2KW China Air Cool Spindle / 5.6kw Italy ELTE
Spindle Rotating Speed: 24000RPM Max Moving Speed: 8000mm/min
Working Speed: 6000mm/min Guideway: Linear Guideway/cylindrical Guideway
High Light:

8000mm/Min 1325 CNC Router Machine

,

24000rpm 1325 CNC Router Machine

,

1100KG 1325 CNC Router Machine

 8000mm/Min 1325 CNC Router Machine For Acrylic PVC



XYZ Travel Size

1320X2520X150mm



Max Working Size

1300X2500X120mm
Table Size 1400X2500mm
Transmission Type  XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power

3KW/5.6EL 3KW China water cool

5.6KW Italy Elte spindle


Spindle Speed 24000/18000rpm

Max Travel Speed

14000mm/min



Max Processing Speed

12000mm/min
Motor

Stepper or Servo


Work Voltage AC380V 50HZ

Controller System

Ncstudio or DSP



Processing Accuracy

±0.05mm

Repeat Positioning Accuracy

±0.01mm
File Format G CODE /PLT; G code or PLT
Overall Weight 1100KG

Overall Dimension

1950X3000X1600mm



Applications and Materials



Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc



Sign Industry: Channel Letter,Mini Letter,signs, etc



Crafts Industry: solid wood,artificial stone,marble,sandstone,aluminum composite panel,bamboo,soft metal,PVC,acrylic,double color board, etc



Highlights



1.Integral welded Frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability

2.Various of table styles makes convenient clamping materials and improves overall production efficiency

3.Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.

4. Main configurations adopts imported accessories which will ensure the overall running performance

5.Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.



Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine 0Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine 1Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine 2Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine 3Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine 4Acrylic PVC 8000mm/min 24000rpm 1325 CNC Router Machine 5
