AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

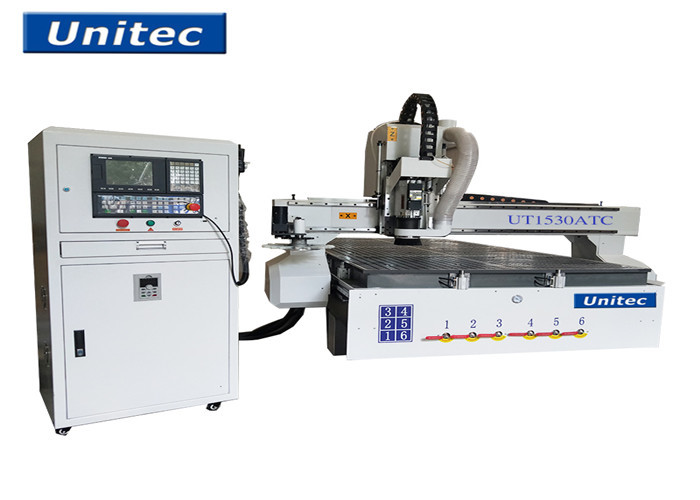

AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine

AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine
AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine

Large Image :  AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1530ATC

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: Plywood crate with steel pipe
Delivery Time: 15 - 25 working days
Detailed Product Description
Working Size: 1500X3000X220mm Work Voltage: AC380V 50HZ
Table Size: 1500X3100mm Guide Rail: Linear Guide
Table Type: Vacuum Spindle Power: 9KW Italy HSD ATC Spindle
Motor: Japan Yaskawa AC Servo Motor Spindle Speed: 24000rpm
Tool Changer: Linear Tool Changer With 8 Tool Positions
High Light:

UT1530 ATC CNC Router Machine

,

AC380V ATC CNC Router Machine

,

UT1530 3d wood carving machine

UT1530 cnc router machine sculpture wood carving cnc router machine



1. Furniture: ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
2. Other wooden products: stereo box, computer desk, musical instruments, etc.
3. Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
4. Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.


Applications and Material

Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc

Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc

ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel



Working Size 1500X3000X220mm
Table Size 1500X3100mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear guide
Table Type Vacuum
Vacuum pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9KW Italy HSD ATC Spindle
Spindle Speed 24000rpm
Max Travel Speed 30000mm/min
Max Working Speed 20000mm/min
Motor Japan Yaskawa AC Servo Motor
Work Voltage AC380V 50HZ
Controller System Ncstudio / Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G Code/PLT Code
Overall Weight 2200KG
Overall Dimension 2250X3500X1900mm


Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.

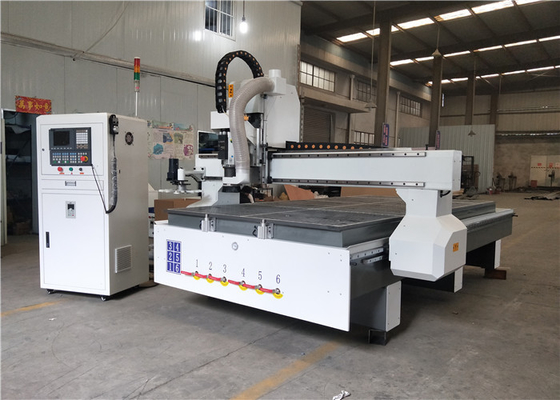

AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine 0AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine 1

AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine 2AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine 3

AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine 4AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine 5AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine 6AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine 7AC380V 50HZ UT1530 24000rpm ATC CNC Router Machine 8
